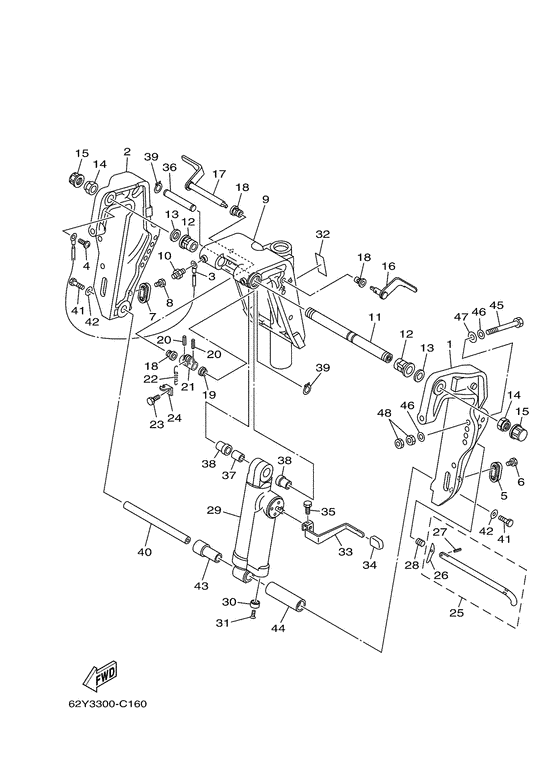

Bracket 1 Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 2004
- Model
- F50A
- Model code
- 62Y
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
62Y-43111-00-4D Bracket, Clamp 1 |
62Y-43111-00-4D |
US $171.32 |
||
| replacement | |||||
|
01
|
01
62Y-43111-00-8D Bracket, Clamp 1 |
62Y-43111-00-8D |
from US $171.32 |
||
|
02
|
02
62Y-43112-00-4D Bracket, Clamp 2 |
62Y-43112-00-4D |
US $171.32 |
||
| replacement | |||||
|
02
|
02
62Y-43112-00-8D Bracket, Clamp 2 |
62Y-43112-00-8D |
from US $171.32 |
||
|
03
|
03
63D-82148-00-00 Wire, Lead 4 |
63D-82148-00-00 |
US $17.43 |
||
| replacement | |||||
|
03
|
03
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
04
|
04
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
05
|
05
65W-45251-00-00 Anode |
65W-45251-00-00 |
from US $12.35 |
||
|
06
|
06
90101-06020-00 Bolt |
90101-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
07
|
07
65W-45251-00-00 Anode |
65W-45251-00-00 |
from US $12.35 |
||
|
08
|
08
90101-06020-00 Bolt |
90101-06020-00 |
from US $1.56 |
||
| replacement | |||||
|
08
|
08
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
09
|
09
63D-43311-13-4D Bracket, Swivel 1 |
63D-43311-13-4D |
US $461.03 |
||
| replacement | |||||
|
09
|
09
63D-43311-13-8D Bracket, Swivel 1 |
63D-43311-13-8D |
from US $461.03 |
||
|
10
|
10
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
11
|
11
63D-43131-01-00 Bolt, Clamp Bracket |
63D-43131-01-00 |
from US $70.74 |
||
|
12
|
12
90386-22M15-00 Bush |
90386-22M15-00 |
from US $6.06 |
||
|
13
|
13
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $4.11 |
||
|
14
|
14
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
14
|
14
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
15
|
15
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
16
|
16
6H5-43181-03-00 Lever, Tilt Stop 1 |
6H5-43181-03-00 |
from US $32.66 |
||
|
17
|
17
6H5-43185-03-00 Lever, Tilt Stop 2 |
6H5-43185-03-00 |
from US $39.51 |
||
|
18
|
18
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
19
|
19
90386-10025-00 Bush |
90386-10025-00 |
from US $3.54 |
||
|
20
|
20
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.70 |
||
|
21
|
21
6G5-43148-10-00 Collar, Distance |
6G5-43148-10-00 |
US $3.09 |
||
| replacements | |||||
|
21
|
21
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.91 |
||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90506-20011-00
Spring, Tension
|
90506-20011-00 |
— | ||
|
23
|
23
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
23
|
23
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
24
|
24
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
25
|
25
688-43160-01-00 Tilt Rod Assy |
688-43160-01-00 |
from US $26.94 |
||
|
26
|
26
688-43165-00-00 Plate, Tilt Lock |
688-43165-00-00 |
from US $7.23 |
||
|
27
|
27
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
28
|
28
90502-16M02-00 Spring, Conical |
90502-16M02-00 |
from US $3.68 |
||
|
29
|
29
62Y-43170-10-4D Shock Absorber Assy |
62Y-43170-10-4D |
US $1,491.60 |
||
| replacements | |||||
|
29
|
29
62Y-43107-12-8D Shock Absorber Sub-Assy |
62Y-43107-12-8D |
US $820.44 |
||
|
29
|
29
62Y-43170-10-8D Shock Absorber Assy |
62Y-43170-10-8D |
US $1,491.60 |
||
|
30
|
30
663-45251-00-00 Anode |
663-45251-00-00 |
from US $8.82 |
||
|
31
|
31
90152-06M01-00 Screw, Countersunk |
90152-06M01-00 |
from US $2.69 |
||
|
32
|
32
63D-43691-00-00 Etiquette, Relevage |
63D-43691-00-00 |
from US $4.11 |
||
|
33
|
33
69D-43631-00-00 Lever, Tilt |
69D-43631-00-00 |
US $44.63 |
||
|
34
|
34
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
35
|
35
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
35
|
35
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
36
|
36
69D-43126-00-00 Pin, Upper Shock Mount |
69D-43126-00-00 |
US $23.94 |
||
|
37
|
37
903-87160-03-00 Collar |
903-87160-03-00 |
US $4.11 |
||
|
38
|
38
903-87160-04-00 Collar |
903-87160-04-00 |
from US $4.68 |
||
|
39
|
39
93410-16006-00 Circlip |
93410-16006-00 |
from US $1.42 |
||
| replacement | |||||
|
39
|
39
99009-16400-00 Circlip(13T) |
99009-16400-00 |
from US $1.56 |
||
|
40
|
40
62Y-43818-00-00 Pin, Lower Shock Mount |
62Y-43818-00-00 |
from US $68.67 |
||
|
41
|
41
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
42
|
42
90201-08M04-00 Washer, Plate |
90201-08M04-00 |
from US $2.69 |
||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
90387-18002-00 Collar |
90387-18002-00 |
from US $7.63 |
||
|
44
|
44
90387-18003-00 Collar |
90387-18003-00 |
from US $10.48 |
||
|
45
|
45
90101-12M65-00 Bolt |
90101-12M65-00 |
US $18.99 |
||
|
46
|
46
92995-12200-00 Washer |
92995-12200-00 |
from US $2.09 |
||
| replacement | |||||
|
46
|
46
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.70 |
||
|
47
|
47
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
48
|
48
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
