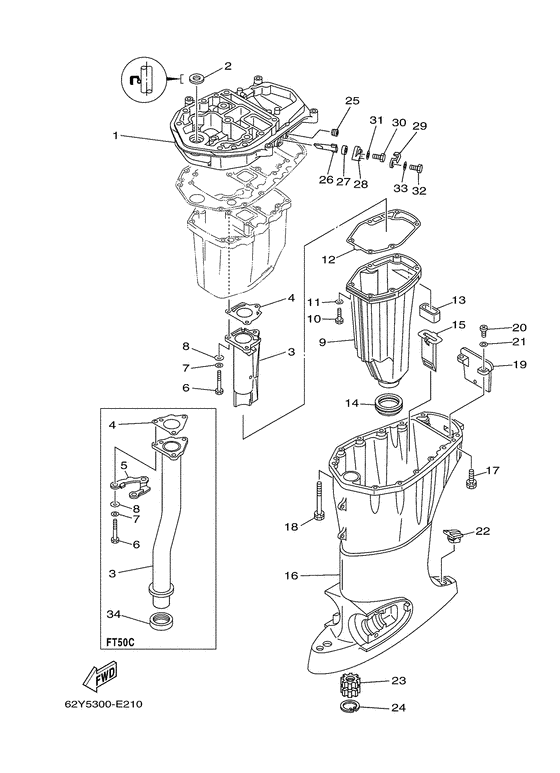

Upper casing Diagram Yamaha F50 E(D/T/H)L/X
- Year
- 2006
- Model
- F50A
- Model code
- 62Y
- Year
- 2006
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (General) (020)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
69W-41137-02-94 Guide, ExhaustF50a |
69W-41137-02-94 |
from US $333.12 |
||
|
02
|
02
93103-18011-00 Oil Seal |
93103-18011-00 |
from US $24.14 |
||
|
03
|
03
67C-41131-00-5B Manifold, Ext. 1F50a |
67C-41131-00-5B |
US $186.52 |
||
| replacement | |||||
|
03
|
03
67C-41131-00-CA Manifold, Ext. 1F50a |
67C-41131-00-CA |
from US $204.51 |
||
|
04
|
04
67C-41133-00-00 Gasket, Exhaust Manifold 1F50a |
67C-41133-00-00 |
from US $8.05 |
||
|
06
|
06
97075-06050-00 Bolt |
97075-06050-00 |
US $3.26 |
||
| replacement | |||||
|
06
|
06
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
07
|
07
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
90201-06015-00 Washer, Plate |
90201-06015-00 |
from US $1.94 |
||
|
09
|
09
62Y-14711-00-5B Muffler 1F50a |
62Y-14711-00-5B |
US $131.80 |
||
| replacement | |||||
|
09
|
09
62Y-14711-00-CA Muffler 1F50a |
62Y-14711-00-CA |
US $131.80 |
||
|
10
|
10
97075-06025-00 Bolt |
97075-06025-00 |
US $1.35 |
||
| replacement | |||||
|
10
|
10
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
62Y-41134-01-00 Gasket, Exhaust Manifold |
62Y-41134-01-00 |
US $12.91 |
||
| replacement | |||||
|
12
|
12
6BG-41134-00-00 Gasket, Exhaust Manifold |
6BG-41134-00-00 |
from US $12.91 |
||
|
13
|
13
62Y-45127-00-00 Seal |
62Y-45127-00-00 |
US $5.13 |
||
|
14
|
14
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $20.94 |
||
|
16
|
16
62Y-45111-21-4D Casing, Upper |
62Y-45111-21-4D |
US $644.16 |
||
| replacement | |||||
|
16
|
16
62Y-45111-21-8D Casing, Upper |
62Y-45111-21-8D |
from US $644.16 |
||
|
17
|
17
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
17
|
17
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
18
|
18
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
19
|
19
62Y-45151-00-00 Cover, Upper Casing |
62Y-45151-00-00 |
from US $4.68 |
||
|
20
|
20
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
21
|
21
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
22
|
22
6H3-45155-00-00 Cap |
6H3-45155-00-00 |
US $2.41 |
||
| replacements | |||||
|
22
|
22
6C5-45155-00-00 Cap |
6C5-45155-00-00 |
from US $2.64 |
||
|
22
|
22
6C5-45155-01-00 CAP |
6C5-45155-01-00 |
US $2.64 |
||
|
22
|
22
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
22
|
22
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
23
|
23
69W-45318-00-00 Bushing, Drive Shaft |
69W-45318-00-00 |
from US $35.65 |
||
|
24
|
24
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $6.06 |
||
|
26
|
26
62Y-11325-00-00 Anode |
62Y-11325-00-00 |
from US $8.60 |
||
|
27
|
27
66M-11328-00-00 Grommet, Anode |
66M-11328-00-00 |
US $1.94 |
||
|
28
|
28
66M-11327-00-94 Cover, Anode |
66M-11327-00-94 |
from US $5.24 |
||
|
29
|
29
66M-12535-00-00 Plate |
66M-12535-00-00 |
from US $3.54 |
||
|
30
|
30
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
31
|
31
929-95056-00-00
Washer, Plate
|
929-95056-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
32
|
32
97013-06020-00 Bolt |
97013-06020-00 |
from US $1.42 |
||
|
33
|
33
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
