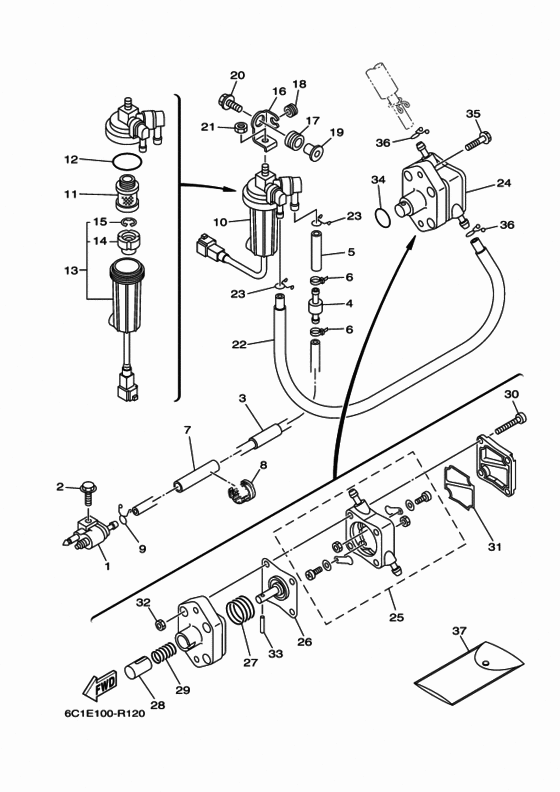

Fuel Diagram Yamaha F60 E(T/H)L/X
- Year
- 2017
- Model
- F60F
- Model code
- 6C5E
- Year
- 2017
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 60
- Sales region
- Canada (270)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
| replacement | |||||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
2
|
2
97595-06525-00 Bolt |
97595-06525-00 |
US $1.21 |
||
| replacements | |||||
|
2
|
2
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
2
|
2
97E95-06525-00 Bolt, Hexagon W/w Deep Recess |
97E95-06525-00 |
from US $1.18 |
||
|
3
|
3
6C5-24313-20-00 Pipe 3 |
6C5-24313-20-00 |
from US $34.14 |
||
|
4
|
4
67F-24377-00-00 Pipe, Joint 2 |
67F-24377-00-00 |
from US $6.80 |
||
|
5
|
5
904-45130-20-00 Hose (L40) |
904-45130-20-00 |
US $5.76 |
||
|
6
|
6
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
6
|
6
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
6
|
6
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
7
|
7
90446-13M11-00 Hose (L65) |
90446-13M11-00 |
from US $1.98 |
||
|
8
|
8
90464-13227-00 Clamp |
90464-13227-00 |
from US $1.81 |
||
|
9
|
9
90467-09M17-00 Clip |
90467-09M17-00 |
US $1.84 |
||
| replacement | |||||
|
9
|
9
90467-09M09-00 Clip(6K8) |
90467-09M09-00 |
from US $1.71 |
||
|
10
|
10
6D8-24560-01-00 Filter Assy |
6D8-24560-01-00 |
from US $93.26 |
||
|
11
|
11
6D8-24563-00-00 Element, Filter |
6D8-24563-00-00 |
US $16.37 |
||
| replacement | |||||
|
11
|
11
6D8-WS24A-00-00 Element, Filter |
6D8-WS24A-00-00 |
from US $16.37 |
||
|
12
|
12
6D8-24564-00-00 Gasket |
6D8-24564-00-00 |
from US $6.66 |
||
|
13
|
13
6D8-24562-00-00
Cup, Filter
|
6D8-24562-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6D8-WS24B-00-00 Cup, Filter (With Tag) |
6D8-WS24B-00-00 |
from US $90.49 |
||
|
14
|
14
6D8-24469-00-00 Float, Water Level |
6D8-24469-00-00 |
from US $8.22 |
||
|
15
|
15
6D8-24519-00-00 Clip |
6D8-24519-00-00 |
from US $1.56 |
||
|
16
|
16
6C5-24566-11-00 Bracket, Filter |
6C5-24566-11-00 |
from US $8.64 |
||
|
17
|
17
904-80160-13-00 Grommet |
904-80160-13-00 |
from US $1.98 |
||
|
18
|
18
90480-10M58-00 Grommet |
90480-10M58-00 |
from US $4.53 |
||
|
19
|
19
903-87080-95-00 Collar |
903-87080-95-00 |
from US $9.49 |
||
|
20
|
20
901-19081-48-00 Bolt, With Washer |
901-19081-48-00 |
from US $2.55 |
||
|
21
|
21
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
21
|
21
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
21
|
21
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
22
|
22
6C5-24311-00-00 Pipe, Fuel 1 |
6C5-24311-00-00 |
from US $14.78 |
||
|
23
|
23
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.91 |
||
|
24
|
24
6C5-24410-00-00 Fuel Pump Assy |
6C5-24410-00-00 |
from US $145.40 |
||
|
25
|
25
6C5-24415-00-00 Body 4 |
6C5-24415-00-00 |
from US $33.56 |
||
|
26
|
26
62Y-24411-02-00 Diaphragm |
62Y-24411-02-00 |
from US $78.30 |
||
|
27
|
27
62Y-24423-00-00 Spring, Diaphragm |
62Y-24423-00-00 |
from US $7.08 |
||
|
28
|
28
62Y-13131-00-00 Plunger |
62Y-13131-00-00 |
from US $45.56 |
||
|
29
|
29
62Y-24454-00-00 Spring |
62Y-24454-00-00 |
from US $6.94 |
||
|
30
|
30
62Y-24444-01-00 Screw |
62Y-24444-01-00 |
US $4.39 |
||
| replacement | |||||
|
30
|
30
62Y-24444-09-00 Screw |
62Y-24444-09-00 |
from US $3.37 |
||
|
31
|
31
6C5-24471-00-00 Diaphragm |
6C5-24471-00-00 |
US $20.26 |
||
|
32
|
32
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
33
|
33
62Y-24374-01-00 Pin |
62Y-24374-01-00 |
from US $6.80 |
||
|
34
|
34
932-1024M-79-00
O-Ring
|
932-1024M-79-00 |
— | ||
| replacements | |||||
|
34
|
34
932-10242-35-00 O-Ring |
932-10242-35-00 |
from US $3.04 |
||
|
34
|
34
93210-24800-00 O-Ring |
93210-24800-00 |
from US $2.29 |
||
|
35
|
35
97595-06530-00 Bolt, With Washer |
97595-06530-00 |
US $0.79 |
||
| replacement | |||||
|
35
|
35
97E95-06530-00 Bolt, Hexagon W/w De |
97E95-06530-00 |
from US $0.79 |
||
|
36
|
36
90467-10M04-00 Clip |
90467-10M04-00 |
from US $2.91 |
||
|
37
|
37
6C5-28100-00-00 Tool KitAP |
6C5-28100-00-00 |
US $55.13 |
||
