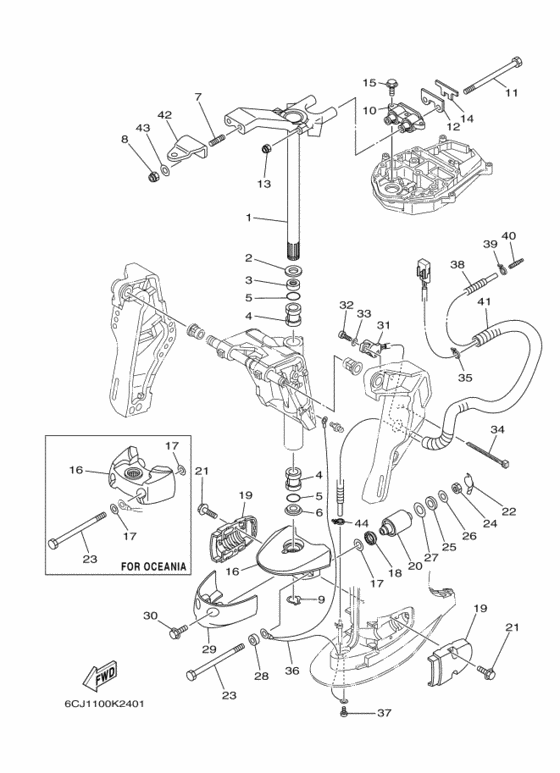

Bracket 2 Diagram Yamaha F70 ETL/X
- Year
- 2011
- Model
- F70A
- Model code
- 6CJ1
- Year
- 2011
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 70
- Sales region
- Canada (030)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69W-42510-01-8D Steering Bracket Assy |
69W-42510-01-8D |
from US $355.07 |
||
|
2
|
2
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
3
|
3
90386-30M78-00 Bush |
90386-30M78-00 |
from US $3.04 |
||
|
4
|
4
90386-30M77-00 Bush |
90386-30M77-00 |
from US $10.44 |
||
|
5
|
5
93210-29M94-00 O-Ring |
93210-29M94-00 |
from US $2.36 |
||
|
6
|
6
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
7
|
7
90116-10038-00 Bolt, Stud |
90116-10038-00 |
US $7.65 |
||
| replacement | |||||
|
7
|
7
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
8
|
8
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
8
|
8
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
9
|
9
93410-28M06-00 Circlip |
93410-28M06-00 |
from US $7.23 |
||
|
10
|
10
6CJ-44514-00-94 Mount Damper, Upper Side |
6CJ-44514-00-94 |
US $115.50 |
||
| replacement | |||||
|
10
|
10
6CJ-44514-00-00 Mount Damper, Upper Side |
6CJ-44514-00-00 |
from US $115.50 |
||
|
11
|
11
90101-08M15-00 Bolt |
90101-08M15-00 |
US $14.73 |
||
| replacement | |||||
|
11
|
11
90109-08229-00 Bolt |
90109-08229-00 |
from US $14.84 |
||
|
12
|
12
6CJ-44526-00-00 Plate |
6CJ-44526-00-00 |
from US $14.17 |
||
|
13
|
13
90185-08045-00 Nut, Self-Locking |
90185-08045-00 |
US $1.52 |
||
| replacement | |||||
|
13
|
13
901-85080-18-00 Nut, Self-Locking |
901-85080-18-00 |
from US $1.52 |
||
|
14
|
14
6CJ-44533-00-00 Damper, Upper Mount Rubber |
6CJ-44533-00-00 |
from US $7.23 |
||
|
15
|
15
97575-08530-00 Bolt, With Washer |
97575-08530-00 |
US $1.98 |
||
|
16
|
16
69W-44551-00-8D Housing, Lower Mount Rubber 1FOR CAN |
69W-44551-00-8D |
from US $120.06 |
||
|
17
|
17
90201-12M16-00 Washer, PlateFOR CAN |
90201-12M16-00 |
from US $2.70 |
||
|
18
|
18
6C5-43885-00-00 Grommet |
6C5-43885-00-00 |
US $1.98 |
||
|
19
|
19
6C5-44552-00-8D Housing, Lower Mount Rubber 2 |
6C5-44552-00-8D |
from US $46.97 |
||
|
20
|
20
69W-44555-00-94 Mount Damper, Lower Side |
69W-44555-00-94 |
US $53.47 |
||
| replacement | |||||
|
20
|
20
69W-44555-00-00 Mount Damper, Lower Side |
69W-44555-00-00 |
from US $53.47 |
||
|
21
|
21
901-19081-31-00 Bolt, With Washer |
901-19081-31-00 |
US $5.38 |
||
| replacements | |||||
|
21
|
21
97575-08530-00 Bolt, With Washer |
97575-08530-00 |
US $1.98 |
||
|
21
|
21
97E75-08530-00 Bolt, Hexagon W/w De |
97E75-08530-00 |
from US $1.98 |
||
|
22
|
22
6CJ-44575-00-00 Damper, Lower Mount Rubber |
6CJ-44575-00-00 |
from US $9.49 |
||
|
23
|
23
90109-12MA3-00 Bolt |
90109-12MA3-00 |
from US $27.32 |
||
|
24
|
24
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
|
25
|
25
90202-21100-00 Washer, Plate |
90202-21100-00 |
from US $7.77 |
||
|
26
|
26
90201-13M19-00 Washer, Plate |
90201-13M19-00 |
from US $6.74 |
||
|
27
|
27
90201-22M05-00 Washer, Plate |
90201-22M05-00 |
from US $4.96 |
||
|
28
|
28
6C6-43127-00-00 CollarFOR CAN |
6C6-43127-00-00 |
US $22.95 |
||
| replacement | |||||
|
28
|
28
903-87120-57-00 CollarFOR CAN |
903-87120-57-00 |
from US $12.47 |
||
|
29
|
29
67C-44553-00-8D Cover, Lower MountFOR CAN |
67C-44553-00-8D |
from US $42.55 |
||
|
30
|
30
90119-08100-00
Bolt, With Washer
FOR CAN |
90119-08100-00 |
— | ||
| replacement | |||||
|
30
|
30
5X6-23181-L0-00
Bolt, Hexagon Socket Head
FOR CAN |
5X6-23181-L0-00 |
— | ||
|
31
|
31
63D-83672-11-00 Trim Sender |
63D-83672-11-00 |
from US $197.77 |
||
|
32
|
32
97885-06016-00 Screw, Pan Head |
97885-06016-00 |
from US $1.70 |
||
| replacements | |||||
|
32
|
32
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
32
|
32
901-57060-09-00 Screw, Pan Head |
901-57060-09-00 |
US $2.55 |
||
|
33
|
33
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
90464-76001-00 Clamp |
90464-76001-00 |
from US $3.83 |
||
|
35
|
35
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
35
|
35
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
35
|
35
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
36
|
36
67C-82127-10-00 Wire, Lead 2 |
67C-82127-10-00 |
from US $16.15 |
||
|
37
|
37
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
38
|
38
6CJ-44385-00-00 Hose, Water 1 |
6CJ-44385-00-00 |
from US $31.17 |
||
|
39
|
39
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
39
|
39
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
39
|
39
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
40
|
40
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
41
|
41
90447-19009-00 Tube |
90447-19009-00 |
from US $6.71 |
||
|
42
|
42
65W-48511-10-00 Hook, Steering |
65W-48511-10-00 |
US $22.39 |
||
| replacement | |||||
|
42
|
42
65W-48511-01-00 Hook, Steering |
65W-48511-01-00 |
from US $22.39 |
||
|
43
|
43
90201-10120-00 Washer, Plate |
90201-10120-00 |
US $3.12 |
||
| replacement | |||||
|
43
|
43
90201-10049-00 Washer, Plate |
90201-10049-00 |
from US $2.75 |
||
|
44
|
44
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
44
|
44
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
44
|
44
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
