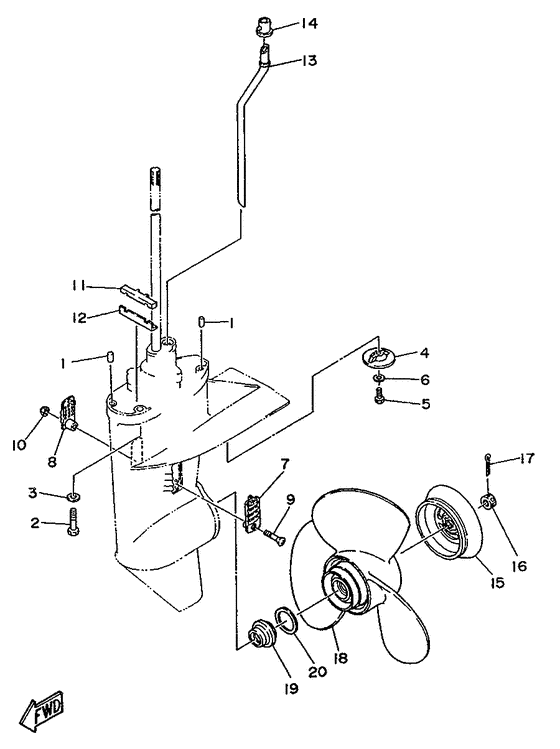

Lower casing. drive 2 Diagram Yamaha F8 MHS/L
- Year
- 1988
- Model
- F8A
- Model code
- 6J6
- Year
- 1988
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
02
|
02
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
02
|
02
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
02
|
02
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
03
|
03
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
04
|
04
683-45251-00-00 Anode |
683-45251-00-00 |
US $16.43 |
||
| replacement | |||||
|
04
|
04
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
05
|
05
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
05
|
05
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
05
|
05
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
07
|
07
6G8-45214-00-00 Cover, Water Inlet 1 |
6G8-45214-00-00 |
US $16.40 |
||
|
08
|
08
6G8-45215-00-00 Cover, Water Inlet 2 |
6G8-45215-00-00 |
US $16.40 |
||
|
09
|
09
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
09
|
09
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
10
|
10
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
11
|
11
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
12
|
12
682-45376-01-00 Guide, Seal Damper |
682-45376-01-00 |
from US $5.67 |
||
|
13
|
13
6G8-44361-10-00
Tube, Water 1
Ur |
6G8-44361-10-00 |
— | ||
|
13
|
13
6G8-44361-20-00
Tube, Water
Ur |
6G8-44361-20-00 |
— | ||
|
14
|
14
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
15
|
15
6G8-45986-00-00 Ring, Deflector |
6G8-45986-00-00 |
from US $27.91 |
||
|
16
|
16
90171-10M07-00 Nut, Castle |
90171-10M07-00 |
from US $10.63 |
||
|
17
|
17
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
17
|
17
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
18
|
18
6G8-45943-00-00 Propeller (3X11-3/4"x9-1/4"-R)Ur |
6G8-45943-00-00 |
from US $145.07 |
||
|
18
|
18
6G8-45945-00-00 Propeller(3X11-3/4"x12-1/4"-R)Ur |
6G8-45945-00-00 |
from US $145.07 |
||
|
18
|
18
6G8-45947-00-00 Propeller (3X11-3/4"x9-1/4"-R)Ur |
6G8-45947-00-00 |
from US $145.07 |
||
|
18
|
18
6G8-45941-00-00 Propeller (3X11" X 11-3/4"-R)Ur |
6G8-45941-00-00 |
from US $145.07 |
||
|
19
|
19
6G8-45987-00-00
Spacer
|
6G8-45987-00-00 |
— | ||
| replacement | |||||
|
19
|
19
6G8-45987-01-00
Spacer 1
|
6G8-45987-01-00 |
— | ||
|
20
|
20
90201-31MA3-00 Washer, Plate |
90201-31MA3-00 |
from US $2.69 |
||
