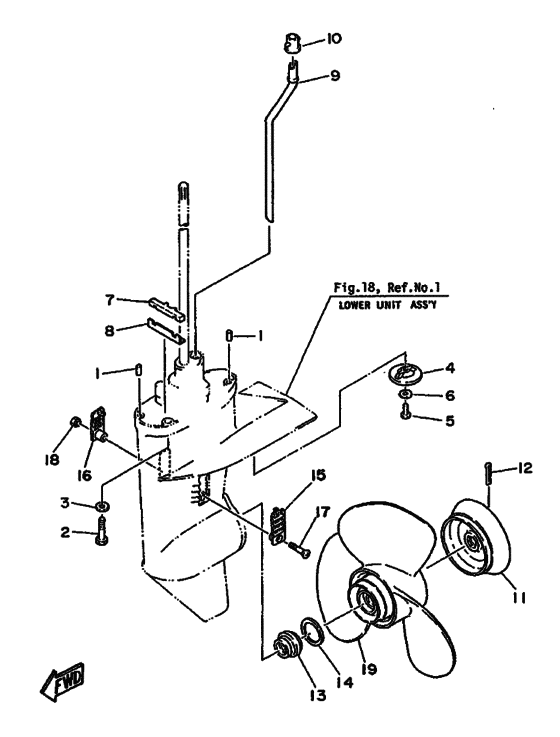

Lower casing & drive 2 Diagram Yamaha F8 MHS/L
- Year
- 1986
- Model
- F8A
- Model code
- 6J6
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
2
|
2
97375-08035-00 Bolt |
97375-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
2
|
2
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
2
|
2
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
3
|
3
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
4
|
4
683-45251-00-00 Anode |
683-45251-00-00 |
US $16.43 |
||
| replacement | |||||
|
4
|
4
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
5
|
5
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
8
|
8
682-45376-01-00 Guide, Seal Damper |
682-45376-01-00 |
from US $5.67 |
||
|
9
|
9
6G8-44361-10-00
Tube, Water 1
UR |
6G8-44361-10-00 |
— | ||
|
9
|
9
6G8-44361-20-00
Tube, Water
UR |
6G8-44361-20-00 |
— | ||
|
10
|
10
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
11
|
11
6G8-45616-00-00
Nut, Propeller
|
6G8-45616-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99017-35-00 Deflector Ring Assembly |
999-99017-35-00 |
US $68.65 |
||
|
12
|
12
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
12
|
12
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
13
|
13
6G8-45987-00-00
Spacer
|
6G8-45987-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6G8-45987-01-00
Spacer 1
|
6G8-45987-01-00 |
— | ||
|
14
|
14
90201-31M46-00
Washer, Plate
|
90201-31M46-00 |
— | ||
|
15
|
15
6G8-45214-00-00 Cover, Water Inlet 1 |
6G8-45214-00-00 |
US $16.40 |
||
|
16
|
16
6G8-45215-00-00 Cover, Water Inlet 2 |
6G8-45215-00-00 |
US $16.40 |
||
|
17
|
17
98180-05025-00 Screw, Oval Head |
98180-05025-00 |
US $2.55 |
||
| replacements | |||||
|
17
|
17
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
17
|
17
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
|
18
|
18
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
18
|
18
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
19
|
19
6G8-45941-00-00 Propeller (3X11" X 11-3/4"-R)UR |
6G8-45941-00-00 |
from US $145.07 |
||
|
19
|
19
6G8-45943-00-00 Propeller (3X11-3/4"x9-1/4"-R)UR |
6G8-45943-00-00 |
from US $145.07 |
||
|
19
|
19
6G8-45945-00-00 Propeller(3X11-3/4"x12-1/4"-R)UR |
6G8-45945-00-00 |
from US $145.07 |
||
