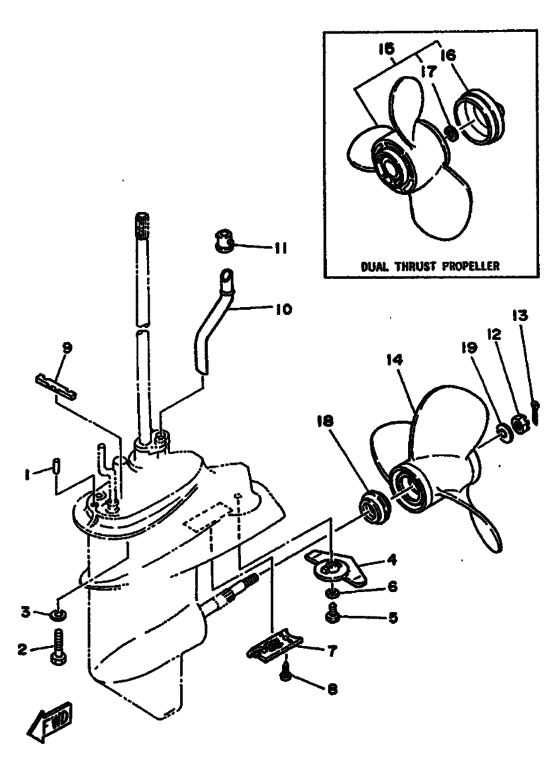

Lower casing & drive 2 Diagram Yamaha F8 M(E)HS/L
- Year
- 1990
- Model
- F8B
- Model code
- 6J7
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
2
|
2
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
2
|
2
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
2
|
2
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
3
|
3
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
4
|
4
6E8-45251-01-00 Anode |
6E8-45251-01-00 |
US $16.43 |
||
| replacement | |||||
|
4
|
4
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
5
|
5
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
5
|
5
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
5
|
5
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
6E7-45214-00-00 Cover, Water Inlet 1 |
6E7-45214-00-00 |
from US $6.38 |
||
|
8
|
8
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
9
|
9
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
10
|
10
6G9-44361-00-00
Tube, Water 1
UR |
6G9-44361-00-00 |
— | ||
|
10
|
10
6G8-44361-00-00
Tube, Water
UR |
6G8-44361-00-00 |
— | ||
|
11
|
11
626-44365-01-00 Damper, Water Seal 1UR |
626-44365-01-00 |
US $3.54 |
||
|
12
|
12
90171-10M01-00 Nut, CastleUR |
90171-10M01-00 |
from US $5.06 |
||
|
13
|
13
914-90300-20-00 Pin. CotterUR |
914-90300-20-00 |
US $1.25 |
||
| replacement | |||||
|
13
|
13
914-90300-25-00 Pin. CotterUR |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
13
|
13
914-90300-30-00 Pin. CotterUR |
914-90300-30-00 |
from US $1.25 |
||
|
13
|
13
914-90300-25-00 Pin. CotterUR |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
13
|
13
914-90300-30-00 Pin. CotterUR |
914-90300-30-00 |
from US $1.25 |
||
|
14
|
14
583-45949-00-EL
Propeller Assy
UR |
583-45949-00-EL |
— | ||
|
14
|
14
583-45947-00-EL
Propeller Assy
UR |
583-45947-00-EL |
— | ||
|
14
|
14
583-45945-00-EL
Propeller Assy
UR |
583-45945-00-EL |
— | ||
|
14
|
14
583-45952-00-EL
Propeller Assy
UR |
583-45952-00-EL |
— | ||
|
14
|
14
583-45943-00-EL
Propeller Assy
UR |
583-45943-00-EL |
— | ||
|
14
|
14
583-45941-00-EL
Propeller Assy
UR |
583-45941-00-EL |
— | ||
|
15
|
15
683-W4591-01-EL BoltBolt UR |
683-W4591-01-EL |
US $194.81 |
||
| replacement | |||||
|
15
|
15
683-W4591-02-00 Propeller (3X9-3/4 X8 -J)UR |
683-W4591-02-00 |
from US $194.81 |
||
|
16
|
16
6E7-45616-00-00
Nut, Propeller
|
6E7-45616-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99022-38-00
Nut, Propeller
|
999-99022-38-00 |
— | ||
|
17
|
17
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
|
18
|
18
6E8-45987-01-00
Spacer
|
6E8-45987-01-00 |
— | ||
|
19
|
19
902-0110M-01-00 Washer, Plate |
902-0110M-01-00 |
from US $3.04 |
||
