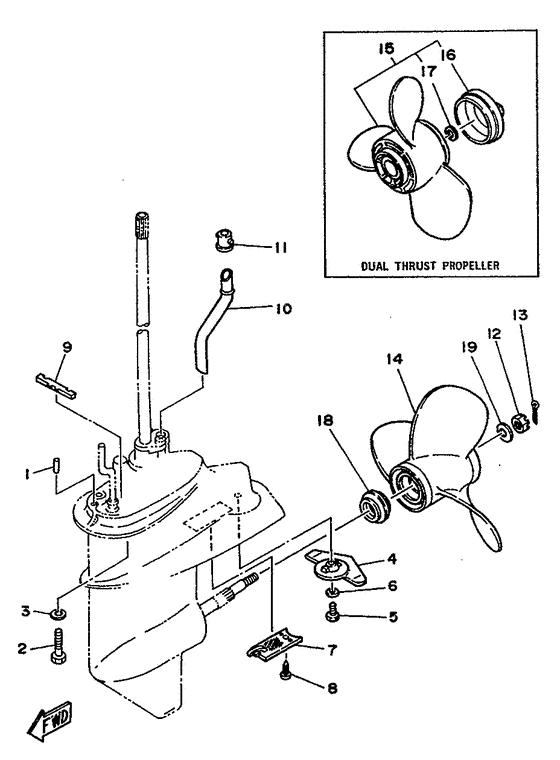

Lower casing. drive 2 Diagram Yamaha F8 M(E)HS/L
- Year
- 1990
- Model
- F8B
- Model code
- 6J7
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
02
|
02
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
02
|
02
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
02
|
02
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
03
|
03
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
04
|
04
6E8-45251-01-00 Anode |
6E8-45251-01-00 |
US $16.43 |
||
| replacement | |||||
|
04
|
04
6E8-45251-02-00 Anode |
6E8-45251-02-00 |
from US $10.58 |
||
|
05
|
05
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
05
|
05
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
05
|
05
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
07
|
07
6E7-45214-00-00 Cover, Water Inlet 1 |
6E7-45214-00-00 |
from US $6.38 |
||
|
08
|
08
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
09
|
09
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
10
|
10
6G8-44361-00-00
Tube, Water
Ur |
6G8-44361-00-00 |
— | ||
|
10
|
10
6G9-44361-00-00
Tube, Water 1
Ur |
6G9-44361-00-00 |
— | ||
|
11
|
11
626-44365-01-00 Damper, Water Seal 1Ur |
626-44365-01-00 |
US $3.54 |
||
|
12
|
12
90171-10M01-00 Nut, CastleUr |
90171-10M01-00 |
from US $5.06 |
||
|
13
|
13
914-90300-20-00 Pin. CotterUr |
914-90300-20-00 |
US $1.25 |
||
| replacement | |||||
|
13
|
13
914-90300-25-00 Pin. CotterUr |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
13
|
13
914-90300-30-00 Pin. CotterUr |
914-90300-30-00 |
from US $1.25 |
||
|
13
|
13
914-90300-25-00 Pin. CotterUr |
914-90300-25-00 |
from US $1.25 |
||
| replacement | |||||
|
13
|
13
914-90300-30-00 Pin. CotterUr |
914-90300-30-00 |
from US $1.25 |
||
|
14
|
14
583-45949-00-EL
Propeller Assy
Ur |
583-45949-00-EL |
— | ||
|
14
|
14
583-45952-00-EL
Propeller Assy
Ur |
583-45952-00-EL |
— | ||
|
14
|
14
583-45941-00-EL
Propeller Assy
Ur |
583-45941-00-EL |
— | ||
|
14
|
14
583-45943-00-EL
Propeller Assy
Ur |
583-45943-00-EL |
— | ||
|
14
|
14
583-45945-00-EL
Propeller Assy
Ur |
583-45945-00-EL |
— | ||
|
14
|
14
583-45947-00-EL
Propeller Assy
Ur |
583-45947-00-EL |
— | ||
|
15
|
15
683-W4591-01-EL BoltBolt Ur |
683-W4591-01-EL |
US $194.81 |
||
| replacement | |||||
|
15
|
15
683-W4591-02-00 Propeller (3X9-3/4 X8 -J)Ur |
683-W4591-02-00 |
from US $194.81 |
||
|
16
|
16
6E7-45616-00-00
Nut, Propeller
|
6E7-45616-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99022-38-00
Nut, Propeller
|
999-99022-38-00 |
— | ||
|
17
|
17
90201-10M02-00 Washer, Plate |
90201-10M02-00 |
from US $1.98 |
||
|
18
|
18
6E8-45987-01-00
Spacer
|
6E8-45987-01-00 |
— | ||
|
19
|
19
902-0110M-01-00 Washer, Plate |
902-0110M-01-00 |
from US $3.04 |
||
