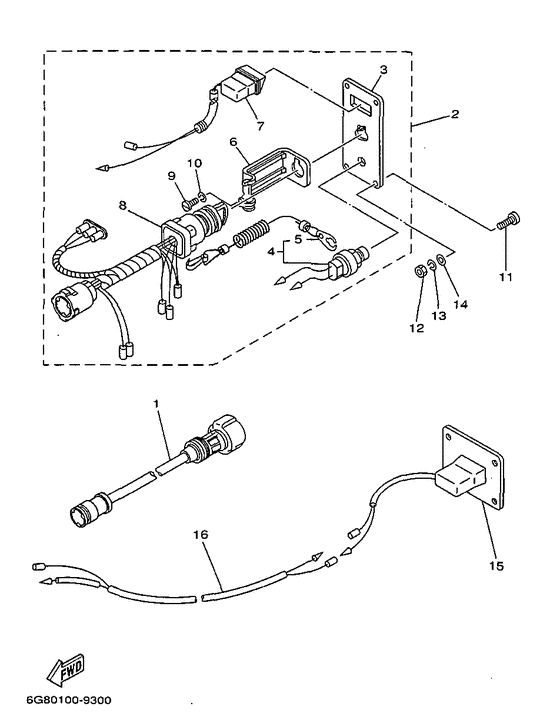

Electrical 3 Diagram Yamaha F8 M(E)HS/L
- Year
- 1999
- Model
- F8B
- Model code
- 6J7
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-82586-50-00 Extension, Wire Harness (5M)(ap l:5m (7p0) |
688-82586-50-00 |
US $215.53 |
||
|
02
|
02
6G8-82570-02-00
Panel Switch Assy
Ap |
6G8-82570-02-00 |
— | ||
| replacement | |||||
|
02
|
02
6G8-82570-04-00
Switch :ob
Ap |
6G8-82570-04-00 |
— | ||
|
03
|
03
6G8-82571-01-00
Panel, Switch
|
6G8-82571-01-00 |
— | ||
|
04
|
04
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
04
|
04
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
05
|
05
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
06
|
06
663-82581-01-00 Stay, Cord Clamp |
663-82581-01-00 |
from US $14.45 |
||
|
07
|
07
6G8-83582-01-00 Pilot Light Assy |
6G8-83582-01-00 |
US $47.17 |
||
|
08
|
08
6G8-82510-00-00
Main Switch Assy
|
6G8-82510-00-00 |
— | ||
| replacement | |||||
|
08
|
08
6G8-82510-02-00
Main Switch Assy
|
6G8-82510-02-00 |
— | ||
|
09
|
09
98903-04008-00 Screw, BindScrew, cylinder head |
98903-04008-00 |
US $1.21 |
||
| replacement | |||||
|
09
|
09
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
10
|
10
92903-04100-00 Washer |
92903-04100-00 |
from US $1.21 |
||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
90149-05M05-00 ScrewAp |
90149-05M05-00 |
from US $1.84 |
||
|
12
|
12
95380-05600-00 NutAp |
95380-05600-00 |
from US $1.42 |
||
|
13
|
13
92990-05100-00 Washer, SpringAp |
92990-05100-00 |
from US $1.21 |
||
|
14
|
14
92990-05600-00 Washer, PlateAp |
92990-05600-00 |
from US $1.07 |
||
|
15
|
15
6G8-83530-00-00
Pilot Light Assy
Ap |
6G8-83530-00-00 |
— | ||
|
16
|
16
6G8-82541-00-00 Wire, LeadAp |
6G8-82541-00-00 |
US $28.65 |
||
