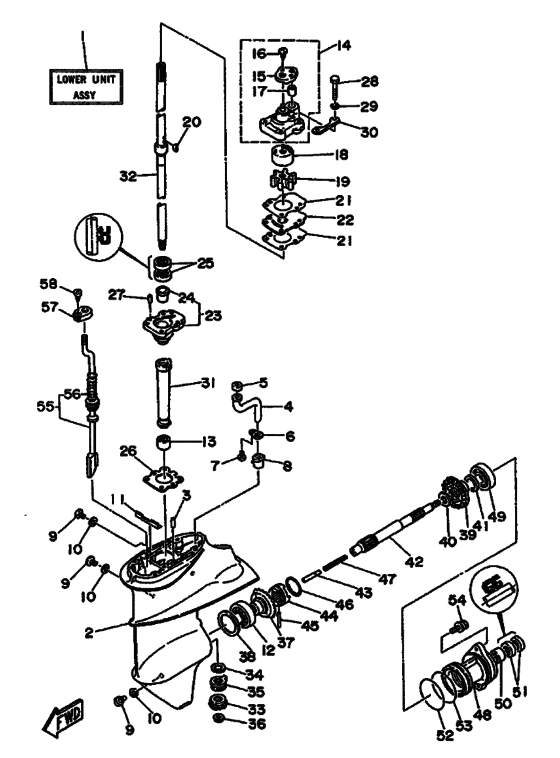

Lower casing & drive Diagram Yamaha F8 M(E)HS/L
- Year
- 1996
- Model
- F8B
- Model code
- 6J7
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 8
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G9-45300-06-4D Lower Unit AssyUR SHORT |
6G9-45300-06-4D |
US $1,419.72 |
||
| replacements | |||||
|
1
|
1
6G9-45300-07-4D Lower Unit AssyUR SHORT |
6G9-45300-07-4D |
US $1,419.72 |
||
|
1
|
1
6G9-45300-07-8D
Lower Unit Assy
UR SHORT |
6G9-45300-07-8D |
— | ||
|
1
|
1
6G9-45300-16-4D
Lower Unit Assy
UR LONG |
6G9-45300-16-4D |
— | ||
| replacements | |||||
|
1
|
1
6G9-45300-17-4D
Lower Unit Assy
UR LONG |
6G9-45300-17-4D |
— | ||
|
1
|
1
6G9-45300-17-8D
Lower Unit Assy
UR LONG |
6G9-45300-17-8D |
— | ||
|
2
|
2
6E8-45311-00-4D Casing, Lower |
6E8-45311-00-4D |
US $448.76 |
||
| replacements | |||||
|
2
|
2
6E8-45311-01-4D Casing, Lower |
6E8-45311-01-4D |
US $448.76 |
||
|
2
|
2
6E8-45311-01-8D CASING LOWER |
6E8-45311-01-8D |
from US $448.76 |
||
|
3
|
3
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.81 |
||
|
4
|
4
683-44362-01-00 Tube, Water 2 |
683-44362-01-00 |
from US $17.71 |
||
|
5
|
5
683-44365-01-00 Damper, Water Seal 1 |
683-44365-01-00 |
US $3.54 |
||
|
6
|
6
683-44373-00-00 Set Plate, Water Tube |
683-44373-00-00 |
from US $5.67 |
||
|
7
|
7
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
7
|
7
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
8
|
8
6E7-44366-00-00 Damper, Water Seal 2 |
6E7-44366-00-00 |
US $4.68 |
||
|
9
|
9
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
9
|
9
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
10
|
10
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
11
|
11
682-45376-01-00 Guide, Seal Damper |
682-45376-01-00 |
from US $5.67 |
||
|
12
|
12
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
13
|
13
93315-314V8-00 Bearing |
93315-314V8-00 |
from US $20.25 |
||
|
14
|
14
682-44300-01-00 Housing, Water Pump |
682-44300-01-00 |
US $107.90 |
||
|
15
|
15
682-44312-00-00 Cover, Water Pump Housing |
682-44312-00-00 |
from US $4.39 |
||
|
16
|
16
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
17
|
17
682-44365-00-00 Damper, Water Seal 1 |
682-44365-00-00 |
US $3.54 |
||
|
18
|
18
682-44322-00-00 Insert, Cartridge |
682-44322-00-00 |
from US $15.50 |
||
|
19
|
19
682-44352-01-00
Impeller
|
682-44352-01-00 |
— | ||
| replacement | |||||
|
19
|
19
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $22.56 |
||
|
20
|
20
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $6.40 |
||
|
21
|
21
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2.36 |
||
|
22
|
22
682-44323-00-00 Outer Plate, Cartridge |
682-44323-00-00 |
from US $10.42 |
||
|
23
|
23
6E7-45331-00-5B Housing, Bearing |
6E7-45331-00-5B |
US $57.47 |
||
| replacement | |||||
|
23
|
23
6E7-45331-00-CA Housing, Bearing |
6E7-45331-00-CA |
from US $33.68 |
||
|
24
|
24
626-45316-09-00 Bushing, Drive Shaft 1 |
626-45316-09-00 |
from US $20.54 |
||
|
25
|
25
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
25
|
25
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
26
|
26
683-45315-A0-00 Packing, Lower Casing |
683-45315-A0-00 |
from US $5.81 |
||
|
27
|
27
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
28
|
28
97095-06045-00 Bolt |
97095-06045-00 |
from US $3.04 |
||
| replacement | |||||
|
28
|
28
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
30
|
30
682-44328-00-00 Plate |
682-44328-00-00 |
from US $3.97 |
||
|
31
|
31
6E7-45536-00-00 Sleeve, Drive Shaft |
6E7-45536-00-00 |
from US $8.50 |
||
|
32
|
32
6G9-45501-01-00 Drive Shaft CompUR SHORT |
6G9-45501-01-00 |
from US $330.79 |
||
|
32
|
32
6G9-45501-11-00 Drive Shaft CompUR LONG |
6G9-45501-11-00 |
from US $335.03 |
||
|
33
|
33
6E7-45551-00-00 Pinion (13T)13T |
6E7-45551-00-00 |
from US $97.68 |
||
|
34
|
34
6E8-45587-00-13 Shim (T:1.13Mm)UR |
6E8-45587-00-13 |
US $9.35 |
||
| replacement | |||||
|
34
|
34
6E8-45587-10-00 Shim (T:1.13Mm)UR |
6E8-45587-10-00 |
from US $9.10 |
||
|
34
|
34
6E8-45587-00-20 Shim (T:1.20Mm)UR |
6E8-45587-00-20 |
US $9.35 |
||
| replacement | |||||
|
34
|
34
6E8-45587-30-00 Shim (T:1.20Mm)UR |
6E8-45587-30-00 |
from US $9.35 |
||
|
35
|
35
933-41414-V1-00
Bearing
|
933-41414-V1-00 |
— | ||
| replacement | |||||
|
35
|
35
93341-41414-00 Bearing |
93341-41414-00 |
from US $31.32 |
||
|
36
|
36
901-7908M-06-00 Nut |
901-7908M-06-00 |
from US $4.43 |
||
|
37
|
37
6E7-45560-00-00 Gear |
6E7-45560-00-00 |
US $147.83 |
||
| replacement | |||||
|
37
|
37
6E7-45560-01-00 Gear 1 (27T) |
6E7-45560-01-00 |
from US $85.50 |
||
|
38
|
38
664-45567-01-10 Shim (T:0.10Mm)UR |
664-45567-01-10 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-01-00 Shim (T:0.10Mm)UR |
664-45567-01-00 |
from US $5.09 |
||
|
38
|
38
664-45567-01-12 Shim (T:0.12Mm)UR |
664-45567-01-12 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-10-00 Shim (T:0.12Mm)UR |
664-45567-10-00 |
from US $5.09 |
||
|
38
|
38
664-45567-01-15 Shim (T:0.15Mm)UR |
664-45567-01-15 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-20-00 Shim (T:0.15Mm)UR |
664-45567-20-00 |
from US $5.09 |
||
|
38
|
38
664-45567-01-18 Shim (T:0.18Mm)UR |
664-45567-01-18 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-30-00 Shim (T:0.18Mm)UR |
664-45567-30-00 |
from US $5.09 |
||
|
38
|
38
664-45567-01-30 Shim (T0.30Mm)UR |
664-45567-01-30 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-40-00 Shim (T:0.30Mm)UR |
664-45567-40-00 |
from US $5.09 |
||
|
38
|
38
664-45567-01-40 Shim (T:0.40Mm)UR |
664-45567-01-40 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-50-00 Shim (T:0.40Mm)UR |
664-45567-50-00 |
from US $5.09 |
||
|
38
|
38
664-45567-01-50 Shim (T:0.50Mm)UR |
664-45567-01-50 |
US $5.81 |
||
| replacement | |||||
|
38
|
38
664-45567-60-00 Shim (T:0.50Mm)UR |
664-45567-60-00 |
from US $5.09 |
||
|
39
|
39
6E7-45571-00-00 Gear 2 (27T)27T |
6E7-45571-00-00 |
from US $101.34 |
||
|
40
|
40
90201-17682-00 Washer, Plate |
90201-17682-00 |
from US $1.84 |
||
|
41
|
41
626-45577-00-01 Shim (T:0.10Mm)UR |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
41
|
41
626-45577-00-00 Shim (T:0.10Mm)UR |
626-45577-00-00 |
from US $4.53 |
||
|
41
|
41
626-45577-00-03 Shim (T:0.30Mm)UR |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
41
|
41
626-45577-20-00 Shim (T:0.30Mm)UR |
626-45577-20-00 |
from US $2.70 |
||
|
41
|
41
626-45577-00-05 Shim (T:0.50Mm)UR |
626-45577-00-05 |
US $4.53 |
||
| replacement | |||||
|
41
|
41
626-45577-40-00 Shim (T:0.50Mm)UR |
626-45577-40-00 |
from US $4.53 |
||
|
42
|
42
683-45611-00-00 Shaft, Propeller |
683-45611-00-00 |
from US $212.08 |
||
|
43
|
43
650-45635-00-00 Plunger, Shift |
650-45635-00-00 |
from US $4.04 |
||
|
44
|
44
682-45631-00-00 Clutch, Dog |
682-45631-00-00 |
from US $33.68 |
||
|
45
|
45
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
46
|
46
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
46
|
46
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
47
|
47
90501-14M06-00 Spring, Compression |
90501-14M06-00 |
US $4.39 |
||
| replacement | |||||
|
47
|
47
90501-14M09-00 Spring, Compression |
90501-14M09-00 |
from US $3.38 |
||
|
48
|
48
683-45361-01-4D Cap, Lower Casing |
683-45361-01-4D |
US $92.01 |
||
| replacement | |||||
|
48
|
48
683-45361-02-8D Cap, Lower Casing |
683-45361-02-8D |
from US $92.01 |
||
|
49
|
49
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.70 |
||
|
50
|
50
93315-317U2-00 Bearing |
93315-317U2-00 |
from US $8.74 |
||
|
51
|
51
931-01170-54-00 Oil Seal |
931-01170-54-00 |
from US $9.10 |
||
|
52
|
52
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $3.04 |
||
|
53
|
53
93210-56M80-00 O-Ring |
93210-56M80-00 |
from US $3.89 |
||
|
54
|
54
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
54
|
54
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
54
|
54
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
55
|
55
6G9-44150-00-00
Shift Cam Assy
UR SHORT |
6G9-44150-00-00 |
— | ||
|
55
|
55
6G9-44150-10-00
Shift Cam Assy
UR LONG |
6G9-44150-10-00 |
— | ||
|
56
|
56
682-44147-00-00 Boot, Shift Rod |
682-44147-00-00 |
from US $7.08 |
||
|
57
|
57
682-44176-00-00 Bracket |
682-44176-00-00 |
from US $6.23 |
||
|
58
|
58
97780-50110-00 Screw, Pan Head |
97780-50110-00 |
from US $2.27 |
||
| replacement | |||||
|
58
|
58
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
