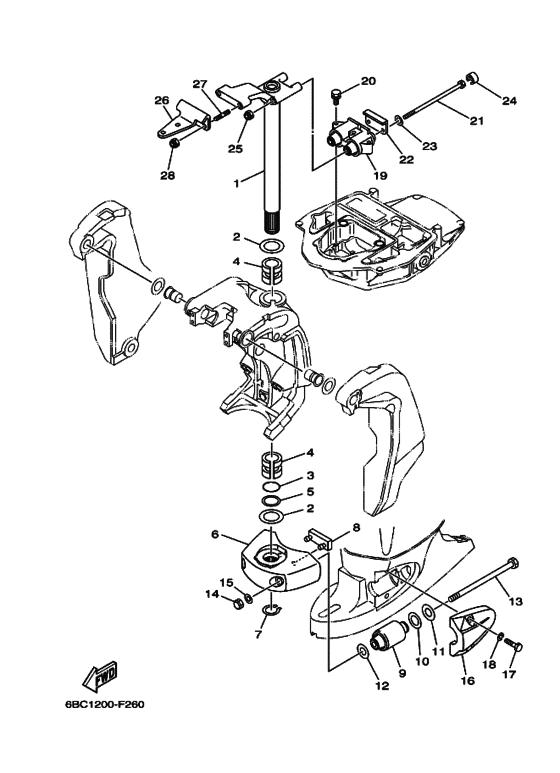

Bracket 3 Diagram Yamaha F80 EDL/X
- Year
- 2009
- Model
- F80C
- Model code
- 6CK
- Year
- 2009
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 80
- Sales region
- Europe (020)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68V-42510-10-8D Steering Bracket AssyL(20.3") |
68V-42510-10-8D |
US $543.84 |
||
| replacement | |||||
|
1
|
1
68V-42510-11-8D Steering Bracket AssyL(20.3") |
68V-42510-11-8D |
from US $543.84 |
||
|
2
|
2
90201-38M60-00 Washer, Plate |
90201-38M60-00 |
from US $5.97 |
||
|
3
|
3
93210-37MH7-00 O-Ring |
93210-37MH7-00 |
from US $5.06 |
||
|
4
|
4
90386-38M32-00 Bush |
90386-38M32-00 |
US $29.96 |
||
| replacement | |||||
|
4
|
4
90386-38M89-00 Bush |
90386-38M89-00 |
from US $29.96 |
||
|
5
|
5
90202-40M47-00 Washer, Plate |
90202-40M47-00 |
from US $4.99 |
||
|
6
|
6
68V-44551-00-8D Housing, Lower Mount Rubber |
68V-44551-00-8D |
from US $142.30 |
||
|
7
|
7
93410-37M04-00 Circlip |
93410-37M04-00 |
from US $4.04 |
||
|
8
|
8
61A-44575-00-00 Damper, Lower Mount Rubber |
61A-44575-00-00 |
US $13.74 |
||
|
9
|
9
61A-44555-01-94 Mount Damper, Lower Side |
61A-44555-01-94 |
US $128.07 |
||
| replacement | |||||
|
9
|
9
61A-44555-01-00 Mount Damper, Lower Side |
61A-44555-01-00 |
from US $128.07 |
||
|
10
|
10
90202-32M19-00 Washer, Plate |
90202-32M19-00 |
from US $5.40 |
||
|
11
|
11
90201-16M55-00 Washer, Plate |
90201-16M55-00 |
from US $5.40 |
||
|
12
|
12
90201-15M58-00 Washer, Plate |
90201-15M58-00 |
from US $5.06 |
||
|
13
|
13
90109-14007-00 Bolt |
90109-14007-00 |
from US $26.92 |
||
|
14
|
14
95380-14600-00 Nut |
95380-14600-00 |
from US $6.23 |
||
|
15
|
15
92995-14600-00 Washer |
92995-14600-00 |
US $6.13 |
||
| replacement | |||||
|
15
|
15
92990-14600-00 Washer |
92990-14600-00 |
from US $6.06 |
||
|
16
|
16
68V-44553-00-8D Cover, Lower Mount |
68V-44553-00-8D |
from US $77.37 |
||
|
17
|
17
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.67 |
||
| replacement | |||||
|
17
|
17
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.67 |
||
|
18
|
18
92995-10100-00 Washer |
92995-10100-00 |
from US $1.66 |
||
| replacement | |||||
|
18
|
18
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
19
|
19
67F-44514-00-94 Mount Damper, Upper Side |
67F-44514-00-94 |
US $122.69 |
||
| replacement | |||||
|
19
|
19
67F-44514-01-00 Mount Damper, Upper Side |
67F-44514-01-00 |
from US $122.69 |
||
|
20
|
20
90119-08091-00 Bolt, With Washer |
90119-08091-00 |
from US $6.94 |
||
|
21
|
21
90109-12007-00 Bolt |
90109-12007-00 |
from US $19.84 |
||
|
22
|
22
67F-44526-00-00 Plate |
67F-44526-00-00 |
from US $13.74 |
||
|
23
|
23
90201-12M09-00 Washer, Plate |
90201-12M09-00 |
from US $7.79 |
||
|
24
|
24
67F-44533-00-00 Damper, Upper Mount Rubber |
67F-44533-00-00 |
from US $5.38 |
||
|
25
|
25
90185-12M12-00 Nut, Self-Locking |
90185-12M12-00 |
from US $12.80 |
||
|
26
|
26
68V-48511-00-8D Hook, Steering |
68V-48511-00-8D |
US $28.12 |
||
| replacement | |||||
|
26
|
26
68V-48511-01-00 Steering Hook |
68V-48511-01-00 |
from US $28.12 |
||
|
27
|
27
90116-10175-00 Bolt, Stud |
90116-10175-00 |
from US $5.38 |
||
| replacements | |||||
|
27
|
27
901-16100-62-00 Bolt, Stud |
901-16100-62-00 |
from US $5.97 |
||
|
27
|
27
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
28
|
28
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
28
|
28
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
