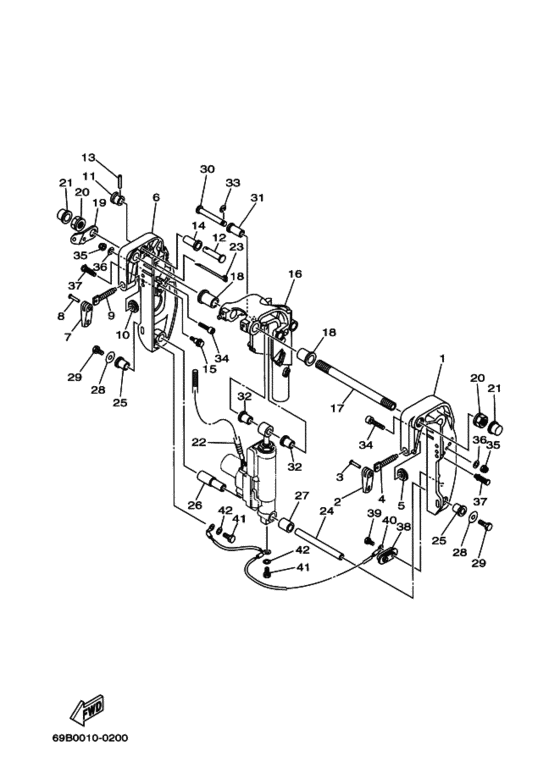

ﾌﾞﾗｹﾂﾄ 1 Diagram Yamaha F9.9 WHP
- Year
- 2000
- Model
- F9.9C
- Model code
- 69B
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69A-43111-00-4D Bracket, Clamp 1 |
69A-43111-00-4D |
US $129.18 |
||
| replacements | |||||
|
1
|
1
69A-43111-01-4D Bracket, Clamp 1 |
69A-43111-01-4D |
US $129.18 |
||
|
1
|
1
69A-43111-01-8D Bracket, Clamp 1 |
69A-43111-01-8D |
from US $129.18 |
||
|
2
|
2
6E0-43118-01-00
Handle, Transom Clamp
ハンドル，トランサムクランプ; |
6E0-43118-01-00 |
— | ||
| replacements | |||||
|
2
|
2
6L8-G3118-01-00 Handle Transom Clampハンドル，トランサムクランプ; |
6L8-G3118-01-00 |
US $11.93 |
||
|
2
|
2
6EE-G3118-00-00 Handle, Transom Clampハンドル，トランサムクランプ; |
6EE-G3118-00-00 |
from US $6.89 |
||
|
3
|
3
90243-04M01-00 Pinピン; |
90243-04M01-00 |
from US $2.64 |
||
|
4
|
4
6E7-43116-00-00
Screw, Transom Clamp
スクリユ，トランサムクランプ; |
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
4
|
4
6L2-43116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6L2-43116-00-00 |
from US $30.79 |
||
|
4
|
4
90149-14M03-00 Screw, Spec''l Shapeスクリユ，トランサムクランプ; |
90149-14M03-00 |
from US $15.16 |
||
|
5
|
5
648-43114-01-00 Pad, Transom Clampパツド，トランサムクランプ; |
648-43114-01-00 |
from US $5.74 |
||
|
6
|
6
69A-43112-00-4D Bracket, Clamp 2 |
69A-43112-00-4D |
US $129.18 |
||
| replacements | |||||
|
6
|
6
69A-43112-01-8D Bracket, Clamp 2 |
69A-43112-01-8D |
US $129.18 |
||
|
6
|
6
69A-43112-02-8D BRACKET, CLAMP 2 |
69A-43112-02-8D |
from US $129.18 |
||
|
7
|
7
6E0-43118-01-00
Handle, Transom Clamp
ハンドル，トランサムクランプ; |
6E0-43118-01-00 |
— | ||
| replacements | |||||
|
7
|
7
6L8-G3118-01-00 Handle Transom Clampハンドル，トランサムクランプ; |
6L8-G3118-01-00 |
US $11.93 |
||
|
7
|
7
6EE-G3118-00-00 Handle, Transom Clampハンドル，トランサムクランプ; |
6EE-G3118-00-00 |
from US $6.89 |
||
|
8
|
8
90243-04M01-00 Pinピン; |
90243-04M01-00 |
from US $2.64 |
||
|
9
|
9
6E7-43116-00-00
Screw, Transom Clamp
スクリユ，トランサムクランプ; |
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
9
|
9
6L2-43116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6L2-43116-00-00 |
from US $30.79 |
||
|
9
|
9
90149-14M03-00 Screw, Spec''l Shapeスクリユ，トランサムクランプ; |
90149-14M03-00 |
from US $15.16 |
||
|
10
|
10
648-43114-01-00 Pad, Transom Clampパツド，トランサムクランプ; |
648-43114-01-00 |
from US $5.74 |
||
|
11
|
11
65W-43192-00-00 Knob, Stopper |
65W-43192-00-00 |
from US $3.04 |
||
|
12
|
12
65W-43191-00-00 Shaft, Stopper |
65W-43191-00-00 |
from US $14.45 |
||
|
13
|
13
91690-30018-00 Pin, Spring |
91690-30018-00 |
from US $2.02 |
||
|
14
|
14
90386-14MA1-00 Bush |
90386-14MA1-00 |
from US $3.40 |
||
|
15
|
15
90109-06M04-00 Bolt |
90109-06M04-00 |
US $4.11 |
||
| replacement | |||||
|
15
|
15
90109-06MA1-00 Bolt |
90109-06MA1-00 |
from US $4.11 |
||
|
16
|
16
69A-43311-10-4D Bracket, Swivel 1ロング |
69A-43311-10-4D |
US $190.66 |
||
| replacement | |||||
|
16
|
16
69A-43311-11-8D Bracket, Swivel 1ロング |
69A-43311-11-8D |
from US $190.66 |
||
|
17
|
17
69A-43131-00-00 Bolt, Clamp Bracket |
69A-43131-00-00 |
from US $27.06 |
||
|
18
|
18
90386-22MA4-00 Bush |
90386-22MA4-00 |
from US $8.19 |
||
|
19
|
19
69A-43113-00-00 Plate, Clamp Bracket |
69A-43113-00-00 |
from US $7.23 |
||
|
20
|
20
63V-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
63V-43145-00-00 |
US $33.44 |
||
| replacement | |||||
|
20
|
20
90185-22007-00 Nut, Self-Lockingキヤツプ，クランプブラケツト; |
90185-22007-00 |
from US $29.77 |
||
|
21
|
21
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
21
|
21
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $7.07 |
||
|
22
|
22
90446-14MH7-00 Hose (L560) |
90446-14MH7-00 |
from US $7.23 |
||
|
23
|
23
90465-13M97-00 Clamp |
90465-13M97-00 |
from US $4.03 |
||
|
24
|
24
69A-43818-00-00 Pin, Lower Shock Mount |
69A-43818-00-00 |
from US $68.67 |
||
| replacement | |||||
|
24
|
24
69G-43818-00-00 Pin, Lower Shock Mount |
69G-43818-00-00 |
from US $68.67 |
||
|
25
|
25
90386-16MA7-00 Bush |
90386-16MA7-00 |
from US $3.83 |
||
|
26
|
26
90386-16MA8-00 Bush |
90386-16MA8-00 |
from US $8.22 |
||
|
27
|
27
90387-16M02-00 Collar |
90387-16M02-00 |
from US $5.81 |
||
|
28
|
28
90201-08M00-00 Washer, Plate |
90201-08M00-00 |
US $3.26 |
||
| replacement | |||||
|
28
|
28
90201-08M03-00 Washer, Plate |
90201-08M03-00 |
from US $3.26 |
||
|
29
|
29
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
30
|
30
90249-12M36-00 Pin |
90249-12M36-00 |
US $63.42 |
||
| replacement | |||||
|
30
|
30
90249-12M38-00 Pin |
90249-12M38-00 |
from US $63.42 |
||
|
31
|
31
90381-12M10-00 Bush, Solid |
90381-12M10-00 |
from US $5.28 |
||
|
32
|
32
90381-12M11-00 Bush, Solid |
90381-12M11-00 |
from US $4.58 |
||
|
33
|
33
93430-10M00-00 Circlip |
93430-10M00-00 |
US $1.42 |
||
| replacement | |||||
|
33
|
33
99080-10600-00 Circlip |
99080-10600-00 |
from US $1.50 |
||
|
34
|
34
90110-08M05-00 Bolt, Hexagon Socket Head |
90110-08M05-00 |
from US $2.70 |
||
|
35
|
35
901-85080-57-00
Nut, Self-Locking
|
901-85080-57-00 |
— | ||
| replacement | |||||
|
35
|
35
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
36
|
36
92990-08600-00 Washer, Plateワツシヤ，プレ−ト; |
92990-08600-00 |
from US $1.66 |
||
|
37
|
37
90338-08M19-00 Plug |
90338-08M19-00 |
from US $5.24 |
||
|
38
|
38
65W-45251-00-00 Anode |
65W-45251-00-00 |
from US $12.35 |
||
|
39
|
39
97085-06025-00 Bolt |
97085-06025-00 |
US $2.41 |
||
| replacements | |||||
|
39
|
39
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
39
|
39
90101-06020-00 Bolt |
90101-06020-00 |
from US $1.56 |
||
|
40
|
40
63V-82127-00-00 Wire, Lead 2ワイヤ，リ−ド ２; |
63V-82127-00-00 |
from US $24.37 |
||
|
41
|
41
970-95060-10-00
Bolt
ボルト; |
970-95060-10-00 |
— | ||
| replacement | |||||
|
41
|
41
97085-06010-00 Boltボルト; |
97085-06010-00 |
from US $1.28 |
||
|
42
|
42
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
42
|
42
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
