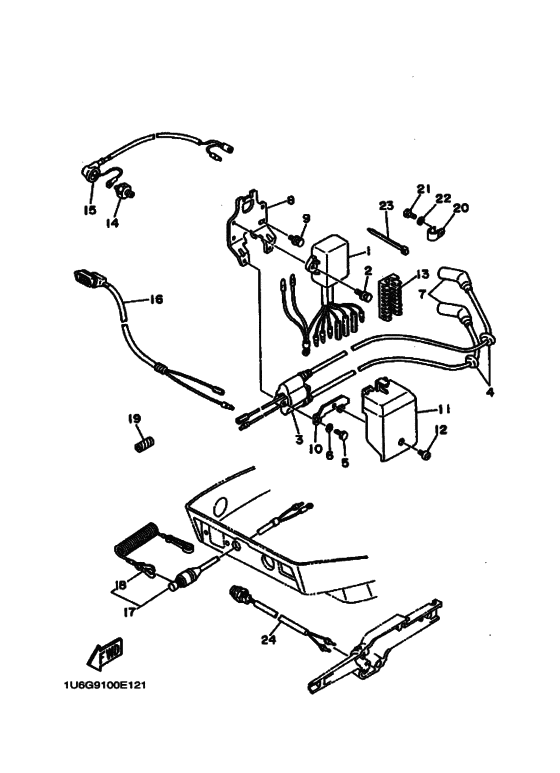

Electrical 1 Diagram Yamaha F9.9 M(E)HS/L
- Year
- 1996
- Model
- F9.9B
- Model code
- 6G9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G9-85540-21-00 C.d.i. Unit Assembly |
6G9-85540-21-00 |
US $354.64 |
||
| replacement | |||||
|
1
|
1
6G9-85540-29-00 C.d.i. Unit Assy |
6G9-85540-29-00 |
from US $340.72 |
||
|
2
|
2
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
2
|
2
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
2
|
2
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
3
|
3
6G8-85570-21-00 Ignition Coil Assy |
6G8-85570-21-00 |
from US $124.62 |
||
|
4
|
4
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
5
|
5
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
5
|
5
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
6G8-82370-20-00 Plug Cap Assembly |
6G8-82370-20-00 |
from US $27.91 |
||
|
8
|
8
6G8-85542-00-00 Bracket |
6G8-85542-00-00 |
from US $17.63 |
||
|
9
|
9
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
9
|
9
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
10
|
10
6G8-85525-00-00 Cover |
6G8-85525-00-00 |
from US $3.82 |
||
|
11
|
11
6G8-81916-00-00
Cover, Terminal
|
6G8-81916-00-00 |
— | ||
|
12
|
12
98980-06008-00 Screw, Bind |
98980-06008-00 |
from US $1.42 |
||
|
13
|
13
6G8-82522-00-00 Clamp, Coupler |
6G8-82522-00-00 |
from US $3.54 |
||
|
14
|
14
6G8-82504-00-00 Oil Pressure Switch Assy |
6G8-82504-00-00 |
from US $50.01 |
||
|
15
|
15
6G8-82127-00-00 Wire, Lead 2 |
6G8-82127-00-00 |
from US $6.91 |
||
|
16
|
16
6G8-83582-01-00 Pilot Light Assy |
6G8-83582-01-00 |
US $47.17 |
||
|
17
|
17
6G9-82575-02-00 Engine Stop Switch AssyUR |
6G9-82575-02-00 |
US $70.26 |
||
| replacements | |||||
|
17
|
17
6E9-82575-02-00 Engine Stop Switch AssyUR |
6E9-82575-02-00 |
from US $49.99 |
||
|
17
|
17
699-82575-09-00 Engine Stop Switch AssyUR |
699-82575-09-00 |
from US $108.18 |
||
|
17
|
17
6G8-82575-00-00 Engine Stop Switch AssyUR CANADA ONLY |
6G8-82575-00-00 |
US $61.34 |
||
| replacement | |||||
|
17
|
17
6G8-82575-01-00 Engine Stop Switch AssyUR CANADA ONLY |
6G8-82575-01-00 |
from US $61.34 |
||
|
18
|
18
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
19
|
19
90446-10M02-00 Hose |
90446-10M02-00 |
US $4.68 |
||
| replacement | |||||
|
19
|
19
90446-10M01-00 Hose (L60) |
90446-10M01-00 |
from US $4.68 |
||
|
20
|
20
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
21
|
21
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
90465-13M11-00 Clamp |
90465-13M11-00 |
from US $1.70 |
||
| replacement | |||||
|
23
|
23
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
24
|
24
6G8-82550-10-00 Engine Stop Switch AssyCANADA ONLY |
6G8-82550-10-00 |
from US $45.04 |
||
