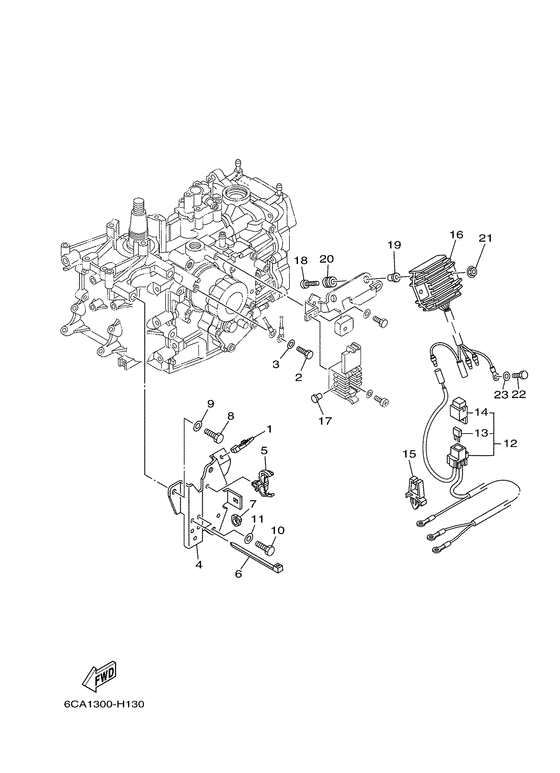

Electrical 2 Diagram Yamaha F9.9 MHS/L
- Year
- 2009
- Model
- F9.9H
- Model code
- 6CA
- Year
- 2009
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (General) (130)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90464-08004-00 Clamp |
90464-08004-00 |
from US $1.70 |
||
|
02
|
02
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
02
|
02
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
03
|
03
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
04
|
04
6AH-82398-00-00 Plate 3 |
6AH-82398-00-00 |
from US $44.35 |
||
|
05
|
05
90464-18246-00 Clamp(4Tr) |
90464-18246-00 |
from US $1.28 |
||
|
06
|
06
90465-13M18-00 Clamp |
90465-13M18-00 |
from US $1.35 |
||
| replacements | |||||
|
06
|
06
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
06
|
06
90465-13M30-00 Clamp |
90465-13M30-00 |
from US $1.90 |
||
|
07
|
07
90464-09010-00 Clamp |
90464-09010-00 |
from US $4.11 |
||
|
08
|
08
97095-08025-00 Bolt |
97095-08025-00 |
from US $3.38 |
||
| replacement | |||||
|
08
|
08
98980-08025-00 Screw, Bind (98902-08025-00) |
98980-08025-00 |
from US $5.68 |
||
|
09
|
09
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
10
|
10
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
| replacements | |||||
|
10
|
10
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
10
|
10
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
11
|
11
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
12
|
12
6AH-81949-00-00 Wire, LeadAp |
6AH-81949-00-00 |
from US $117.85 |
||
|
13
|
13
67F-82151-00-00
Fuse (20A-Bl)
|
67F-82151-00-00 |
— | ||
| replacement | |||||
|
13
|
13
5JJ-82151-20-00 Fuse (20A-Bl) |
5JJ-82151-20-00 |
from US $3.74 |
||
|
14
|
14
67F-8215B-00-00 Cap (Black) |
67F-8215B-00-00 |
from US $10.20 |
||
|
15
|
15
90464-06001-00 ClampAp |
90464-06001-00 |
from US $1.84 |
||
|
16
|
16
6AH-81960-00-00 Rectifier & Regulator AssyAp |
6AH-81960-00-00 |
from US $179.61 |
||
|
17
|
17
703-82119-00-00 Cover, Lead WireAp |
703-82119-00-00 |
from US $2.13 |
||
|
18
|
18
98980-06030-00 Screw, BindAp |
98980-06030-00 |
from US $1.84 |
||
|
19
|
19
90387-06M70-00 CollarAp |
90387-06M70-00 |
from US $4.39 |
||
|
20
|
20
90480-13M24-00 GrommetAp |
90480-13M24-00 |
from US $5.13 |
||
|
21
|
21
95780-06500-00 Nut, FlangeAp |
95780-06500-00 |
from US $1.25 |
||
|
22
|
22
97095-06014-00 BoltAp |
97095-06014-00 |
US $1.56 |
||
| replacement | |||||
|
22
|
22
97D95-06014-00 Bolt, Hexagon Deep RAp |
97D95-06014-00 |
from US $1.18 |
||
|
23
|
23
929-95066-00-00
Washer, Plate
Ap |
929-95066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646)Ap |
929-90066-00-00 |
from US $1.18 |
||
