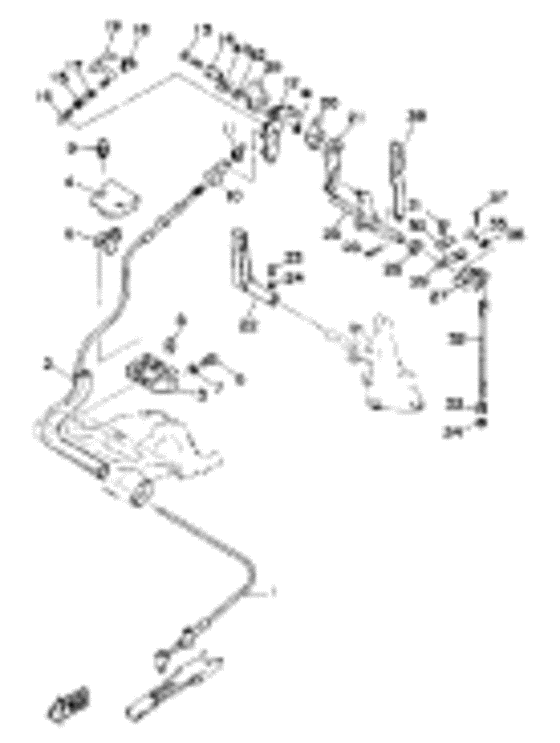

Control engine Diagram Yamaha F9.9 S/LMH
- Year
- 1989
- Model
- F9.9
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G9-48311-02-00 Cable |
6G9-48311-02-00 |
from US $78.48 |
||
|
2
|
2
90445-24M00-00 Hose (L165) |
90445-24M00-00 |
from US $2.70 |
||
|
3
|
3
6G8-41661-00-98 Bracket 1 |
6G8-41661-00-98 |
from US $21.98 |
||
|
4
|
4
6G8-41662-00-98 Bracket 2 |
6G8-41662-00-98 |
from US $15.87 |
||
|
5
|
5
6G8-41663-00-00 Bracket 3 |
6G8-41663-00-00 |
from US $4.96 |
||
|
6
|
6
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
6
|
6
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
6
|
6
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
6G8-41654-00-00 Nut |
6G8-41654-00-00 |
from US $6.38 |
||
|
9
|
9
90159-05M06-00 Screw, With Washer |
90159-05M06-00 |
from US $2.55 |
||
|
10
|
10
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.72 |
||
|
11
|
11
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
from US $4.82 |
||
|
12
|
12
6G8-41212-00-00 Arm, Accel |
6G8-41212-00-00 |
from US $19.84 |
||
|
13
|
13
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
13
|
13
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
14
|
14
90387-06M58-00 Collar |
90387-06M58-00 |
from US $4.39 |
||
|
15
|
15
6G8-41238-01-00 Joint, Link |
6G8-41238-01-00 |
from US $11.19 |
||
|
16
|
16
6G8-41241-01-00 Rod, Link |
6G8-41241-01-00 |
US $5.29 |
||
|
17
|
17
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
18
|
18
6G8-41237-01-00 Joint, Link |
6G8-41237-01-00 |
from US $10.77 |
||
|
19
|
19
6G8-41242-01-00 Rod 2 |
6G8-41242-01-00 |
US $5.73 |
||
|
20
|
20
6G8-14493-00-00 Stay 1 |
6G8-14493-00-00 |
US $2.94 |
||
|
21
|
21
6G8-44111-00-00 Handle, Gear Shift |
6G8-44111-00-00 |
from US $22.48 |
||
