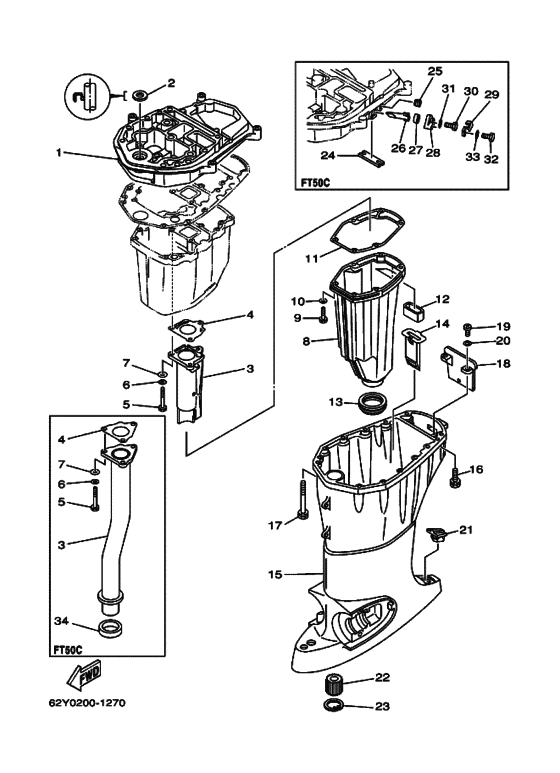

Upper casing Diagram Yamaha FT50 ETL/X
- Year
- 2001
- Model
- FT50B
- Model code
- 64J
- Year
- 2001
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (030)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64J-41137-00-94 Guide, ExhaustFT50C |
64J-41137-00-94 |
US $406.47 |
||
| replacement | |||||
|
1
|
1
64J-41137-02-94 Guide, ExhaustFT50C |
64J-41137-02-94 |
US $406.47 |
||
|
2
|
2
93103-18011-00 Oil Seal |
93103-18011-00 |
from US $24.14 |
||
|
3
|
3
64J-41131-00-94 Manifold, Ext. 1FT50C |
64J-41131-00-94 |
US $123.93 |
||
| replacements | |||||
|
3
|
3
64J-WS41C-00-00 Manifold Exhaust SetFT50C |
64J-WS41C-00-00 |
US $123.93 |
||
|
3
|
3
64J-41131-00-00 Manifold, Ext. 1FT50C |
64J-41131-00-00 |
US $123.93 |
||
|
4
|
4
64J-41133-00-00 Gasket, Exhaust Manifold 1FT50C |
64J-41133-00-00 |
US $6.38 |
||
| replacement | |||||
|
4
|
4
64J-41133-10-00 Gasket, Exhaust Manifold 1FT50C |
64J-41133-10-00 |
from US $6.38 |
||
|
5
|
5
97075-06045-00 BoltFT50C |
97075-06045-00 |
from US $3.04 |
||
| replacement | |||||
|
5
|
5
970-80060-45-00 BoltFT50C |
970-80060-45-00 |
from US $4.56 |
||
|
6
|
6
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
90201-06015-00 Washer, Plate |
90201-06015-00 |
from US $1.94 |
||
|
8
|
8
64J-14711-00-5B Muffler 1FT50C |
64J-14711-00-5B |
US $161.65 |
||
|
9
|
9
97075-06025-00 Bolt |
97075-06025-00 |
US $1.35 |
||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
62Y-41134-00-00 Gasket, Exhaust Manifold |
62Y-41134-00-00 |
US $12.18 |
||
| replacement | |||||
|
11
|
11
6BG-41134-00-00 Gasket, Exhaust Manifold |
6BG-41134-00-00 |
from US $12.91 |
||
|
12
|
12
62Y-45127-00-00 Seal |
62Y-45127-00-00 |
US $5.13 |
||
|
13
|
13
663-45123-00-00 Gasket, Muffler |
663-45123-00-00 |
from US $20.94 |
||
|
14
|
14
64J-77123-00-00 Guide 1FT50C |
64J-77123-00-00 |
from US $5.38 |
||
|
15
|
15
62Y-45111-21-4D Casing, Upper |
62Y-45111-21-4D |
US $644.16 |
||
| replacement | |||||
|
15
|
15
62Y-45111-21-8D Casing, Upper |
62Y-45111-21-8D |
from US $644.16 |
||
|
16
|
16
90119-08M79-00 Bolt, With Washer |
90119-08M79-00 |
US $3.97 |
||
| replacement | |||||
|
16
|
16
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
17
|
17
90119-08M82-00 Bolt, With Washer |
90119-08M82-00 |
from US $7.23 |
||
|
18
|
18
62Y-45151-00-00 Cover, Upper Casing |
62Y-45151-00-00 |
from US $4.68 |
||
|
19
|
19
97880-05016-00 Screw, Pan Head |
97880-05016-00 |
US $1.42 |
||
| replacement | |||||
|
19
|
19
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
21
|
21
6H3-45155-00-00 Cap |
6H3-45155-00-00 |
US $2.41 |
||
| replacements | |||||
|
21
|
21
6C5-45155-00-00 Cap |
6C5-45155-00-00 |
from US $2.64 |
||
|
21
|
21
6C5-45155-01-00 CAP |
6C5-45155-01-00 |
US $2.64 |
||
|
21
|
21
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
21
|
21
6C5-45155-02-00 Cap |
6C5-45155-02-00 |
from US $2.64 |
||
|
22
|
22
62Y-45318-00-00
Bushing, Drive Shaft
|
62Y-45318-00-00 |
— | ||
|
23
|
23
93420-36M01-00 Circlip |
93420-36M01-00 |
from US $6.06 |
||
|
24
|
24
64J-45128-00-00 Seal 2FT50C |
64J-45128-00-00 |
US $10.72 |
||
|
25
|
25
68T-11112-00-00 Plug, Blind 1FT50C |
68T-11112-00-00 |
US $5.67 |
||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
FT50C |
999-99999-99-00 |
— | ||
|
26
|
26
62Y-11325-00-00 AnodeFT50C |
62Y-11325-00-00 |
from US $8.60 |
||
|
27
|
27
66M-11328-00-00 Grommet, AnodeFT50C |
66M-11328-00-00 |
US $1.94 |
||
|
28
|
28
66M-11327-00-00 Cover, AnodeFT50C |
66M-11327-00-00 |
US $5.24 |
||
| replacement | |||||
|
28
|
28
66M-11327-00-94 Cover, AnodeFT50C |
66M-11327-00-94 |
from US $5.24 |
||
|
29
|
29
66M-12535-00-00 PlateFT50C |
66M-12535-00-00 |
from US $3.54 |
||
|
30
|
30
97095-05012-00 BoltFT50C |
97095-05012-00 |
from US $1.55 |
||
|
31
|
31
929-95056-00-00
Washer, Plate
FT50C |
929-95056-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-05600-00 Washer, PlateFT50C |
92990-05600-00 |
from US $1.07 |
||
|
32
|
32
97013-06020-00 BoltFT50C |
97013-06020-00 |
from US $1.42 |
||
|
33
|
33
929-03066-00-00
Washer, Plate
FT50C |
929-03066-00-00 |
— | ||
| replacement | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646)FT50C |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
64J-46132-00-00 Gasket 1FT50C |
64J-46132-00-00 |
US $45.59 |
||
| replacement | |||||
|
34
|
34
64J-46132-10-00 Gasket 1FT50C |
64J-46132-10-00 |
from US $45.59 |
||
