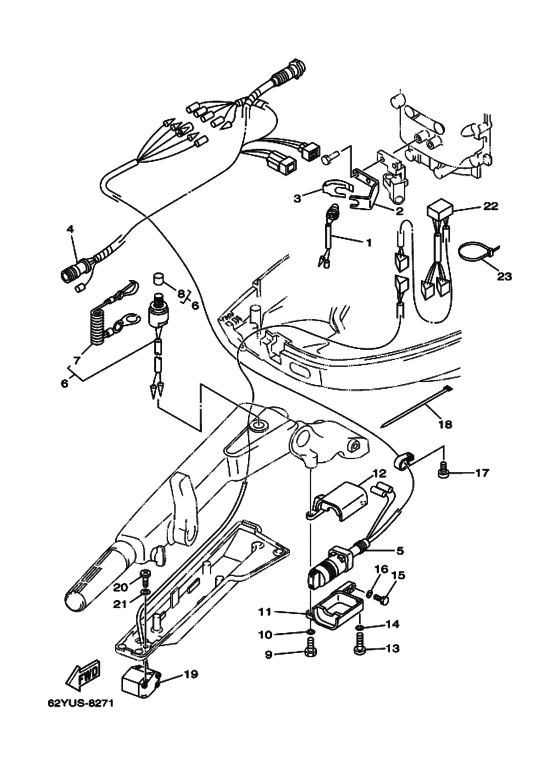

Electrical 3 Diagram Yamaha FT50 ETL/X
- Year
- 1999
- Model
- FT50B
- Model code
- 64J
- Year
- 1999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6F5-82540-00-00 Neutral Switch Assy |
6F5-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
1
|
1
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
2
|
2
62Y-82554-00-00 Stay, Neutral Assy |
62Y-82554-00-00 |
US $9.63 |
||
| replacement | |||||
|
2
|
2
62Y-82554-01-00 Stay, Neutral Switch |
62Y-82554-01-00 |
from US $7.93 |
||
|
3
|
3
62Y-82555-00-00 Damper, Main Switch 1 |
62Y-82555-00-00 |
US $7.78 |
||
|
5
|
5
6H3-82510-11-00 Main Switch Assembly |
6H3-82510-11-00 |
US $230.73 |
||
| replacement | |||||
|
5
|
5
63D-82510-02-00 Main Switch Assy |
63D-82510-02-00 |
US $118.32 |
||
|
6
|
6
63D-82575-00-00 Engine Stop Switch Assy |
63D-82575-00-00 |
US $108.18 |
||
| replacement | |||||
|
6
|
6
699-82575-09-00 Engine Stop Switch Assy |
699-82575-09-00 |
from US $108.18 |
||
|
7
|
7
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
8
|
8
689-8257Y-00-00 Cap |
689-8257Y-00-00 |
from US $4.82 |
||
|
9
|
9
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
10
|
10
929-95061-00-00 Washer, Spring6A1 598 P66 |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
63D-8252F-01-4D Cover, Main Switch 2 |
63D-8252F-01-4D |
US $22.39 |
||
| replacements | |||||
|
11
|
11
63D-8252F-01-8D Cover, Main Switch 2 |
63D-8252F-01-8D |
US $27.04 |
||
|
11
|
11
63D-8252F-01-8D Cover, Main Switch 2 |
63D-8252F-01-8D |
US $27.04 |
||
|
12
|
12
63D-8252E-01-4D
Cover, Main Switch
|
63D-8252E-01-4D |
— | ||
| replacement | |||||
|
12
|
12
63D-8252E-01-8D Cover, Main Switch 1 |
63D-8252E-01-8D |
from US $21.54 |
||
|
13
|
13
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
14
|
14
929-95061-00-00 Washer, Spring6A1 598 P66 |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
15
|
15
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
16
|
16
929-95061-00-00 Washer, Spring6A1 598 P66 |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
18
|
18
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
18
|
18
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
