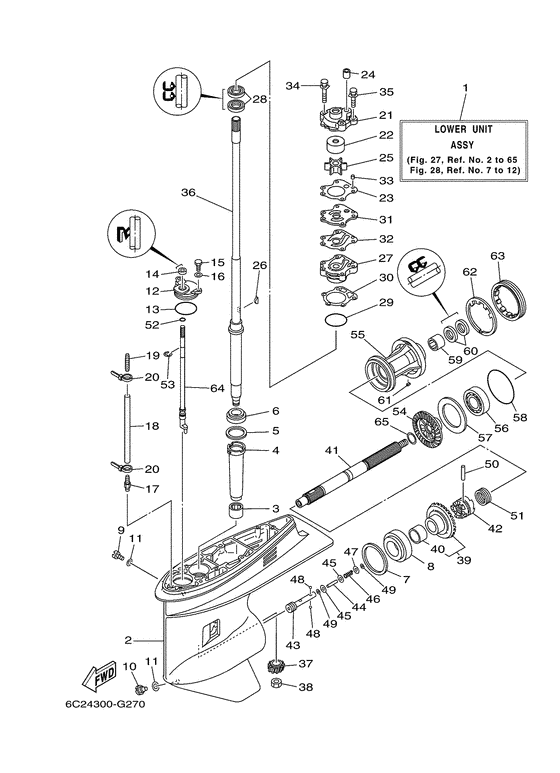

Lower casing & drive 1 Diagram Yamaha FT50 ETL
- Year
- 2008
- Model
- FT50G
- Model code
- 6C2
- Year
- 2008
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 50
- Sales region
- Europe (General) (080)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
68S-45300-31-8D Lower Unit AssyL(20.7") |
68S-45300-31-8D |
US $2,508 |
||
| replacements | |||||
|
01
|
01
68S-45300-32-8D Lower Unit AssyL(20.7") |
68S-45300-32-8D |
US $2,508 |
||
|
01
|
01
68S-45300-33-8D Lower Unit AssyL(20.7") |
68S-45300-33-8D |
US $2,508 |
||
|
01
|
01
68S-45300-34-8D Lower Unit AssyL(20.7") |
68S-45300-34-8D |
from US $2,508 |
||
|
02
|
02
67F-45301-00-8D Casing, Lower |
67F-45301-00-8D |
from US $1,261.92 |
||
|
03
|
03
93315-52563-00 Bearing |
93315-52563-00 |
from US $54.86 |
||
|
04
|
04
688-45536-01-00 Sleeve, Drive Shaft |
688-45536-01-00 |
from US $19.13 |
||
|
05
|
05
688-45587-01-00 Shim (T:0.10Mm)Ur |
688-45587-01-00 |
from US $1.70 |
||
|
05
|
05
688-45587-10-00 Shim (T:0.12Mm)Ur |
688-45587-10-00 |
from US $5.09 |
||
|
05
|
05
688-45587-20-00 Shim (T:0.15Mm)Ur |
688-45587-20-00 |
from US $1.70 |
||
|
05
|
05
688-45587-30-00 Shim (T:0.18Mm)Ur |
688-45587-30-00 |
from US $5.09 |
||
|
05
|
05
688-45587-40-00 Shim (T:0.30Mm)Ur |
688-45587-40-00 |
from US $5.09 |
||
|
05
|
05
688-45587-50-00 Shim (T:0.40Mm)Ur |
688-45587-50-00 |
from US $5.09 |
||
|
05
|
05
688-45587-60-00 Shim (T:0.50Mm)Ur |
688-45587-60-00 |
from US $1.70 |
||
|
06
|
06
93332-000U3-00 Bearing |
93332-000U3-00 |
from US $23.46 |
||
|
07
|
07
688-45567-60-00 Shim (T:0.50Mm)Ur |
688-45567-60-00 |
from US $3.04 |
||
|
07
|
07
688-45567-01-00 Shim (T:0.10Mm)Ur |
688-45567-01-00 |
from US $2.36 |
||
|
07
|
07
688-45567-10-00 Shim (T:0.12Mm)Ur |
688-45567-10-00 |
from US $2.02 |
||
|
07
|
07
688-45567-20-00 Shim (T:0.15Mm)Ur |
688-45567-20-00 |
from US $6.94 |
||
|
07
|
07
688-45567-30-00 Shim (T:0.18Mm)Ur |
688-45567-30-00 |
from US $2.36 |
||
|
07
|
07
688-45567-40-00 Shim (T:0.30Mm)Ur |
688-45567-40-00 |
from US $2.36 |
||
|
07
|
07
688-45567-50-00 Shim (T:0.40Mm)Ur |
688-45567-50-00 |
from US $2.02 |
||
|
08
|
08
93332-00095-00 Bearing |
93332-00095-00 |
from US $134.29 |
||
|
09
|
09
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
10
|
10
688-45341-10-00 Plug, Drain |
688-45341-10-00 |
from US $7.21 |
||
|
11
|
11
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
11
|
11
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
12
|
12
688-45321-00-00 Plate |
688-45321-00-00 |
from US $3.47 |
||
|
13
|
13
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.94 |
||
|
14
|
14
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $3.13 |
||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
16
|
16
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
17
|
17
6E5-45378-00-00 Nipple, Hose |
6E5-45378-00-00 |
from US $4.72 |
||
|
18
|
18
904-4507M-E8-00
Hose (L80)
L(20.7") |
904-4507M-E8-00 |
— | ||
| replacement | |||||
|
18
|
18
90445-07MF2-00 Hose (L250)L(20.7") |
90445-07MF2-00 |
from US $1.98 |
||
|
19
|
19
6E5-83558-10-00 End, Nipple |
6E5-83558-10-00 |
from US $6.23 |
||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.29 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
6H3-44311-00-00 Housing, Water Pump |
6H3-44311-00-00 |
from US $24.50 |
||
|
22
|
22
663-44322-00-00 Insert, Cartridge |
663-44322-00-00 |
from US $12.12 |
||
|
23
|
23
6H3-44315-A0-00 Gasket, Water Pump |
6H3-44315-A0-00 |
from US $4.82 |
||
|
24
|
24
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.74 |
||
|
25
|
25
6H3-44352-00-00 Impeller |
6H3-44352-00-00 |
from US $22.47 |
||
|
26
|
26
902-8003M-03-00 Key, Woodruff |
902-8003M-03-00 |
from US $7.76 |
||
|
27
|
27
6H3-44341-00-94 Housing, Water Pump |
6H3-44341-00-94 |
US $70.74 |
||
| replacement | |||||
|
27
|
27
999-99039-36-00 Housing, Water Pump Set |
999-99039-36-00 |
from US $60.44 |
||
|
28
|
28
93101-23070-00 Oil Seal |
93101-23070-00 |
from US $11.12 |
||
|
29
|
29
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
30
|
30
688-44316-A0-00 Gasket, Water Pump |
688-44316-A0-00 |
from US $3.72 |
||
|
31
|
31
6H3-44323-00-00 Outer Plate, Cartridge |
6H3-44323-00-00 |
from US $7.08 |
||
|
32
|
32
6H3-44324-A0-00 Gasket, Cartridge |
6H3-44324-A0-00 |
from US $4.11 |
||
|
33
|
33
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
34
|
34
90119-08M33-00 Bolt, With Washer |
90119-08M33-00 |
from US $6.94 |
||
|
35
|
35
90119-08M14-00 Bolt, With Washer |
90119-08M14-00 |
from US $3.10 |
||
|
36
|
36
64J-45501-30-00 Drive Shaft CompL(20.7") |
64J-45501-30-00 |
from US $418.75 |
||
|
37
|
37
6K5-45551-00-00 Pinion (12T) |
6K5-45551-00-00 |
from US $73.92 |
||
|
38
|
38
90170-16M01-00 Nut |
90170-16M01-00 |
from US $5.74 |
||
|
39
|
39
68S-45560-00-00 Gear 1 (28T) |
68S-45560-00-00 |
from US $218.29 |
||
|
40
|
40
93317-322V0-00 Bearing |
93317-322V0-00 |
from US $25.80 |
||
|
41
|
41
67F-45611-01-00 Shaft, Propeller |
67F-45611-01-00 |
from US $306.72 |
||
|
42
|
42
6D8-45631-00-00 Clutch, Dog |
6D8-45631-00-00 |
from US $142.23 |
||
|
43
|
43
67F-45634-00-00 Slide, Shift |
67F-45634-00-00 |
from US $88.15 |
||
|
44
|
44
6H1-45668-00-00 Shaft, Free 1 |
6H1-45668-00-00 |
from US $9.07 |
||
|
45
|
45
6H1-45635-00-00 Plunger, Shift |
6H1-45635-00-00 |
from US $19.84 |
||
|
46
|
46
90501-12M48-00 Spring, Compression |
90501-12M48-00 |
from US $3.68 |
||
|
47
|
47
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
48
|
48
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
49
|
49
90183-02M03-00 Nut, Spring |
90183-02M03-00 |
from US $1.60 |
||
|
50
|
50
90250-07M02-00 Pin, Straight |
90250-07M02-00 |
from US $3.04 |
||
|
51
|
51
688-45633-00-00 Ring, Cross Pin |
688-45633-00-00 |
from US $1.70 |
||
|
52
|
52
93210-07003-00 O-Ring |
93210-07003-00 |
from US $1.81 |
||
| replacement | |||||
|
52
|
52
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.81 |
||
|
53
|
53
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
54
|
54
68S-45571-00-00 Gear 2 (28T) |
68S-45571-00-00 |
from US $174.74 |
||
|
55
|
55
67F-45331-00-94 Housing, Bearing |
67F-45331-00-94 |
US $163.03 |
||
| replacement | |||||
|
55
|
55
67F-45331-00-CA Housing, Bearing |
67F-45331-00-CA |
from US $163.03 |
||
|
56
|
56
933-06207-U0-00 Bearing |
933-06207-U0-00 |
from US $19.84 |
||
|
57
|
57
67F-45576-00-00 Washer, Thrust 2 |
67F-45576-00-00 |
from US $14.17 |
||
|
58
|
58
932-1086M-39-00 O-Ring |
932-1086M-39-00 |
from US $7.62 |
||
|
59
|
59
93317-325U0-00 Bearing |
93317-325U0-00 |
from US $17.52 |
||
|
60
|
60
931-0125M-03-00 Oil Seal |
931-0125M-03-00 |
from US $4.72 |
||
|
61
|
61
902-82040-10-00 Key, Straight |
902-82040-10-00 |
from US $3.60 |
||
|
62
|
62
688-45383-02-00 Washer, Claw |
688-45383-02-00 |
from US $11.12 |
||
|
63
|
63
688-45384-00-00 Nut |
688-45384-00-00 |
US $40.77 |
||
| replacement | |||||
|
63
|
63
688-45384-02-00 Nut |
688-45384-02-00 |
from US $20.20 |
||
|
64
|
64
64J-44150-01-00 Shift Cam Assy |
64J-44150-01-00 |
from US $153.36 |
||
|
65
|
65
90201-25M05-00 Washer, Plate |
90201-25M05-00 |
from US $5.06 |
||
