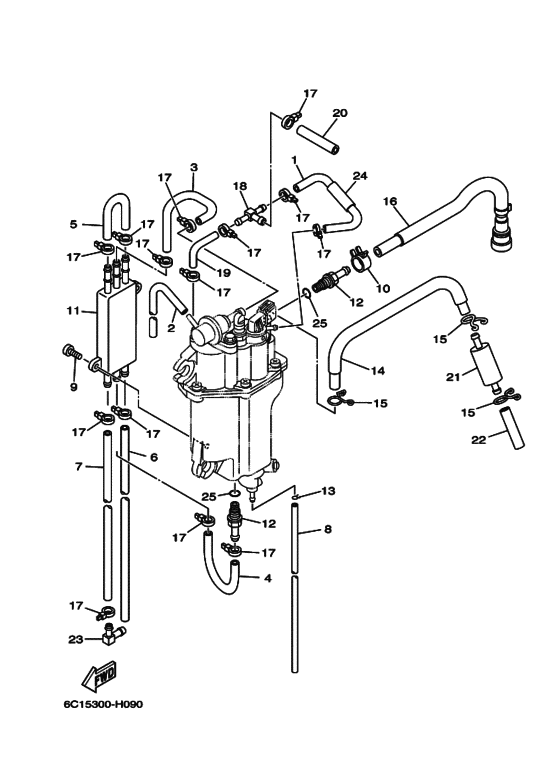

ﾌﾕｴﾙｲﾝｼﾞｴｸｼﾖﾝ ﾎﾟﾝﾌﾟ 2 Diagram Yamaha FT60 ETL/X
- Year
- 2009
- Model
- FT60D
- Model code
- 6C6
- Year
- 2009
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 60
- Sales region
- Japan (080)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6C5-13546-00-00 Hose 2ホース ２; |
6C5-13546-00-00 |
from US $18.70 |
||
|
2
|
2
6C5-13542-00-00 Hose, Vacuum Sensing 1 |
6C5-13542-00-00 |
from US $20.97 |
||
|
3
|
3
6C5-24321-00-00 Pipe 10 |
6C5-24321-00-00 |
US $21.68 |
||
| replacement | |||||
|
3
|
3
6C5-24321-20-00 Pipe 10 |
6C5-24321-20-00 |
from US $68.15 |
||
|
4
|
4
6C5-24322-00-00 Pipe 11 |
6C5-24322-00-00 |
US $21.39 |
||
| replacement | |||||
|
4
|
4
6C5-24322-20-00 Pipe 11 |
6C5-24322-20-00 |
from US $66.31 |
||
|
5
|
5
6C5-24323-00-00 Pipe 12 |
6C5-24323-00-00 |
from US $23.66 |
||
|
6
|
6
6C5-24324-00-00 Pipe 13 (L150)パイプ １３ ; Ｌ１５０ |
6C5-24324-00-00 |
US $12.19 |
||
|
7
|
7
6C5-24325-00-00 Pipe 14 (L110)パイプ １４ ; Ｌ１１０ |
6C5-24325-00-00 |
US $15.86 |
||
|
8
|
8
6C5-14149-00-00
Pipe (L200)
パイプ ; Ｌ２００ |
6C5-14149-00-00 |
— | ||
|
9
|
9
6C5-24444-00-00 Screw |
6C5-24444-00-00 |
from US $3.97 |
||
|
10
|
10
6C5-13577-00-00 Clip |
6C5-13577-00-00 |
from US $3.26 |
||
|
11
|
11
6C5-21841-00-00 Coolerクーラー; |
6C5-21841-00-00 |
US $150.59 |
||
| replacement | |||||
|
11
|
11
6C5-21841-01-00 Coolerクーラー; |
6C5-21841-01-00 |
from US $150.59 |
||
|
12
|
12
6C5-14251-00-00 Nipple |
6C5-14251-00-00 |
from US $48.22 |
||
|
13
|
13
6C5-2411M-00-00 Clip |
6C5-2411M-00-00 |
from US $9.35 |
||
|
14
|
14
6C5-14148-00-00 Pipe |
6C5-14148-00-00 |
US $40.90 |
||
| replacement | |||||
|
14
|
14
6C5-14148-20-00 Pipe |
6C5-14148-20-00 |
from US $126.36 |
||
|
15
|
15
6C5-24387-00-00 Clipクリツプ; |
6C5-24387-00-00 |
from US $8.78 |
||
|
16
|
16
6C5-13974-00-00 Pipe, Fuel 4 |
6C5-13974-00-00 |
from US $96.02 |
||
|
17
|
17
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
17
|
17
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
18
|
18
6C5-24379-00-00 Pipe, Joint 4 |
6C5-24379-00-00 |
from US $5.95 |
||
|
19
|
19
6C5-13545-00-00 Hose 1ホース １; |
6C5-13545-00-00 |
from US $14.45 |
||
|
20
|
20
6C5-13547-00-00 Hose 3ホース ３; |
6C5-13547-00-00 |
from US $15.02 |
||
|
21
|
21
6C5-24251-00-00
Strainer 1
ストレーナー １; |
6C5-24251-00-00 |
— | ||
| replacement | |||||
|
21
|
21
6C5-24251-01-00 STRAINER 1ストレーナー １; |
6C5-24251-01-00 |
from US $21.62 |
||
|
22
|
22
6C5-2451B-00-00 Hose, Fuel Inlet |
6C5-2451B-00-00 |
US $4.68 |
||
| replacement | |||||
|
22
|
22
6C5-2451B-20-00 Hose, Fuel Inlet |
6C5-2451B-20-00 |
from US $12.65 |
||
|
23
|
23
6C5-1410F-00-00 Connector |
6C5-1410F-00-00 |
from US $6.94 |
||
|
24
|
24
6C5-13548-00-00 Hose, Air 4ホース，エア ４; |
6C5-13548-00-00 |
from US $5.53 |
||
|
25
|
25
6C5-13739-00-00 O-Ring |
6C5-13739-00-00 |
from US $6.38 |
||
