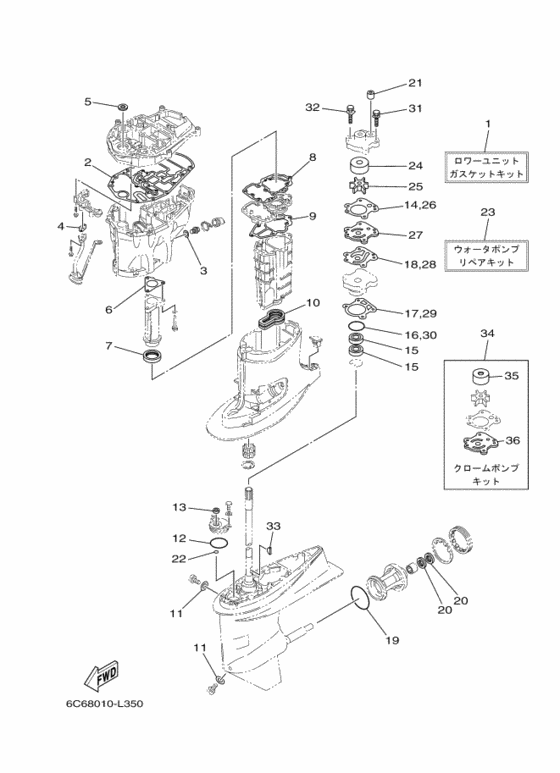

リペアキツト 2 Diagram Yamaha FT60 ETX
- Year
- 2012
- Model
- FT60D
- Model code
- 6C68
- Year
- 2012
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 60
- Sales region
- Japan (110)
- Colour
- Dark Bluish Gray 1 (DBN1; 008D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6C6-W0001-20-00 Lower Unit Gasket Kit |
6C6-W0001-20-00 |
from US $224.92 |
||
|
2
|
2
6C5-15312-01-00 Gasket, Oil Pan |
6C5-15312-01-00 |
from US $53.15 |
||
|
3
|
3
904-3014M-09-00 Gasket |
904-3014M-09-00 |
from US $1.50 |
||
| replacement | |||||
|
3
|
3
90430-14228-00 Gasket(N261) |
90430-14228-00 |
from US $4.99 |
||
|
4
|
4
6C5-13414-01-00 Gasket, Strainer Cover |
6C5-13414-01-00 |
from US $4.25 |
||
|
5
|
5
93103-18011-00 Oil Seal |
93103-18011-00 |
from US $24.14 |
||
|
6
|
6
6C5-41133-00-00 Gasket, Exhaust Manifold 1 |
6C5-41133-00-00 |
from US $4.03 |
||
|
7
|
7
6C5-46132-00-00 Gasket 1 |
6C5-46132-00-00 |
from US $26.08 |
||
|
8
|
8
6C5-41134-00-00 Gasket, Exhaust Manifold |
6C5-41134-00-00 |
from US $21.77 |
||
|
9
|
9
6C5-41135-00-00 Gasket, Exhaust Manifold |
6C5-41135-00-00 |
from US $15.12 |
||
|
10
|
10
6C5-45123-00-00 Gasket, Muffler |
6C5-45123-00-00 |
from US $13.60 |
||
|
11
|
11
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
11
|
11
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
12
|
12
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.94 |
||
|
13
|
13
931-06090-14-00 Oil Seal |
931-06090-14-00 |
from US $3.13 |
||
|
14
|
14
6H3-44315-A0-00 Gasket, Water Pump |
6H3-44315-A0-00 |
from US $4.82 |
||
|
15
|
15
93101-23070-00 Oil Seal |
93101-23070-00 |
from US $11.12 |
||
|
16
|
16
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
17
|
17
688-44316-A0-00 Gasket, Water Pump |
688-44316-A0-00 |
from US $3.72 |
||
|
18
|
18
6H3-44324-A0-00 Gasket, Cartridge |
6H3-44324-A0-00 |
from US $4.11 |
||
|
19
|
19
932-1086M-39-00 O-Ring |
932-1086M-39-00 |
from US $7.62 |
||
|
20
|
20
931-0125M-03-00 Oil Seal |
931-0125M-03-00 |
from US $4.72 |
||
|
21
|
21
663-44366-00-00 Damper, Water Seal 2 |
663-44366-00-00 |
from US $3.74 |
||
|
22
|
22
93210-07003-00 O-Ring |
93210-07003-00 |
from US $1.81 |
||
| replacement | |||||
|
22
|
22
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.81 |
||
|
23
|
23
6H3-W0078-02-00 Water Pump Repair Kit |
6H3-W0078-02-00 |
from US $49.72 |
||
|
24
|
24
663-44322-00-00 Insert, Cartridge |
663-44322-00-00 |
from US $12.12 |
||
|
25
|
25
6H3-44352-00-00 Impeller |
6H3-44352-00-00 |
from US $22.47 |
||
|
26
|
26
6H3-44315-A0-00 Gasket, Water Pump |
6H3-44315-A0-00 |
from US $4.82 |
||
|
27
|
27
6H3-44323-00-00 Outer Plate, Cartridge |
6H3-44323-00-00 |
from US $7.08 |
||
|
28
|
28
6H3-44324-A0-00 Gasket, Cartridge |
6H3-44324-A0-00 |
from US $4.11 |
||
|
29
|
29
688-44316-A0-00 Gasket, Water Pump |
688-44316-A0-00 |
from US $3.72 |
||
|
30
|
30
932-10460-44-00 O-Ring |
932-10460-44-00 |
from US $2.77 |
||
|
31
|
31
90119-08M14-00 Bolt, With Washer |
90119-08M14-00 |
from US $3.10 |
||
|
32
|
32
90119-08M33-00 Bolt, With Washer |
90119-08M33-00 |
from US $6.94 |
||
|
33
|
33
902-8003M-03-00 Key, Woodruff |
902-8003M-03-00 |
from US $7.76 |
||
|
34
|
34
6H3-W0078-1A-00 Chrome Pump Kit |
6H3-W0078-1A-00 |
from US $62.03 |
||
|
35
|
35
663-44322-40-00 Insert, Cartridge |
663-44322-40-00 |
from US $48.36 |
||
|
36
|
36
6H3-44323-40-00 Outer Plate, Cartridge |
6H3-44323-40-00 |
from US $14.03 |
||
