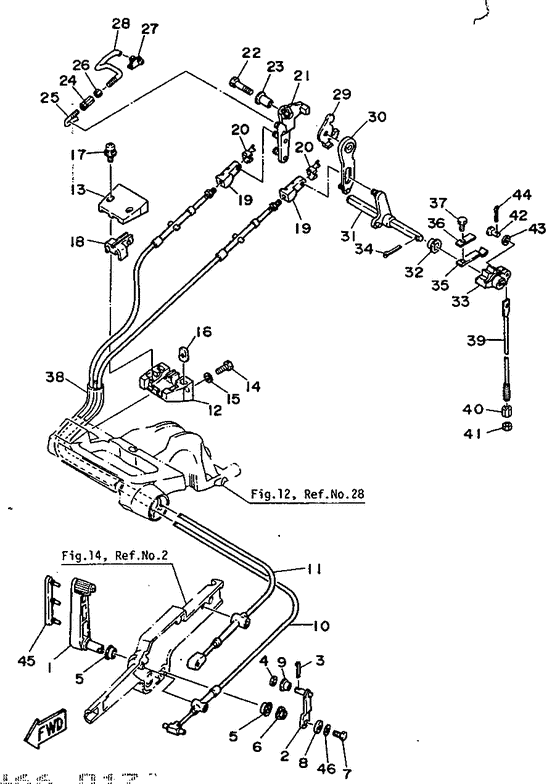

Control Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1985
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-44121-00-00
Lever, Shift Rod
|
6G8-44121-00-00 |
— | ||
|
02
|
02
6G8-44123-00-00
Arm, Shift Rod
|
6G8-44123-00-00 |
— | ||
|
03
|
03
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
04
|
04
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
|
05
|
05
90386-12069-00 Bush |
90386-12069-00 |
from US $1.94 |
||
|
06
|
06
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
07
|
07
973-13060-16-00
Bolt, Hexagon
|
973-13060-16-00 |
— | ||
| replacements | |||||
|
07
|
07
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
07
|
07
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
08
|
08
90201-16M94-00
Washer, Plate
|
90201-16M94-00 |
— | ||
|
09
|
09
90386-05M54-00 Bush |
90386-05M54-00 |
US $10.73 |
||
|
10
|
10
6G8-48311-00-00
Cable
|
6G8-48311-00-00 |
— | ||
| replacement | |||||
|
10
|
10
6G8-48311-09-00
Cable
|
6G8-48311-09-00 |
— | ||
|
10
|
10
6G8-48311-10-00
Cable
Ap |
6G8-48311-10-00 |
— | ||
| replacement | |||||
|
10
|
10
6G8-48311-11-00
Cable
Ap |
6G8-48311-11-00 |
— | ||
|
11
|
11
6G8-48321-00-00
Cable
|
6G8-48321-00-00 |
— | ||
| replacement | |||||
|
11
|
11
6G8-48321-09-00
Cable
|
6G8-48321-09-00 |
— | ||
|
11
|
11
6G8-48321-10-00
Cable
Ap |
6G8-48321-10-00 |
— | ||
|
12
|
12
6G8-41661-00-00 Bracket |
6G8-41661-00-00 |
US $22.24 |
||
| replacement | |||||
|
12
|
12
6G8-41661-00-98 Bracket 1 |
6G8-41661-00-98 |
from US $21.98 |
||
|
13
|
13
6G8-41662-00-00 BracketBracket 2 |
6G8-41662-00-00 |
US $15.87 |
||
| replacement | |||||
|
13
|
13
6G8-41662-00-98 Bracket 2 |
6G8-41662-00-98 |
from US $15.87 |
||
|
14
|
14
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
14
|
14
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
14
|
14
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6G8-41654-00-00 Nut |
6G8-41654-00-00 |
from US $6.38 |
||
|
17
|
17
90159-05M06-00 Screw, With Washer |
90159-05M06-00 |
from US $2.55 |
||
|
18
|
18
6G8-41663-00-00 Bracket 3 |
6G8-41663-00-00 |
from US $4.96 |
||
|
19
|
19
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.72 |
||
|
20
|
20
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
from US $4.82 |
||
|
21
|
21
6G8-41212-00-00 Arm, Accel |
6G8-41212-00-00 |
from US $19.84 |
||
|
22
|
22
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
23
|
23
90387-06M58-00 Collar |
90387-06M58-00 |
from US $4.39 |
||
|
24
|
24
6G8-41238-00-00
Joint, Link 1
|
6G8-41238-00-00 |
— | ||
|
25
|
25
6G8-41241-00-00
Rod 1
|
6G8-41241-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
95380-04600-00 Nut |
95380-04600-00 |
US $1.07 |
||
| replacement | |||||
|
26
|
26
95303-04600-00 Nut |
95303-04600-00 |
from US $2.55 |
||
|
27
|
27
6G8-41237-00-00 Joint, LinkJoint, link 2 |
6G8-41237-00-00 |
US $10.77 |
||
| replacement | |||||
|
27
|
27
6G8-41237-01-00 Joint, Link |
6G8-41237-01-00 |
from US $10.77 |
||
|
28
|
28
6G8-41242-00-00
Rod 2
|
6G8-41242-00-00 |
— | ||
| replacements | |||||
|
28
|
28
6G8-41242-00-KT
BRACKET 2
|
6G8-41242-00-KT |
— | ||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
6G8-14493-00-00 Stay 1 |
6G8-14493-00-00 |
US $2.94 |
||
|
30
|
30
6G8-44111-00-00 Handle, Gear Shift |
6G8-44111-00-00 |
from US $22.48 |
||
|
31
|
31
6G8-44159-00-00 Handle, Gear Shift |
6G8-44159-00-00 |
from US $20.54 |
||
|
32
|
32
682-44132-00-00 Bushing |
682-44132-00-00 |
from US $7.93 |
||
|
33
|
33
6G8-44141-00-00
Link, Shift Rod
|
6G8-44141-00-00 |
— | ||
|
34
|
34
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.52 |
||
|
35
|
35
682-44116-00-00
Spring
|
682-44116-00-00 |
— | ||
|
36
|
36
682-44117-00-00 Bracket |
682-44117-00-00 |
from US $3.52 |
||
|
37
|
37
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
37
|
37
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
37
|
37
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
38
|
38
90445-20ME5-00
Hose
Ap |
90445-20ME5-00 |
— | ||
|
38
|
38
90445-20ME4-00
Hose
|
90445-20ME4-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
6G8-44143-10-00 Rod, Shift |
6G8-44143-10-00 |
from US $28.15 |
||
|
40
|
40
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
40
|
40
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
41
|
41
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
41
|
41
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
42
|
42
91790-05020-00 Pin, Clevis |
91790-05020-00 |
US $2.64 |
||
|
43
|
43
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
44
|
44
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.70 |
||
|
45
|
45
6G8-42129-00-00
Bushing, Rubber
|
6G8-42129-00-00 |
— | ||
|
46
|
46
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
46
|
46
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
