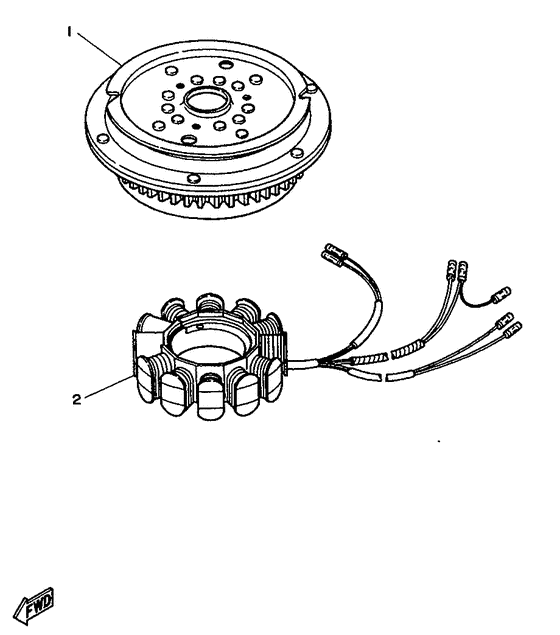

Generator (F9.9AEM/F9.9AE MODEL) Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1992
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-85550-00-00
Rotor Assembly
|
6G8-85550-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
01
|
01
6G8-85550-01-00
Rotor Assy
|
6G8-85550-01-00 |
— | ||
|
02
|
02
6G8-85510-01-00 Stator Assy |
6G8-85510-01-00 |
from US $397.51 |
||
|
02
|
02
6G8-85510-00-00
Stator Assembly
|
6G8-85510-00-00 |
— | ||
