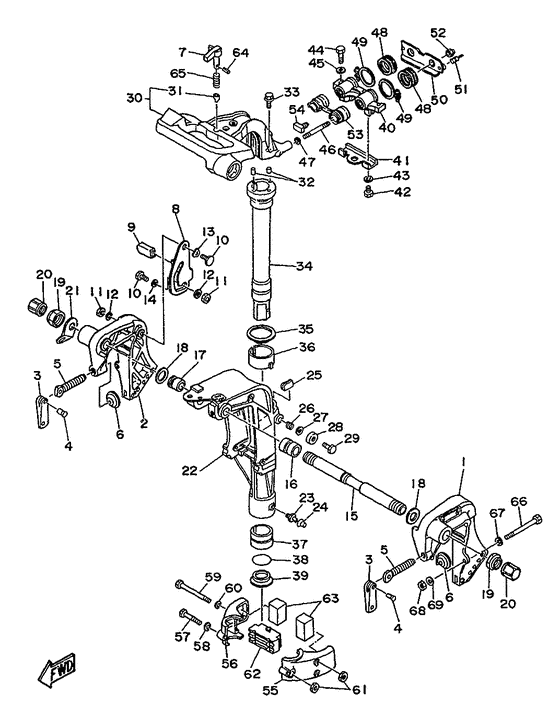

Bracket 1 Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1996
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-43111-04-4D Bracket, Clamp 1 |
6G8-43111-04-4D |
US $75.87 |
||
| replacement | |||||
|
01
|
01
6G8-43111-04-8D
BRACKET, CLAMP 1
|
6G8-43111-04-8D |
— | ||
|
02
|
02
6G8-43112-04-4D Bracket, Clamp 2 |
6G8-43112-04-4D |
US $136.50 |
||
| replacement | |||||
|
02
|
02
6G8-43112-04-8D BRACKET, CLAMP 2 |
6G8-43112-04-8D |
from US $75.87 |
||
|
03
|
03
616-43118-01-4D Handle, Transom Clamp |
616-43118-01-4D |
US $13.60 |
||
| replacement | |||||
|
03
|
03
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
04
|
04
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
05
|
05
6E7-43116-00-00
Screw, Transom Clamp
|
6E7-43116-00-00 |
— | ||
| replacements | |||||
|
05
|
05
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $30.79 |
||
|
05
|
05
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $15.16 |
||
|
06
|
06
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
07
|
07
6G8-42561-00-00 Knob, Steering Lock |
6G8-42561-00-00 |
US $15.35 |
||
|
08
|
08
6G8-43181-00-00 Lever, Tilt Stop 1 |
6G8-43181-00-00 |
from US $24.37 |
||
|
09
|
09
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.89 |
||
|
10
|
10
90109-06M25-00 Bolt |
90109-06M25-00 |
from US $11.76 |
||
|
11
|
11
95680-06100-00 Nut, U |
95680-06100-00 |
from US $6.09 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
90206-10M15-00 Washer, Wave |
90206-10M15-00 |
from US $4.96 |
||
|
14
|
14
682-43339-01-00 Washer |
682-43339-01-00 |
from US $8.64 |
||
|
15
|
15
6G8-43131-00-00 Bolt, Clamp Bracket |
6G8-43131-00-00 |
from US $51.53 |
||
|
16
|
16
90386-22M92-00 Bush |
90386-22M92-00 |
from US $7.23 |
||
|
17
|
17
90386-22M93-00 Bush |
90386-22M93-00 |
from US $7.23 |
||
|
18
|
18
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $4.11 |
||
|
19
|
19
90185-22M11-00 Nut, Self-Locking |
90185-22M11-00 |
US $33.44 |
||
| replacement | |||||
|
19
|
19
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
20
|
20
6G5-43145-00-00 Cap, Clamp Bracket |
6G5-43145-00-00 |
US $7.07 |
||
| replacement | |||||
|
20
|
20
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
21
|
21
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
22
|
22
6G8-43311-15-4D Bracket, Swivel 1Ur long/ultra long |
6G8-43311-15-4D |
from US $303.95 |
||
|
22
|
22
6G9-43311-04-4D Bracket, Swivel 1Ur short |
6G9-43311-04-4D |
US $173.54 |
||
|
23
|
23
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
24
|
24
663-45119-00-00 Cap, Grease NippleAp |
663-45119-00-00 |
US $3.89 |
||
|
25
|
25
6G8-42528-00-00 Plate, Friction |
6G8-42528-00-00 |
US $3.52 |
||
|
26
|
26
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
27
|
27
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
28
|
28
6G8-43373-00-00 Seal, Damper |
6G8-43373-00-00 |
from US $2.83 |
||
|
29
|
29
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
29
|
29
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
30
|
30
6G8-42511-02-4D Bracket, Steering |
6G8-42511-02-4D |
US $241.78 |
||
| replacement | |||||
|
30
|
30
6G8-42511-02-8D Bracket, Steering |
6G8-42511-02-8D |
US $279.56 |
||
|
31
|
31
6G8-42534-00-00 Pin, Dowel |
6G8-42534-00-00 |
US $4.26 |
||
|
32
|
32
93605-15065-00 Pin, Dowel |
93605-15065-00 |
from US $3.12 |
||
|
33
|
33
90119-06M06-00
Bolt, With Washer
|
90119-06M06-00 |
— | ||
|
56
|
56
6G8-44552-02-4D Housing, Lower Mount Rubber |
6G8-44552-02-4D |
US $34.67 |
||
|
57
|
57
97095-06045-00 Bolt |
97095-06045-00 |
from US $3.04 |
||
| replacement | |||||
|
57
|
57
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
58
|
58
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
59
|
59
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
| replacement | |||||
|
59
|
59
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
60
|
60
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
61
|
61
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
61
|
61
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
62
|
62
6G8-44557-00-00 Mount Damper, Lower Front |
6G8-44557-00-00 |
US $5.73 |
||
|
63
|
63
682-44555-00-00 Mount Damper, Lower Side |
682-44555-00-00 |
from US $11.76 |
||
|
64
|
64
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
65
|
65
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
66
|
66
90101-08M88-00 Bolt |
90101-08M88-00 |
from US $10.20 |
||
|
67
|
67
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
68
|
68
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
69
|
69
90201-08MA4-00 Washer, Plate |
90201-08MA4-00 |
from US $7.37 |
||
