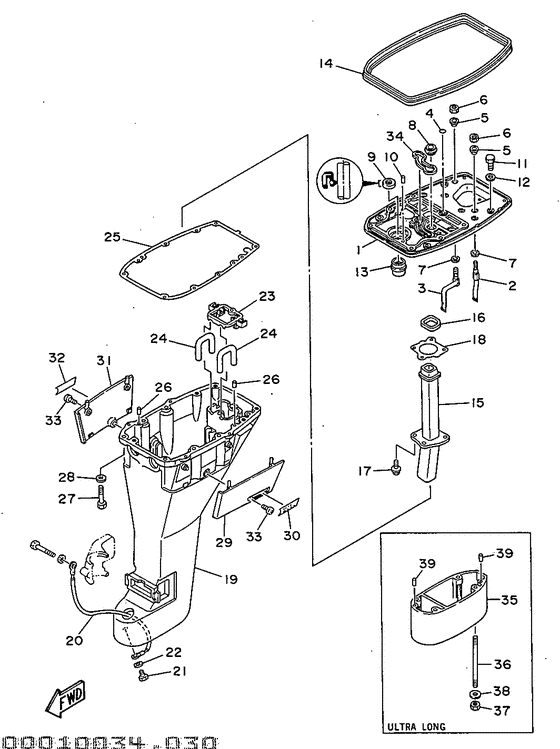

Upper casing Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1997
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G8-41137-04-94 Guide, Exhaust |
6G8-41137-04-94 |
US $186.52 |
||
| replacement | |||||
|
01
|
01
6G8-41137-04-CA Guide, Exhaust |
6G8-41137-04-CA |
from US $102.84 |
||
|
02
|
02
6G8-12483-00-00 Pipe 3 |
6G8-12483-00-00 |
US $36.57 |
||
|
03
|
03
6G8-12484-00-00 Pipe 4 |
6G8-12484-00-00 |
from US $36.57 |
||
|
04
|
04
93210-08M60-00 O-Ring |
93210-08M60-00 |
from US $2.55 |
||
|
05
|
05
90386-10M70-00 Bush |
90386-10M70-00 |
from US $4.11 |
||
|
06
|
06
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
07
|
07
90202-10M03-00 Washer, Plate |
90202-10M03-00 |
from US $3.40 |
||
|
08
|
08
6G8-44367-00-00 Damper, Water Seal 3 |
6G8-44367-00-00 |
from US $6.94 |
||
|
09
|
09
931-0113M-27-00 OIL SEAL. |
931-0113M-27-00 |
from US $10.20 |
||
|
10
|
10
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
11
|
11
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
11
|
11
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
6G8-45135-00-00 Pipe |
6G8-45135-00-00 |
from US $20.94 |
||
|
14
|
14
6G8-42716-00-00 Rubber, Seal 1 |
6G8-42716-00-00 |
from US $20.83 |
||
|
15
|
15
6G8-41131-01-00 Manifold, Ext. 1 |
6G8-41131-01-00 |
from US $185.13 |
||
|
16
|
16
6G8-41138-00-00 Seal, Ext. 1 |
6G8-41138-00-00 |
from US $20.83 |
||
|
17
|
17
90105-06M33-00 Bolt, Flange |
90105-06M33-00 |
from US $2.55 |
||
|
18
|
18
6G8-41133-A0-00 Gasket, Exhaust Manifold 1 |
6G8-41133-A0-00 |
from US $9.63 |
||
|
19
|
19
6G9-45111-03-4D
Casing, Upper
Ur short |
6G9-45111-03-4D |
— | ||
|
19
|
19
6G8-45111-13-4D Casing, UpperUr long/ultra long |
6G8-45111-13-4D |
from US $686.40 |
||
|
20
|
20
6G8-82149-00-00 Wire, Lead 3 |
6G8-82149-00-00 |
US $29.04 |
||
| replacement | |||||
|
20
|
20
6G1-82149-00-00 Wire, Lead 3 |
6G1-82149-00-00 |
from US $29.04 |
||
|
21
|
21
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
6G8-45151-10-00 Cover, Upper Casing |
6G8-45151-10-00 |
from US $7.51 |
||
|
24
|
24
6G8-45136-00-00 Pipe |
6G8-45136-00-00 |
from US $5.14 |
||
|
25
|
25
6G8-45113-A1-00 Gasket, Upper Casing |
6G8-45113-A1-00 |
from US $17.71 |
||
|
26
|
26
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
27
|
27
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
28
|
28
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
29
|
29
6G8-42741-00-4D Apron |
6G8-42741-00-4D |
from US $27.32 |
||
|
30
|
30
6G8-42791-00-00 Mark 1 |
6G8-42791-00-00 |
from US $2.09 |
||
|
31
|
31
6G8-42771-00-4D Apron |
6G8-42771-00-4D |
from US $27.32 |
||
|
32
|
32
6G8-42792-00-00 Mark 2 |
6G8-42792-00-00 |
US $5.94 |
||
|
33
|
33
90157-06M04-00 Screw, Pan Head |
90157-06M04-00 |
US $2.83 |
||
| replacement | |||||
|
33
|
33
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
34
|
34
6G8-11355-00-00 Seal, Cylinder 1 |
6G8-11355-00-00 |
from US $6.66 |
||
|
35
|
35
6G8-45211-20-4D
Extension
Ultra long |
6G8-45211-20-4D |
— | ||
|
36
|
36
90116-08M19-00 Bolt, StudBolt, stud (ultra long) Ultra long |
90116-08M19-00 |
US $10.67 |
||
|
37
|
37
953-80086-00-00
Nut, Hex
Ultra long |
953-80086-00-00 |
— | ||
| replacements | |||||
|
37
|
37
997-80086-00-00 Nut, HexUltra long |
997-80086-00-00 |
from US $1.81 |
||
|
37
|
37
988-80081-00-00 Ybs55-8 Nut (644)Ultra long |
988-80081-00-00 |
from US $1.57 |
||
|
38
|
38
92990-08600-00 Washer, PlateUltra long |
92990-08600-00 |
from US $1.66 |
||
|
39
|
39
936-06120-19-00 Pin, DowelUltra long |
936-06120-19-00 |
from US $2.86 |
||
