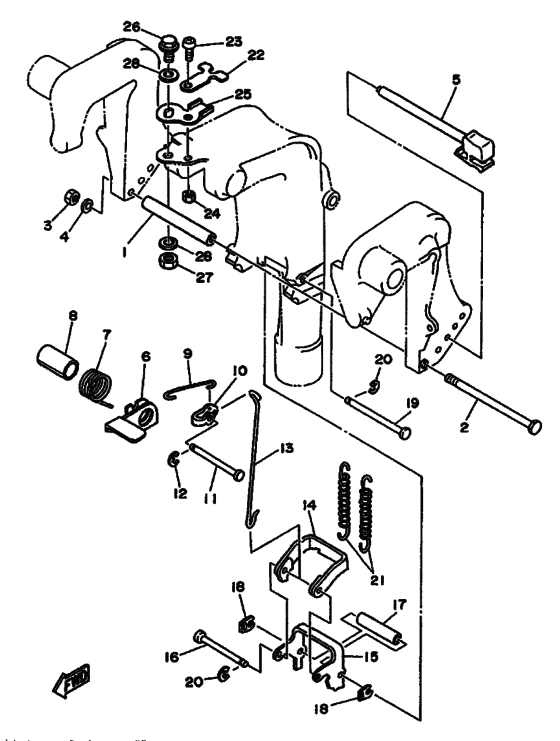

Bracket 2 Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1994
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90387-06M09-00 Collar |
90387-06M09-00 |
from US $10.77 |
||
|
2
|
2
97095-06135-00 Bolt |
97095-06135-00 |
from US $6.94 |
||
|
3
|
3
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
3
|
3
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
6G8-43160-01-00 Tilt Rod Assy |
6G8-43160-01-00 |
from US $37.86 |
||
|
6
|
6
6G8-43631-02-00
Lever, Tilt
|
6G8-43631-02-00 |
— | ||
|
7
|
7
90508-18M33-00 Spring, Torsion |
90508-18M33-00 |
from US $9.78 |
||
|
8
|
8
90386-20M94-00 Bush |
90386-20M94-00 |
from US $10.20 |
||
|
9
|
9
6G8-43616-00-00 Rod, Tilt Lock |
6G8-43616-00-00 |
from US $8.93 |
||
|
10
|
10
682-43641-00-00 Lever, Tilt |
682-43641-00-00 |
US $6.80 |
||
| replacement | |||||
|
10
|
10
682-43641-01-00 Lever, Tilt |
682-43641-01-00 |
from US $6.80 |
||
|
11
|
11
90249-06M20-00 Pin(6G8) |
90249-06M20-00 |
US $3.24 |
||
|
12
|
12
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.66 |
||
|
13
|
13
6G8-43617-00-00 Rod, Tilt Lock |
6G8-43617-00-00 |
from US $9.63 |
||
|
14
|
14
682-43614-00-00 Plate, Tilt Lock |
682-43614-00-00 |
from US $18.99 |
||
|
15
|
15
682-43615-01-00 Plate, Tilt Lock |
682-43615-01-00 |
US $20.69 |
||
| replacement | |||||
|
15
|
15
682-43615-02-00 Plate, Tilt Lock |
682-43615-02-00 |
from US $20.69 |
||
|
16
|
16
682-43611-01-00 Shaft, Tilt Lock |
682-43611-01-00 |
from US $6.52 |
||
|
17
|
17
90387-06M20-00 Collar |
90387-06M20-00 |
from US $6.38 |
||
|
18
|
18
682-43673-00-00 Washer 1 |
682-43673-00-00 |
from US $4.53 |
||
|
19
|
19
682-43659-00-00 Shaft, Reverse Lock |
682-43659-00-00 |
US $7.93 |
||
| replacement | |||||
|
19
|
19
682-43659-01-00 Shaft, Reverse Lock |
682-43659-01-00 |
from US $7.93 |
||
|
20
|
20
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.66 |
||
|
21
|
21
90506-29M16-00 Spring, Tension |
90506-29M16-00 |
US $24.41 |
||
|
22
|
22
6G8-43319-02-09
Plate
|
6G8-43319-02-09 |
— | ||
|
23
|
23
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
24
|
24
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
25
|
25
6G8-42512-01-94
Plate, Control
|
6G8-42512-01-94 |
— | ||
| replacement | |||||
|
25
|
25
6G8-42512-01-00
Plate, Control
|
6G8-42512-01-00 |
— | ||
|
26
|
26
90105-10M30-00 Bolt, Washer Based |
90105-10M30-00 |
from US $5.49 |
||
|
27
|
27
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
28
|
28
90201-10M76-00 Washer, Plate(F9.9AM/F9.9AEM) |
90201-10M76-00 |
from US $7.79 |
||
