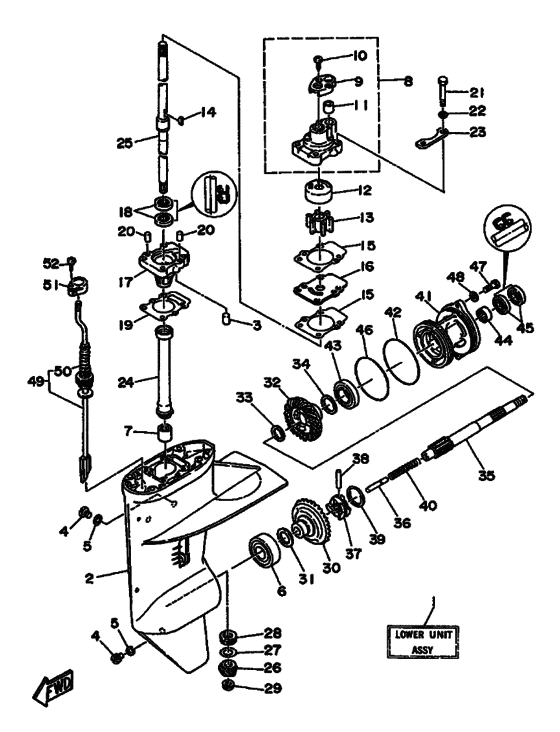

Lower casing & drive Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1994
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-45300-16-4D Lower Unit AssyUR LONG |
6G8-45300-16-4D |
US $1,433.38 |
||
| replacement | |||||
|
1
|
1
6G8-45300-17-8D
LOWER UNIT ASSY
UR LONG |
6G8-45300-17-8D |
— | ||
|
1
|
1
6G8-45300-26-4D Lower Unit AssyUR ULTRA LONG |
6G8-45300-26-4D |
US $2,059.20 |
||
| replacement | |||||
|
1
|
1
6G8-45300-27-8D LOWER UNIT ASSYUR ULTRA LONG |
6G8-45300-27-8D |
US $1,468.80 |
||
|
1
|
1
6G8-45300-06-4D
Lower Unit Assy
UR SHORT |
6G8-45300-06-4D |
— | ||
|
2
|
2
6G8-45311-04-4D Casing, Lower |
6G8-45311-04-4D |
US $309.33 |
||
| replacement | |||||
|
2
|
2
6G8-45311-04-8D
Casing,lower
|
6G8-45311-04-8D |
— | ||
|
3
|
3
93604-08062-00 Pin, Dowel |
93604-08062-00 |
from US $1.81 |
||
|
4
|
4
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
4
|
4
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.74 |
||
|
5
|
5
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
5
|
5
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.36 |
||
|
6
|
6
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.20 |
||
|
7
|
7
93315-213V4-00 Bearing |
93315-213V4-00 |
US $71.10 |
||
|
8
|
8
682-44300-01-00 Housing, Water Pump |
682-44300-01-00 |
US $107.90 |
||
|
9
|
9
682-44312-00-00 Cover, Water Pump Housing |
682-44312-00-00 |
from US $4.39 |
||
|
10
|
10
97780-40112-00 Screw, Oval Head Tapping |
97780-40112-00 |
from US $1.84 |
||
|
11
|
11
682-44365-00-00 Damper, Water Seal 1 |
682-44365-00-00 |
US $3.54 |
||
|
12
|
12
682-44322-00-00 Insert, Cartridge |
682-44322-00-00 |
from US $15.50 |
||
|
13
|
13
682-44352-01-00
Impeller
|
682-44352-01-00 |
— | ||
| replacement | |||||
|
13
|
13
682-44352-03-00 Impeller |
682-44352-03-00 |
from US $22.56 |
||
|
14
|
14
90280-03024-00 Key, Woodruff |
90280-03024-00 |
from US $6.40 |
||
|
15
|
15
682-44315-A0-00 Gasket, Water Pump |
682-44315-A0-00 |
from US $2.36 |
||
|
16
|
16
682-44323-00-00 Outer Plate, Cartridge |
682-44323-00-00 |
from US $10.42 |
||
|
17
|
17
6G8-45331-00-5B Housing, Bearing |
6G8-45331-00-5B |
US $79.03 |
||
| replacement | |||||
|
17
|
17
6G8-45331-00-CA Housing, Bearing |
6G8-45331-00-CA |
from US $43.89 |
||
|
18
|
18
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
18
|
18
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
19
|
19
6G8-45315-A0-00 Packing, Lower Casing |
6G8-45315-A0-00 |
from US $7.08 |
||
|
20
|
20
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
21
|
21
97095-06045-00 Bolt |
97095-06045-00 |
from US $3.04 |
||
| replacement | |||||
|
21
|
21
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
682-44328-00-00 Plate |
682-44328-00-00 |
from US $3.97 |
||
|
24
|
24
6G8-45536-00-00
Sleeve, Drive Shaft
|
6G8-45536-00-00 |
— | ||
|
25
|
25
6G8-45501-10-00
Drive Shaft Comp
UR LONG |
6G8-45501-10-00 |
— | ||
|
25
|
25
6G8-45501-20-00
Drive Shaft Comp
UR ULTRA LONG |
6G8-45501-20-00 |
— | ||
|
25
|
25
6G8-45501-00-00
Drive Shaft Comp
UR SHORT |
6G8-45501-00-00 |
— | ||
|
26
|
26
6G8-45551-00-00
Pinion (13T)
13T |
6G8-45551-00-00 |
— | ||
|
27
|
27
6G8-45587-00-10 Shim (T:0.10Mm)UR |
6G8-45587-00-10 |
US $4.56 |
||
| replacement | |||||
|
27
|
27
6G8-45587-00-00 Shim (T:0.10Mm)UR |
6G8-45587-00-00 |
US $4.56 |
||
|
27
|
27
6G8-45587-00-14 Shim (T:0.14Mm)UR |
6G8-45587-00-14 |
US $4.56 |
||
| replacement | |||||
|
27
|
27
6G8-45587-10-00 Shim (T:0.14Mm)UR |
6G8-45587-10-00 |
from US $4.56 |
||
|
27
|
27
6G8-45587-00-18 Shim (T:0.18Mm)UR |
6G8-45587-00-18 |
US $4.56 |
||
| replacement | |||||
|
27
|
27
6G8-45587-20-00 Shim (T:0.18Mm)UR |
6G8-45587-20-00 |
from US $4.56 |
||
|
27
|
27
6G8-45587-00-35 Shim (T:0.35Mm)UR |
6G8-45587-00-35 |
US $4.56 |
||
| replacement | |||||
|
27
|
27
6G8-45587-30-00 Shim (T:0.35Mm)UR |
6G8-45587-30-00 |
from US $4.56 |
||
|
27
|
27
6G8-45587-00-50 Shim (T:0.50Mm)UR |
6G8-45587-00-50 |
US $4.56 |
||
| replacement | |||||
|
27
|
27
6G8-45587-40-00 Shim (T:0.50Mm)UR |
6G8-45587-40-00 |
from US $4.56 |
||
|
28
|
28
93341-313U3-00 Bearing |
93341-313U3-00 |
US $55.31 |
||
|
29
|
29
901-7908M-06-00 Nut |
901-7908M-06-00 |
from US $4.43 |
||
|
30
|
30
6G8-45560-00-00 GearGear 1 assy (38t) |
6G8-45560-00-00 |
US $104.13 |
||
| replacement | |||||
|
30
|
30
6G8-45560-01-00 Gear 1 (38T) |
6G8-45560-01-00 |
from US $104.13 |
||
|
31
|
31
626-45577-00-01 Shim (T:0.10Mm)UR |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
31
|
31
626-45577-00-00 Shim (T:0.10Mm)UR |
626-45577-00-00 |
from US $4.53 |
||
|
31
|
31
626-45577-00-03 Shim (T:0.30Mm)UR |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
31
|
31
626-45577-20-00 Shim (T:0.30Mm)UR |
626-45577-20-00 |
from US $2.70 |
||
|
31
|
31
626-45577-00-05 Shim (T:0.50Mm)UR |
626-45577-00-05 |
US $4.53 |
||
| replacement | |||||
|
31
|
31
626-45577-40-00 Shim (T:0.50Mm)UR |
626-45577-40-00 |
from US $4.53 |
||
|
32
|
32
6G8-45571-00-00 Gear 2 (38T)Gear 2 (38t) 38T |
6G8-45571-00-00 |
US $180.83 |
||
|
33
|
33
90201-17682-00 Washer, Plate |
90201-17682-00 |
from US $1.84 |
||
|
34
|
34
626-45577-00-01 Shim (T:0.10Mm)UR |
626-45577-00-01 |
US $4.53 |
||
| replacement | |||||
|
34
|
34
626-45577-00-00 Shim (T:0.10Mm)UR |
626-45577-00-00 |
from US $4.53 |
||
|
34
|
34
626-45577-00-03 Shim (T:0.30Mm)UR |
626-45577-00-03 |
US $4.53 |
||
| replacement | |||||
|
34
|
34
626-45577-20-00 Shim (T:0.30Mm)UR |
626-45577-20-00 |
from US $2.70 |
||
|
34
|
34
626-45577-00-05 Shim (T:0.50Mm)UR |
626-45577-00-05 |
US $4.53 |
||
| replacement | |||||
|
34
|
34
626-45577-40-00 Shim (T:0.50Mm)UR |
626-45577-40-00 |
from US $4.53 |
||
|
35
|
35
6G8-45611-00-00 Shaft, Propeller |
6G8-45611-00-00 |
US $239.45 |
||
|
36
|
36
650-45635-00-00 Plunger, Shift |
650-45635-00-00 |
from US $4.04 |
||
|
37
|
37
682-45631-00-00 Clutch, Dog |
682-45631-00-00 |
from US $33.68 |
||
|
38
|
38
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2.36 |
||
|
39
|
39
648-45633-00-00
Ring, Cross Pin
|
648-45633-00-00 |
— | ||
| replacement | |||||
|
39
|
39
648-45633-11-00 RING, CROSS PIN |
648-45633-11-00 |
from US $2.35 |
||
|
40
|
40
90501-14M06-00 Spring, Compression |
90501-14M06-00 |
US $4.39 |
||
| replacement | |||||
|
40
|
40
90501-14M09-00 Spring, Compression |
90501-14M09-00 |
from US $3.38 |
||
|
41
|
41
6G8-45361-01-4D Cap, Lower Casing |
6G8-45361-01-4D |
US $129.59 |
||
| replacement | |||||
|
41
|
41
6G8-45361-01-8D CAP, LOWER CASING |
6G8-45361-01-8D |
US $81.31 |
||
|
42
|
42
93210-74316-00 O-Ring |
93210-74316-00 |
from US $3.04 |
||
|
43
|
43
93306-00518-00 Bearing(1Kj) |
93306-00518-00 |
from US $14.88 |
||
| replacement | |||||
|
43
|
43
933-06005-19-00 Bearing |
933-06005-19-00 |
from US $14.70 |
||
|
44
|
44
93315-317U2-00 Bearing |
93315-317U2-00 |
from US $8.74 |
||
|
45
|
45
931-01170-54-00 Oil Seal |
931-01170-54-00 |
from US $9.10 |
||
|
46
|
46
93210-74M68-00 O-Ring |
93210-74M68-00 |
from US $7.07 |
||
|
47
|
47
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
47
|
47
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
49
|
49
6G8-44150-10-00 Shift Cam AssyShift cam assy (long) UR LONG |
6G8-44150-10-00 |
US $104.90 |
||
|
49
|
49
6G8-44150-20-00 Shift Cam AssyUR ULTRA LONG |
6G8-44150-20-00 |
US $110.18 |
||
|
49
|
49
6G8-44150-00-00
Shift Cam Assy
UR SHORT |
6G8-44150-00-00 |
— | ||
|
50
|
50
682-44147-00-00 Boot, Shift Rod |
682-44147-00-00 |
from US $7.08 |
||
|
51
|
51
682-44176-00-00 Bracket |
682-44176-00-00 |
from US $6.23 |
||
|
52
|
52
97780-50110-00 Screw, Pan Head |
97780-50110-00 |
from US $2.27 |
||
| replacement | |||||
|
52
|
52
97780-50610-00 Screw, Tapping |
97780-50610-00 |
from US $2.27 |
||
