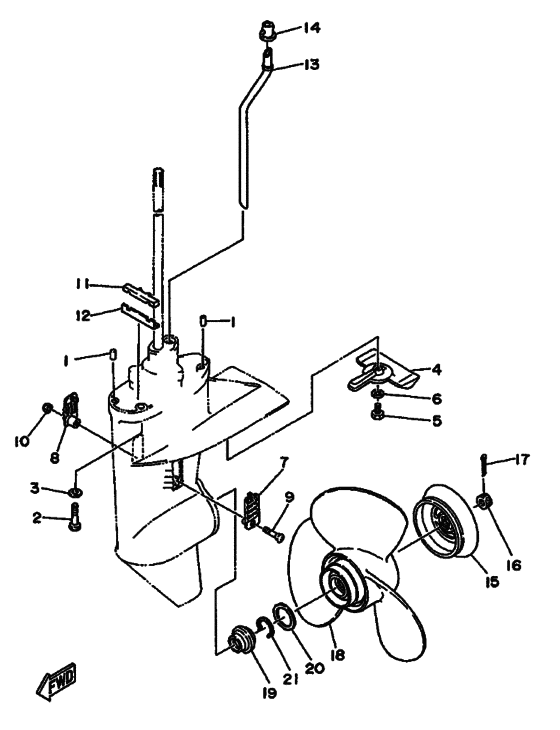

Lower casing & drive Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1994
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
2
|
2
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
2
|
2
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
2
|
2
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
3
|
3
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
4
|
4
6G8-45251-00-00 Anode |
6G8-45251-00-00 |
US $21.54 |
||
| replacement | |||||
|
4
|
4
6G8-45251-01-00 Anode |
6G8-45251-01-00 |
from US $21.54 |
||
|
5
|
5
95895-06020-00 Bolt, Flange |
95895-06020-00 |
US $1.42 |
||
| replacements | |||||
|
5
|
5
95880-06020-00 Bolt, Flange(Jk3) |
95880-06020-00 |
from US $1.56 |
||
|
5
|
5
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
5
|
5
95D95-06020-00 Bolt, Flange Deep Re |
95D95-06020-00 |
from US $1.07 |
||
|
6
|
6
92990-06300-00 Washer, Internal Tooth |
92990-06300-00 |
from US $1.84 |
||
|
7
|
7
6G8-45214-00-00 Cover, Water Inlet 1 |
6G8-45214-00-00 |
US $16.40 |
||
|
8
|
8
6G8-45215-00-00 Cover, Water Inlet 2 |
6G8-45215-00-00 |
US $16.40 |
||
|
9
|
9
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
9
|
9
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
10
|
10
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
11
|
11
682-45375-01-00 Damper, Seal |
682-45375-01-00 |
US $4.68 |
||
|
12
|
12
682-45376-01-00 Guide, Seal Damper |
682-45376-01-00 |
from US $5.67 |
||
|
13
|
13
6G8-44361-10-00
Tube, Water 1
UR LONG |
6G8-44361-10-00 |
— | ||
|
13
|
13
6G8-44361-20-00
Tube, Water
UR ULTRA LONG |
6G8-44361-20-00 |
— | ||
|
13
|
13
6G9-44361-00-00
Tube, Water 1
UR SHORT |
6G9-44361-00-00 |
— | ||
|
14
|
14
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
15
|
15
6G8-45986-00-00 Ring, Deflector |
6G8-45986-00-00 |
from US $27.91 |
||
|
16
|
16
90171-10M07-00 Nut, Castle |
90171-10M07-00 |
from US $10.63 |
||
|
17
|
17
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
18
|
18
6G8-45941-00-00 Propeller (3X11" X 11-3/4"-R)3X11-3/4"X11"-R; UR |
6G8-45941-00-00 |
from US $145.07 |
||
|
18
|
18
6G8-45943-00-00 Propeller (3X11-3/4"x9-1/4"-R)3X11-3/4"X9-1/4"-R; UR |
6G8-45943-00-00 |
from US $145.07 |
||
|
18
|
18
6G8-45945-00-00 Propeller(3X11-3/4"x12-1/4"-R)UR |
6G8-45945-00-00 |
from US $145.07 |
||
|
18
|
18
6G8-45947-00-EL Propeller (3X11-3/4"x9-1/4"-R)3X11-3/4"X9-1/4"-R; UR ALUMINIUM |
6G8-45947-00-EL |
US $145.07 |
||
| replacement | |||||
|
18
|
18
6G8-45947-00-00 Propeller (3X11-3/4"x9-1/4"-R)3X11-3/4"X9-1/4"-R; UR ALUMINIUM |
6G8-45947-00-00 |
from US $145.07 |
||
|
19
|
19
6G8-45987-02-00 Spacer 1 |
6G8-45987-02-00 |
from US $27.06 |
||
|
20
|
20
90201-31MA3-00 Washer, Plate |
90201-31MA3-00 |
from US $2.69 |
||
|
21
|
21
93450-10M04-00 Circlip |
93450-10M04-00 |
from US $7.37 |
||
