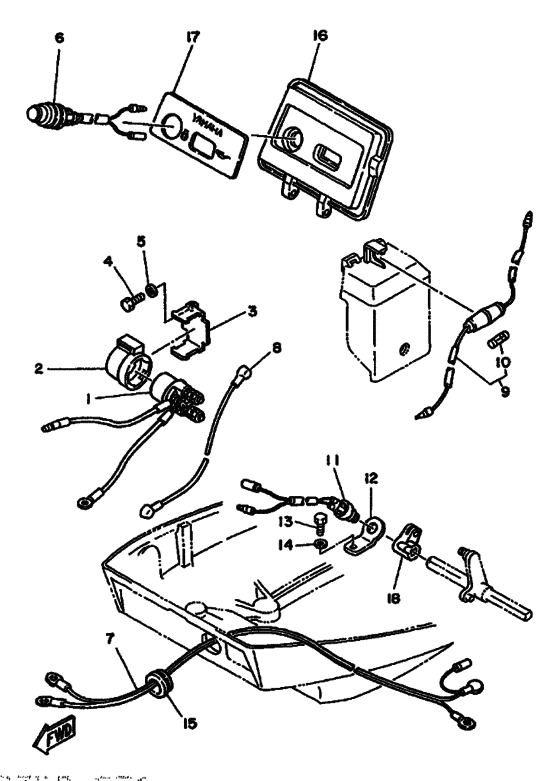

Electrical 1 Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1991
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (999)
- Colour
- Harbor White (HW; 00EL)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J0-81941-10-00 Starter Rely Assy |
6J0-81941-10-00 |
from US $114.81 |
||
|
2
|
2
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
3
|
3
6G8-81953-00-00 Stay, Relay |
6G8-81953-00-00 |
from US $13.18 |
||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
6
|
6
6G8-81870-00-00 Starting Switch Assy |
6G8-81870-00-00 |
from US $34.99 |
||
|
7
|
7
6G8-82105-00-00 Battery Cable |
6G8-82105-00-00 |
US $111.30 |
||
| replacement | |||||
|
7
|
7
6G8-82105-02-00 Battery Cable |
6G8-82105-02-00 |
US $111.30 |
||
|
8
|
8
6G8-82117-00-00 Wire, Lead |
6G8-82117-00-00 |
US $20.40 |
||
| replacement | |||||
|
8
|
8
6H4-82117-00-00 Wire, Lead |
6H4-82117-00-00 |
US $20.40 |
||
|
9
|
9
6G8-82150-00-00 Fuse Holder Assy |
6G8-82150-00-00 |
US $20.83 |
||
|
10
|
10
682-82151-00-00 Fuse |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
10
|
10
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
10
|
10
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
11
|
11
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
11
|
11
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
12
|
12
6G8-82554-00-00 Stay, Neutral Switch |
6G8-82554-00-00 |
US $6.17 |
||
|
13
|
13
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
6G8-42724-40-00 Grommet |
6G8-42724-40-00 |
from US $3.59 |
||
|
16
|
16
6G8-W4261-10-00
Panel, Front Upper
|
6G8-W4261-10-00 |
— | ||
|
17
|
17
6G8-42677-10-00
Graphic, Front
|
6G8-42677-10-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
6G8-44125-00-00
Lever, Shift Rod
(F9.9AE MODEL) |
6G8-44125-00-00 |
— | ||
