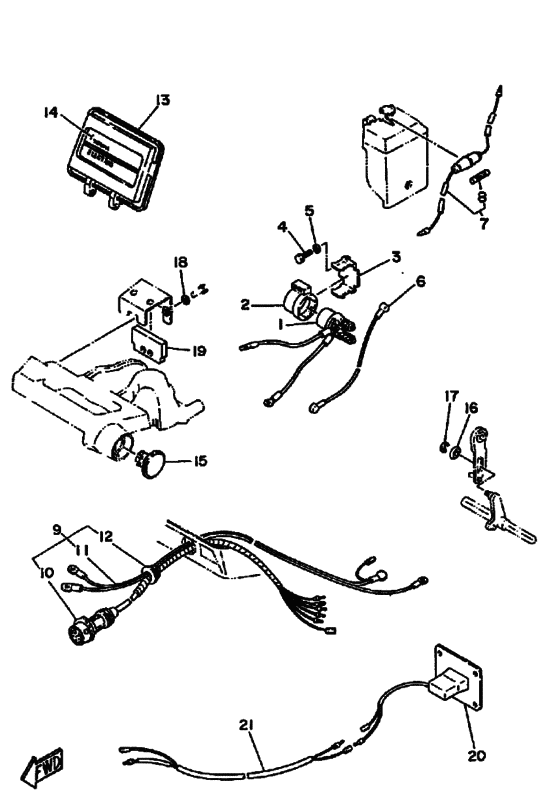

Electrical 2 Diagram Yamaha FT9.9 M(E)HS/L
- Year
- 1998
- Model
- FT9.9A
- Model code
- 6G8
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- Europe (090)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6J0-81941-10-00 Starter Rely Assy |
6J0-81941-10-00 |
from US $114.81 |
||
|
2
|
2
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
3
|
3
6G8-81953-00-00 Stay, Relay |
6G8-81953-00-00 |
from US $13.18 |
||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646)P66 |
929-90066-00-00 |
from US $1.39 |
||
|
6
|
6
6G8-82117-00-00 Wire, Lead |
6G8-82117-00-00 |
US $20.40 |
||
| replacement | |||||
|
6
|
6
6H4-82117-00-00 Wire, Lead |
6H4-82117-00-00 |
US $20.40 |
||
|
7
|
7
6G8-82150-00-00 Fuse Holder Assy |
6G8-82150-00-00 |
US $20.83 |
||
|
8
|
8
682-82151-00-00 Fuse12V 20AMP |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
8
|
8
682-82151-01-00 Fuse (20A)12V 20AMP |
682-82151-01-00 |
US $1.81 |
||
|
8
|
8
682-82151-02-00 FUSE12V 20AMP |
682-82151-02-00 |
from US $1.81 |
||
|
9
|
9
6G8-82580-00-00 Wire Harness Assy 2 |
6G8-82580-00-00 |
US $380.30 |
||
|
10
|
10
6G8-82590-00-00
Wire Harness Assy
|
6G8-82590-00-00 |
— | ||
|
11
|
11
6G8-82105-01-00 Battery Cable |
6G8-82105-01-00 |
US $111.30 |
||
| replacement | |||||
|
11
|
11
6G8-82105-02-00 Battery Cable |
6G8-82105-02-00 |
US $111.30 |
||
|
12
|
12
6G8-42724-50-00
Grommet
|
6G8-42724-50-00 |
— | ||
|
13
|
13
6G8-42614-12-00 Panel, Front Upper |
6G8-42614-12-00 |
US $15.86 |
||
|
14
|
14
6G8-42677-20-00
Graphic, Front
|
6G8-42677-20-00 |
— | ||
|
15
|
15
6G8-42551-00-00 Grommet |
6G8-42551-00-00 |
US $16.20 |
||
|
16
|
16
90387-06M73-00 Collar |
90387-06M73-00 |
US $3.67 |
||
|
17
|
17
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.66 |
||
| replacement | |||||
|
17
|
17
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646)P66 |
929-90066-00-00 |
from US $1.39 |
||
|
19
|
19
6G8-48351-51-00 Seal Rubber |
6G8-48351-51-00 |
from US $20.54 |
||
|
20
|
20
6G8-83530-00-00
Pilot Light Assy
|
6G8-83530-00-00 |
— | ||
|
21
|
21
6G8-82541-00-00 Wire, Lead |
6G8-82541-00-00 |
US $28.65 |
||
