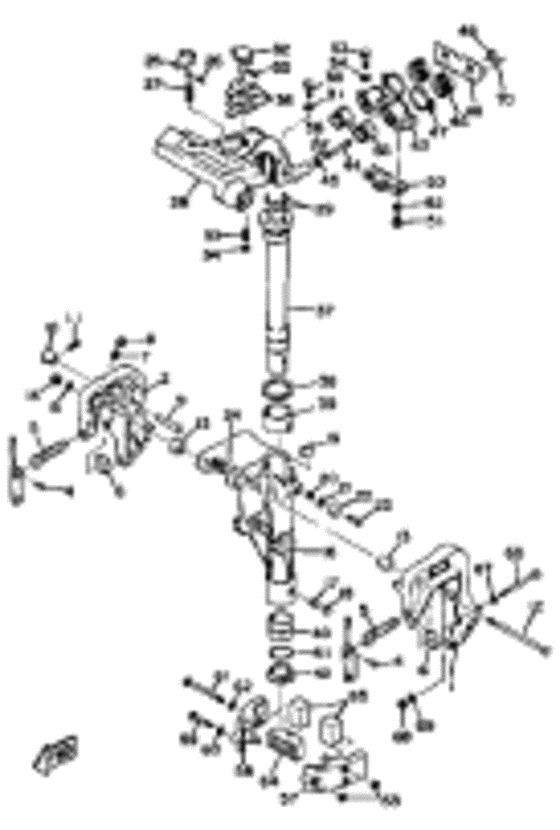

Bracket Diagram Yamaha FT9.9 EL/X
- Year
- 1985
- Model
- FT9.9
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-43111-09-EK
New Genuine Part
IN PRICE BOOK |
6G8-43111-09-EK |
— | ||
|
1
|
1
6G8-43111-09-EL
New Genuine Part
IN PRICE BOOK |
6G8-43111-09-EL |
— | ||
|
2
|
2
6G8-43112-09-EK
Bracket, Clamp 2
|
6G8-43112-09-EK |
— | ||
|
2
|
2
6G8-43112-09-EL
Bracket, Clamp 2
|
6G8-43112-09-EL |
— | ||
|
3
|
3
616-43118-00-EK Handle, Transom Clip |
616-43118-00-EK |
US $13.60 |
||
| replacement | |||||
|
3
|
3
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
3
|
3
616-43118-00-EL Handle, Transom Clip |
616-43118-00-EL |
US $13.60 |
||
| replacement | |||||
|
3
|
3
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
4
|
4
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
5
|
5
90149-14030-00 Screw, Specl Shape |
90149-14030-00 |
US $21.68 |
||
| replacements | |||||
|
5
|
5
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $30.79 |
||
|
5
|
5
90149-14M03-00 Screw, Spec''l Shape |
90149-14M03-00 |
from US $15.16 |
||
|
6
|
6
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
7
|
7
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
8
|
8
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
9
|
9
689-43191-00-00 Shaft, Stopper |
689-43191-00-00 |
from US $8.76 |
||
|
10
|
10
689-43192-01-00 Knob, Stopper |
689-43192-01-00 |
from US $4.04 |
||
|
11
|
11
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.36 |
||
|
12
|
12
901-0108M-83-00
Bolt
|
901-0108M-83-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
6G8-43136-00-00 Friction |
6G8-43136-00-00 |
US $10.34 |
||
| replacement | |||||
|
13
|
13
6G1-43136-00-00 Piece, Friction |
6G1-43136-00-00 |
from US $10.34 |
||
|
14
|
14
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
15
|
15
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
16
|
16
6G8-43311-13-EK
Bracket, Swivel 1
|
6G8-43311-13-EK |
— | ||
|
16
|
16
6G8-43311-13-EL
Bracket, Swivel 1
|
6G8-43311-13-EL |
— | ||
|
17
|
17
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
18
|
18
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
19
|
19
6G8-42528-00-00 Plate, Friction |
6G8-42528-00-00 |
US $3.52 |
||
|
20
|
20
90501-18M00-00 Spring, Compression |
90501-18M00-00 |
from US $3.54 |
||
|
21
|
21
90201-06M31-00 Washer, Plate |
90201-06M31-00 |
from US $1.81 |
||
|
22
|
22
6G8-43373-00-00 Seal, Damper |
6G8-43373-00-00 |
from US $2.83 |
||
|
23
|
23
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
24
|
24
6G8-43691-00-00
Indicator, Tilt
|
6G8-43691-00-00 |
— | ||
|
25
|
25
6G8-42561-00-00 Knob, Steering Lock |
6G8-42561-00-00 |
US $15.35 |
||
|
26
|
26
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
27
|
27
90501-10071-00 Spring, Compression |
90501-10071-00 |
from US $2.55 |
||
|
28
|
28
999-99015-97-00
Bracket, Steering
|
999-99015-97-00 |
— | ||
|
28
|
28
999-99015-98-00
Bracket, Steering
|
999-99015-98-00 |
— | ||
|
29
|
29
93605-15065-00 Pin, Dowel |
93605-15065-00 |
from US $3.12 |
||
|
30
|
30
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
30
|
30
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
6G8-42535-00-00
Washer, Thrust 1
|
6G8-42535-00-00 |
— | ||
|
33
|
33
90501-12270-00
Spring, Compression
|
90501-12270-00 |
— | ||
| replacement | |||||
|
33
|
33
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
34
|
34
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
35
|
35
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.36 |
||
|
36
|
36
6G8-42545-00-00
Washer, Plain
|
6G8-42545-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
6G8-42521-10-94 Shaft, Steering Pivot |
6G8-42521-10-94 |
from US $119.37 |
||
|
38
|
38
90209-45M09-00 Washer |
90209-45M09-00 |
US $2.20 |
||
|
39
|
39
6G8-42537-00-00 Bushing, Pivot Shaft |
6G8-42537-00-00 |
from US $22.28 |
||
|
40
|
40
90386-37M47-00 Bush |
90386-37M47-00 |
US $6.02 |
||
|
41
|
41
93210-37M67-00 O-Ring (6G8) |
93210-37M67-00 |
from US $2.77 |
||
|
42
|
42
90386-37M48-00 Bush |
90386-37M48-00 |
US $3.09 |
||
|
43
|
43
6G8-44517-00-94
Mount Rubber
|
6G8-44517-00-94 |
— | ||
| replacement | |||||
|
43
|
43
6G8-44517-00-00
Mount Rubber
|
6G8-44517-00-00 |
— | ||
|
44
|
44
90116-08M20-00
Bolt, Stud
|
90116-08M20-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
90201-08M12-00 Washer, Plate |
90201-08M12-00 |
from US $3.26 |
||
|
46
|
46
6G8-44522-00-00 Seal |
6G8-44522-00-00 |
US $4.79 |
||
|
47
|
47
90460-38M06-00 Clamp, Hose |
90460-38M06-00 |
from US $7.48 |
||
|
48
|
48
6G8-44518-00-00 Bracket Comp |
6G8-44518-00-00 |
US $3.37 |
||
|
49
|
49
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
50
|
50
6G8-44526-00-00 Plate |
6G8-44526-00-00 |
from US $8.08 |
||
|
51
|
51
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
51
|
51
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
52
|
52
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
53
|
53
97395-08030-00 Bolt |
97395-08030-00 |
US $2.69 |
||
| replacement | |||||
|
53
|
53
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.91 |
||
|
54
|
54
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
55
|
55
6G8-44521-00-00 Seal |
6G8-44521-00-00 |
US $6.17 |
||
|
56
|
56
6G8-44532-00-00 Stopper, Upper Mount |
6G8-44532-00-00 |
from US $2.41 |
||
|
57
|
57
6G8-44551-01-EK
Housing, Lower Mount Rubber 1
|
6G8-44551-01-EK |
— | ||
|
57
|
57
6G8-44551-01-EL
Housing, Lower, Mount Rubber
|
6G8-44551-01-EL |
— | ||
|
58
|
58
6G8-44552-01-EK
Housing, Lower Mount
|
6G8-44552-01-EK |
— | ||
| replacement | |||||
|
58
|
58
6G8-44552-02-EK
Housing, Lwr.mnt.mount Rubber
|
6G8-44552-02-EK |
— | ||
|
58
|
58
6G8-44552-02-EL
Housing, Lower Mount Rubber
|
6G8-44552-02-EL |
— | ||
|
59
|
59
973-95060-45-00
Bolt, Hexagon
|
973-95060-45-00 |
— | ||
| replacement | |||||
|
59
|
59
970-80060-45-00 Bolt |
970-80060-45-00 |
from US $4.56 |
||
|
60
|
60
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
61
|
61
97395-06095-00 Bolt |
97395-06095-00 |
from US $1.70 |
||
| replacements | |||||
|
61
|
61
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
|
61
|
61
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
62
|
62
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
63
|
63
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
63
|
63
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
64
|
64
6G8-44557-00-00 Mount Damper, Lower Front |
6G8-44557-00-00 |
US $5.73 |
||
|
65
|
65
682-44555-00-00 Mount Damper, Lower Side |
682-44555-00-00 |
from US $11.76 |
||
|
66
|
66
90101-08M88-00 Bolt |
90101-08M88-00 |
from US $10.20 |
||
|
67
|
67
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
68
|
68
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
69
|
69
90201-08MA4-00 Washer, Plate |
90201-08MA4-00 |
from US $7.37 |
||
|
70
|
70
6G8-44533-00-00 Damper, Upper Mount Rubber |
6G8-44533-00-00 |
US $1.40 |
||
