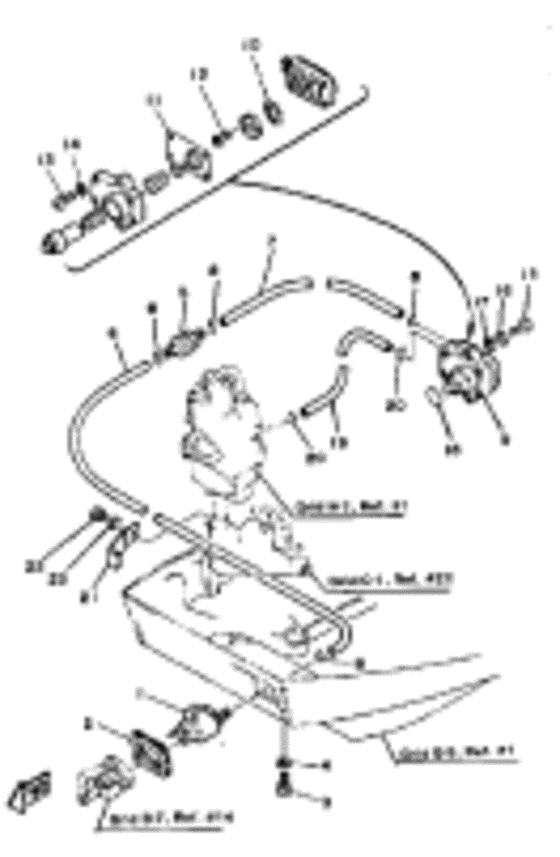

Fuel system Diagram Yamaha FT9.9 EL/X
- Year
- 1985
- Model
- FT9.9
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
1
|
1
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
1
|
1
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
2
|
2
6G8-24329-00-00 Seal |
6G8-24329-00-00 |
from US $2.54 |
||
|
3
|
3
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
3
|
3
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
4
|
4
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
646-24251-02-00 Strainer 1 |
646-24251-02-00 |
from US $14.45 |
||
|
6
|
6
6G8-24311-00-00 Pipe, Fuel 1 |
6G8-24311-00-00 |
from US $5.98 |
||
|
7
|
7
90445-09065-00 Hose (L420) |
90445-09065-00 |
from US $6.52 |
||
| replacements | |||||
|
7
|
7
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
7
|
7
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
8
|
8
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
9
|
9
6G8-24410-02-00 Fuel Pump Assembly |
6G8-24410-02-00 |
US $194.94 |
||
| replacement | |||||
|
9
|
9
999-99032-73-00 Fuel Pump Assy |
999-99032-73-00 |
from US $148.73 |
||
|
10
|
10
6G8-24421-00-00 Valve, Check |
6G8-24421-00-00 |
US $19.27 |
||
| replacement | |||||
|
10
|
10
6G8-24421-10-00 Valve, Check |
6G8-24421-10-00 |
from US $19.27 |
||
|
11
|
11
6G8-24411-01-00 Diaphragm |
6G8-24411-01-00 |
US $45.18 |
||
| replacement | |||||
|
11
|
11
999-99038-54-00 Diaphragm |
999-99038-54-00 |
from US $25.40 |
||
|
12
|
12
98702-03008-00 Screw, Flat Head |
98702-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
12
|
12
98707-03008-00 Screw, Flat Head |
98707-03008-00 |
from US $2.27 |
||
|
13
|
13
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
13
|
13
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
14
|
14
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
15
|
15
98580-06025-00 Screw, Pan Head |
98580-06025-00 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
93210-20M65-00 1081 O-Ring |
93210-20M65-00 |
from US $4.39 |
||
| replacement | |||||
|
18
|
18
93210-20801-00 O-Ring |
93210-20801-00 |
from US $3.02 |
||
|
19
|
19
90445-09M75-00 Hose (L370) |
90445-09M75-00 |
from US $6.52 |
||
| replacements | |||||
|
19
|
19
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
19
|
19
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
20
|
20
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
21
|
21
90465-08M26-00
Clamp
|
90465-08M26-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
22
|
22
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
