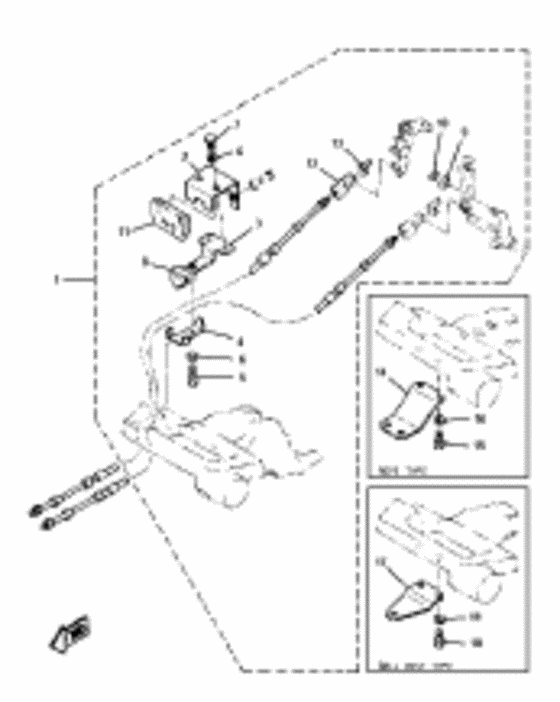

Remote control attachment Diagram Yamaha FT9.9 EL/X
- Year
- 1990
- Model
- FT9.9
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-48501-03-00 Remote Cont. Attachment Assy |
6G8-48501-03-00 |
US $127.66 |
||
| replacement | |||||
|
1
|
1
6G8-48501-04-00 Remote Cont. Attachment Assy. |
6G8-48501-04-00 |
US $91.33 |
||
|
2
|
2
6G8-48531-51-00 Bracket, Remote Control 1 |
6G8-48531-51-00 |
US $17.20 |
||
|
3
|
3
6G8-48532-50-00 Bracket, Remote Control 2 |
6G8-48532-50-00 |
US $19.13 |
||
|
4
|
4
6G8-48538-50-00 Clamp, Cable 1 |
6G8-48538-50-00 |
from US $7.08 |
||
|
5
|
5
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
5
|
5
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
7
|
7
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
8
|
8
6G8-48565-50-00 Grommet |
6G8-48565-50-00 |
from US $7.93 |
||
|
9
|
9
90387-06M73-00 Collar |
90387-06M73-00 |
US $3.67 |
||
|
10
|
10
93430-04M03-00 Circlip |
93430-04M03-00 |
from US $1.66 |
||
| replacement | |||||
|
10
|
10
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.66 |
||
|
11
|
11
6G8-48351-51-00 Seal Rubber |
6G8-48351-51-00 |
from US $20.54 |
||
|
12
|
12
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.72 |
||
|
13
|
13
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
from US $4.82 |
||
|
14
|
14
6G8-48511-00-00 Hook, Steering |
6G8-48511-00-00 |
from US $19.55 |
||
|
15
|
15
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
6G8-48511-10-00 Hook, Steering |
6G8-48511-10-00 |
from US $13.03 |
||
|
18
|
18
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
18
|
18
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
