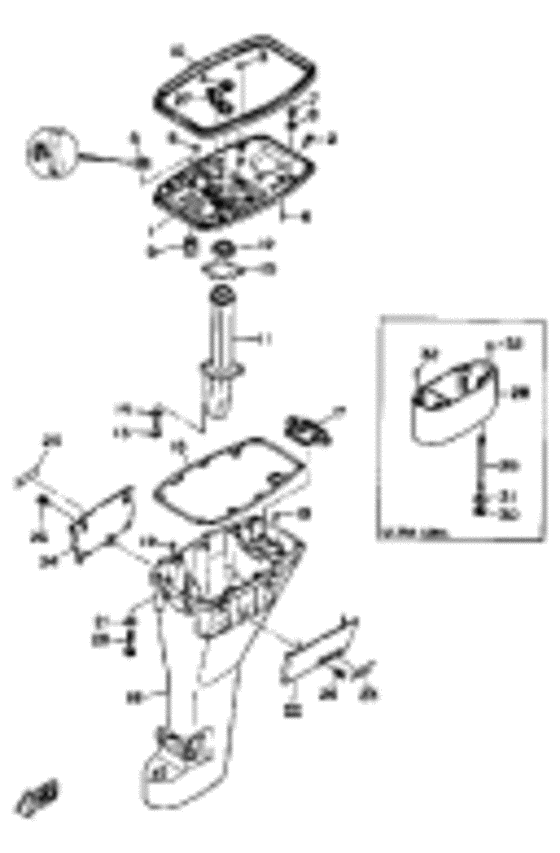

Upper casing Diagram Yamaha FT9.9 EL/X
- Year
- 1989
- Model
- FT9.9
- Year
- 1989
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Power
- 9.9
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G8-41137-01-94
Guide, Exhaust
|
6G8-41137-01-94 |
— | ||
| replacement | |||||
|
1
|
1
6G8-41137-03-94
Guide, Exhaust
|
6G8-41137-03-94 |
— | ||
|
2
|
2
6E5-24377-00-00 Pipe, Joint 2 |
6E5-24377-00-00 |
from US $9.07 |
||
|
3
|
3
93210-08M60-00 O-Ring |
93210-08M60-00 |
from US $2.55 |
||
|
4
|
4
6G8-44367-00-00 Damper, Water Seal 3 |
6G8-44367-00-00 |
from US $6.94 |
||
|
5
|
5
931-0113M-27-00 OIL SEAL. |
931-0113M-27-00 |
from US $10.20 |
||
|
6
|
6
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
7
|
7
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
7
|
7
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
8
|
8
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
9
|
9
6G8-45135-00-00 Pipe |
6G8-45135-00-00 |
from US $20.94 |
||
|
10
|
10
6G8-42716-00-00 Rubber, Seal 1 |
6G8-42716-00-00 |
from US $20.83 |
||
|
11
|
11
6G8-41131-01-00 Manifold, Ext. 1 |
6G8-41131-01-00 |
from US $185.13 |
||
|
12
|
12
6G8-41138-00-00 Seal, Ext. 1 |
6G8-41138-00-00 |
from US $20.83 |
||
|
13
|
13
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
13
|
13
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
13
|
13
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
6G8-41133-A0-00 Gasket, Exhaust Manifold 1 |
6G8-41133-A0-00 |
from US $9.63 |
||
|
16
|
16
6G8-45111-12-EK
Casing, Upper
|
6G8-45111-12-EK |
— | ||
|
16
|
16
6G8-45111-12-EL
Casing, Upper (Wh)
|
6G8-45111-12-EL |
— | ||
|
17
|
17
6G8-45151-00-00
Cover, Upper Casing
|
6G8-45151-00-00 |
— | ||
|
18
|
18
6G8-45113-A0-00 Gasket,upper Casing |
6G8-45113-A0-00 |
from US $13.74 |
||
|
19
|
19
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
20
|
20
97395-08040-00 Bolt |
97395-08040-00 |
from US $4.93 |
||
| replacement | |||||
|
20
|
20
97095-08040-00 Bolt |
97095-08040-00 |
from US $5.68 |
||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
22
|
22
6G8-42741-00-EK
Apron 1
|
6G8-42741-00-EK |
— | ||
|
22
|
22
6G8-42741-00-EL
Apron 1
|
6G8-42741-00-EL |
— | ||
|
23
|
23
6G8-42791-00-00 Mark 1 |
6G8-42791-00-00 |
from US $2.09 |
||
|
24
|
24
6G8-42771-00-EK
Apron 2
|
6G8-42771-00-EK |
— | ||
|
24
|
24
6G8-42771-00-EL
Apron 2
|
6G8-42771-00-EL |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
6G8-42792-00-00 Mark 2 |
6G8-42792-00-00 |
US $5.94 |
||
|
26
|
26
90157-06M04-00 Screw, Pan Head |
90157-06M04-00 |
US $2.83 |
||
| replacement | |||||
|
26
|
26
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
27
|
27
6G8-11355-00-00 Seal, Cylinder 1 |
6G8-11355-00-00 |
from US $6.66 |
||
|
28
|
28
6G8-45211-20-EL Extension |
6G8-45211-20-EL |
US $221.70 |
||
|
29
|
29
90116-08M19-00 Bolt, StudBolt, stud (ultra long) |
90116-08M19-00 |
US $10.67 |
||
|
30
|
30
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
30
|
30
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
30
|
30
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
31
|
31
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
32
|
32
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
