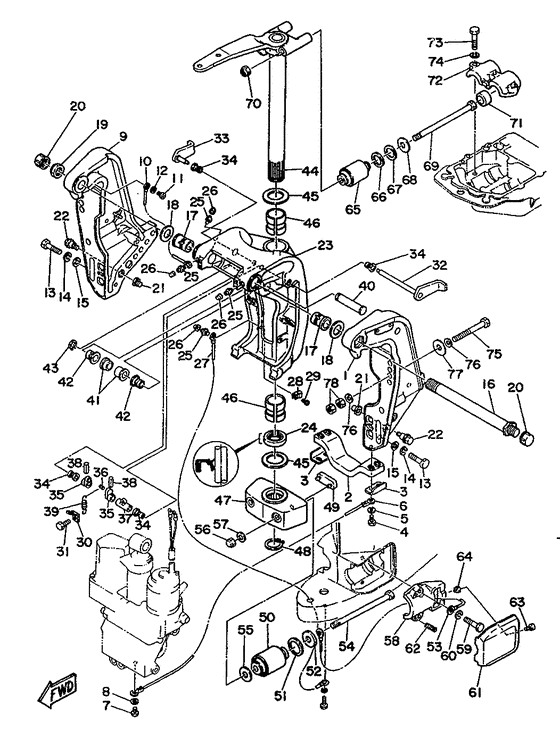

Bracket 1 Diagram Yamaha L130 ETOL/XL
- Year
- 1991
- Model
- L130B
- Model code
- 6N4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G5-43111-01-EJ
Bracket, Clamp
|
6G5-43111-01-EJ |
— | ||
| replacement | |||||
|
01
|
01
6G5-43111-02-EJ
Bracket Clamp
|
6G5-43111-02-EJ |
— | ||
|
02
|
02
6G5-45251-01-00 Anode |
6G5-45251-01-00 |
US $39.51 |
||
| replacement | |||||
|
02
|
02
6G5-45251-02-00 Anode |
6G5-45251-02-00 |
from US $36.34 |
||
|
03
|
03
6G5-44526-00-00 Plate |
6G5-44526-00-00 |
from US $2.70 |
||
|
04
|
04
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
04
|
04
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
05
|
05
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
06
|
06
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
07
|
07
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
07
|
07
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
6G5-43112-01-EJ
Bracket, Clamp
|
6G5-43112-01-EJ |
— | ||
|
10
|
10
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
11
|
11
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
11
|
11
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
97395-10050-00 Bolt |
97395-10050-00 |
US $8.78 |
||
| replacements | |||||
|
13
|
13
97095-10050-00 Bolt |
97095-10050-00 |
US $8.78 |
||
|
13
|
13
97D95-10050-00 Bolt, Hexagon Deep Recess |
97D95-10050-00 |
from US $2.83 |
||
|
14
|
14
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
15
|
15
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
16
|
16
6E5-43131-01-00 Bolt, Clamp Bracket |
6E5-43131-01-00 |
US $105.83 |
||
| replacement | |||||
|
16
|
16
6R3-43131-00-00 Bolt, Clamp Bracket |
6R3-43131-00-00 |
from US $111.07 |
||
|
17
|
17
90306-25M31-00
Bush
|
90306-25M31-00 |
— | ||
|
18
|
18
90201-26M59-00 Washer, Plate |
90201-26M59-00 |
from US $3.04 |
||
|
19
|
19
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
19
|
19
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
20
|
20
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
20
|
20
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
21
|
21
6G5-43164-00-00
Rod, Tilt Lock
|
6G5-43164-00-00 |
— | ||
|
22
|
22
90109-12M35-00
Bolt
|
90109-12M35-00 |
— | ||
|
23
|
23
6G5-43311-20-EJ
Bracket, Swivel
|
6G5-43311-20-EJ |
— | ||
|
24
|
24
93109-38M02-00 Oil Seal |
93109-38M02-00 |
from US $6.48 |
||
|
25
|
25
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
25
|
25
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
26
|
26
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
27
|
27
6E5-82147-20-00 Wire, Lead 5 |
6E5-82147-20-00 |
US $16.43 |
||
| replacement | |||||
|
27
|
27
61A-82147-30-00 Wire, Lead 4 |
61A-82147-30-00 |
from US $16.43 |
||
|
28
|
28
90464-11M18-00 Clamp |
90464-11M18-00 |
from US $1.84 |
||
|
29
|
29
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
30
|
30
6G5-43144-00-00 Hook, Spring |
6G5-43144-00-00 |
from US $3.26 |
||
|
31
|
31
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
31
|
31
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
32
|
32
6G5-43181-01-00 Lever, Tilt Stop |
6G5-43181-01-00 |
US $58.44 |
||
| replacement | |||||
|
32
|
32
6G5-43181-02-00 Lever, Tilt Stop 1 |
6G5-43181-02-00 |
from US $58.44 |
||
|
33
|
33
6G5-43185-01-00 Lever, Tilt Stop |
6G5-43185-01-00 |
US $52.22 |
||
| replacement | |||||
|
33
|
33
6G5-43185-02-00 Lever, Tilt Stop 2 |
6G5-43185-02-00 |
from US $52.22 |
||
|
34
|
34
90386-10M16-00 Bush |
90386-10M16-00 |
from US $2.36 |
||
|
35
|
35
6G5-43148-00-00 Collar, Distance |
6G5-43148-00-00 |
from US $2.91 |
||
|
36
|
36
90249-06M19-00 Pin |
90249-06M19-00 |
from US $3.26 |
||
|
37
|
37
90387-10M02-00 Collar |
90387-10M02-00 |
from US $4.11 |
||
|
38
|
38
91690-30020-00 Pin, Spring |
91690-30020-00 |
from US $1.70 |
||
|
39
|
39
90506-14M24-00 Spring, Tension |
90506-14M24-00 |
from US $4.03 |
||
|
40
|
40
6E5-43126-01-00 Pin, Upper Shock Mount |
6E5-43126-01-00 |
US $23.94 |
||
| replacement | |||||
|
40
|
40
6E5-43126-02-00 Pin, Upper Shock Mount |
6E5-43126-02-00 |
from US $23.94 |
||
|
41
|
41
90386-18M63-00 Bush |
90386-18M63-00 |
from US $4.03 |
||
|
42
|
42
90386-18M14-00 Bush |
90386-18M14-00 |
from US $2.70 |
||
|
43
|
43
93410-18M02-00 Circlip |
93410-18M02-00 |
US $3.12 |
||
| replacement | |||||
|
43
|
43
93410-18M05-00 Circlip (6F2) |
93410-18M05-00 |
from US $3.26 |
||
|
44
|
44
6E5-42510-23-EJ Steering Bracket Assy |
6E5-42510-23-EJ |
US $646.80 |
||
| replacement | |||||
|
44
|
44
6E5-42510-25-EJ Steering Bracket Assy |
6E5-42510-25-EJ |
US $646.80 |
||
|
45
|
45
90201-38M60-00 Washer, Plate |
90201-38M60-00 |
from US $5.97 |
||
|
46
|
46
90386-38M32-00 Bush |
90386-38M32-00 |
US $29.96 |
||
| replacement | |||||
|
46
|
46
90386-38M89-00 Bush |
90386-38M89-00 |
from US $29.96 |
||
|
47
|
47
6E5-44551-00-EJ
Housing, Lower Mount Rubber
|
6E5-44551-00-EJ |
— | ||
| replacement | |||||
|
47
|
47
999-99018-72-00
Housing Lower M0Unt (6E5)
|
999-99018-72-00 |
— | ||
|
48
|
48
93410-37M04-00 Circlip |
93410-37M04-00 |
from US $4.04 |
||
|
49
|
49
6E5-44575-00-00 Damper, Lower Mount Rubber |
6E5-44575-00-00 |
US $14.03 |
||
|
50
|
50
6E5-44555-00-94 Mount Damper, Lower Side |
6E5-44555-00-94 |
US $169.94 |
||
| replacement | |||||
|
50
|
50
6E5-44555-00-00 Mount Damper, Lower Side |
6E5-44555-00-00 |
from US $101.14 |
||
|
51
|
51
90202-32M19-00 Washer, Plate |
90202-32M19-00 |
from US $5.40 |
||
|
52
|
52
90201-16M55-00 Washer, Plate |
90201-16M55-00 |
from US $5.40 |
||
|
53
|
53
6E5-82149-00-00 Wire, Lead 3 |
6E5-82149-00-00 |
from US $7.76 |
||
|
54
|
54
90109-14M34-00 Bolt |
90109-14M34-00 |
from US $23.94 |
||
|
55
|
55
90201-15M58-00 Washer, Plate |
90201-15M58-00 |
from US $5.06 |
||
|
56
|
56
95380-14800-00 Nut |
95380-14800-00 |
from US $10.44 |
||
|
57
|
57
92990-14600-00 Washer |
92990-14600-00 |
from US $6.06 |
||
|
58
|
58
6E5-44552-00-94 Housing, Lower Mount |
6E5-44552-00-94 |
US $84.42 |
||
| replacement | |||||
|
58
|
58
6E5-44552-01-CA Housing, Lower Mount Rubber |
6E5-44552-01-CA |
from US $84.42 |
||
|
59
|
59
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
59
|
59
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
59
|
59
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
60
|
60
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
61
|
61
6E5-44553-00-EJ
Cover, Lower Mount
|
6E5-44553-00-EJ |
— | ||
| replacement | |||||
|
61
|
61
6E5-44553-01-EJ
Cover, Lower Mount
|
6E5-44553-01-EJ |
— | ||
|
62
|
62
90501-16M28-00 Spring, Compression |
90501-16M28-00 |
from US $4.96 |
||
|
63
|
63
92380-06015-00 Screw, Cylinder Head |
92380-06015-00 |
US $2.55 |
||
| replacement | |||||
|
63
|
63
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
64
|
64
90179-06066-00 Nut |
90179-06066-00 |
from US $4.96 |
||
|
65
|
65
6E5-44514-00-94 Mount Damper, Upper Side |
6E5-44514-00-94 |
US $118.13 |
||
| replacement | |||||
|
65
|
65
6E5-44514-00-00 Mount Damper, Upper Side |
6E5-44514-00-00 |
from US $78.78 |
||
|
66
|
66
90201-26M57-00 Washer, Plate |
90201-26M57-00 |
from US $6.09 |
||
|
67
|
67
90202-26M18-00 Washer, Plate |
90202-26M18-00 |
from US $6.09 |
||
|
68
|
68
90201-14M56-00 Washer, Plate |
90201-14M56-00 |
from US $7.37 |
||
|
69
|
69
90109-12M37-00 Bolt |
90109-12M37-00 |
US $19.84 |
||
| replacement | |||||
|
69
|
69
90109-12007-00 Bolt |
90109-12007-00 |
from US $19.84 |
||
|
70
|
70
90185-12058-00 Nut, Self-Locking |
90185-12058-00 |
from US $7.65 |
||
|
71
|
71
663-44575-00-00 Damper, Lower Mount Rubber |
663-44575-00-00 |
US $10.48 |
||
| replacement | |||||
|
71
|
71
663-44575-01-00 Damper, lower mount rubber |
663-44575-01-00 |
from US $10.48 |
||
|
72
|
72
6E5-44511-00-5B Cover, Upper Mount |
6E5-44511-00-5B |
US $82.07 |
||
| replacement | |||||
|
72
|
72
6E5-44511-00-00 Cover, Upper Mount |
6E5-44511-00-00 |
from US $56.81 |
||
|
73
|
73
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
73
|
73
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
73
|
73
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
74
|
74
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
75
|
75
90101-12M03-00 Bolt (L:115Mm) |
90101-12M03-00 |
from US $20.26 |
||
|
76
|
76
90201-13M01-00 Washer, Plate |
90201-13M01-00 |
from US $3.24 |
||
|
77
|
77
90201-12426-00 Washe, Plate(663) |
90201-12426-00 |
from US $3.24 |
||
|
78
|
78
95380-12600-00 Nut |
95380-12600-00 |
from US $5.40 |
||
