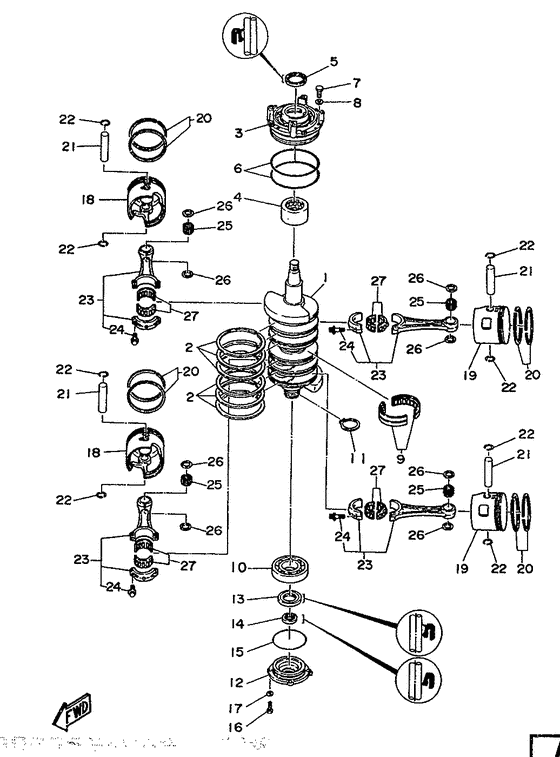

Crankshaft & Piston Diagram Yamaha L130 ETOL/XL
- Year
- 1991
- Model
- L130B
- Model code
- 6N4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6N7-11411-00-00 Crankshaft |
6N7-11411-00-00 |
US $2,164.80 |
||
| replacement | |||||
|
01
|
01
6N7-11411-01-00 Crankshaft |
6N7-11411-01-00 |
from US $1,724.77 |
||
|
02
|
02
6E5-11447-00-00 Seal, Crank |
6E5-11447-00-00 |
from US $14.48 |
||
|
03
|
03
6R3-15163-00-94 Housing, Bearing 1 |
6R3-15163-00-94 |
US $103.34 |
||
| replacement | |||||
|
03
|
03
6R3-15163-00-1S Housing, Bearing 1 |
6R3-15163-00-1S |
from US $103.34 |
||
|
04
|
04
93311-940U3-00 Bearing |
93311-940U3-00 |
from US $99.20 |
||
|
05
|
05
931-0240M-14-00
Oil Seal
|
931-0240M-14-00 |
— | ||
| replacement | |||||
|
05
|
05
93102-40M38-00 Oil Seal |
93102-40M38-00 |
from US $23.02 |
||
|
06
|
06
93211-04384-00 O-Ring (705) |
93211-04384-00 |
from US $4.72 |
||
|
07
|
07
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
07
|
07
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
93310-954V3-00 Bearing |
93310-954V3-00 |
from US $232.98 |
||
| replacement | |||||
|
09
|
09
93310-954U1-00 Bearing |
93310-954U1-00 |
from US $198.94 |
||
|
10
|
10
93306-208U0-00 Bearing |
93306-208U0-00 |
from US $31.26 |
||
|
11
|
11
934-1040M-03-00
Circlip
|
934-1040M-03-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-40400-00 Circlip |
99009-40400-00 |
from US $3.33 |
||
|
12
|
12
6G5-15359-00-94 Housing, Oil Seal |
6G5-15359-00-94 |
from US $90.08 |
||
|
13
|
13
93102-35M13-00 Oil Seal |
93102-35M13-00 |
from US $15.50 |
||
|
14
|
14
93101-22M15-00 Oil Seal |
93101-22M15-00 |
from US $6.40 |
||
|
15
|
15
93210-74M35-00 O-Ring |
93210-74M35-00 |
from US $7.08 |
||
|
16
|
16
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
16
|
16
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
18
|
18
6L1-11636-01-00 Piston (0.50Mm O/s)Ap |
6L1-11636-01-00 |
US $145.07 |
||
| replacement | |||||
|
18
|
18
6R5-11636-01-00 Piston (0.50Mm O/s)Ap |
6R5-11636-01-00 |
from US $92.58 |
||
|
18
|
18
6L1-11631-01-93 Piston (Std) |
6L1-11631-01-93 |
US $146.45 |
||
| replacement | |||||
|
18
|
18
6R5-11631-01-93 Piston (Std) |
6R5-11631-01-93 |
from US $91.56 |
||
|
18
|
18
6L1-11635-01-00 Piston 1 O/s 0.25 (0.25Mm O/s)Ap |
6L1-11635-01-00 |
US $145.07 |
||
| replacement | |||||
|
18
|
18
6R5-11635-01-00 Piston (0.25Mm O/s)Ap |
6R5-11635-01-00 |
from US $92.92 |
||
|
19
|
19
6L1-11642-01-93 Piston Std |
6L1-11642-01-93 |
US $146.45 |
||
| replacement | |||||
|
19
|
19
6R5-11642-01-93 Piston 2 (Std)Piston 2 (std) |
6R5-11642-01-93 |
from US $91.24 |
||
|
19
|
19
6L1-11645-01-00 Piston 1St (1St 0.25Mm)Ap |
6L1-11645-01-00 |
US $145.07 |
||
| replacement | |||||
|
19
|
19
6R5-11645-01-00 Piston 2 (0.25Mm O/s)Piston 2 (0.25mm o/s) (l150c model) Ap |
6R5-11645-01-00 |
from US $89.22 |
||
|
19
|
19
6L1-11646-01-00 Piston 2 (0.50Mm O/s)Ap |
6L1-11646-01-00 |
US $145.07 |
||
| replacement | |||||
|
19
|
19
6R5-11646-01-00 Piston (2Nd O/s 0.50Mm)Ap |
6R5-11646-01-00 |
from US $93.26 |
||
|
20
|
20
6K7-11602-02-00
Piston Ring Set
|
6K7-11602-02-00 |
— | ||
|
20
|
20
6K7-11601-12-00 Piston Ringset (0.25Mm O/s)Ap |
6K7-11601-12-00 |
US $58.86 |
||
| replacement | |||||
|
20
|
20
64D-11604-02-00 Piston Ring Set (0.25Mm O/s)Ap |
64D-11604-02-00 |
from US $58.86 |
||
|
20
|
20
6K7-11601-22-00 Piston Ring SetPiston ring set (0.50mm o/s) Ap |
6K7-11601-22-00 |
US $58.86 |
||
| replacement | |||||
|
20
|
20
64D-11605-02-00 Piston Ring Set (0.50Mm O/s)Ap |
64D-11605-02-00 |
from US $67.34 |
||
|
21
|
21
6K7-11633-00-00 Pin, Piston |
6K7-11633-00-00 |
from US $9.62 |
||
|
22
|
22
6E5-11634-00-00 Clip, Piston Pin |
6E5-11634-00-00 |
from US $2.36 |
||
|
23
|
23
6E5-11650-01-00 Connecting Rod Assy |
6E5-11650-01-00 |
from US $261.48 |
||
|
24
|
24
90109-08462-00 Bolt |
90109-08462-00 |
US $11.10 |
||
| replacement | |||||
|
24
|
24
90109-08022-00 Bolt |
90109-08022-00 |
from US $10.10 |
||
|
25
|
25
936-03211-11-00 Pin, Dowel |
936-03211-11-00 |
from US $0.62 |
||
|
26
|
26
90201-21M75-00 Washer, Plate |
90201-21M75-00 |
from US $3.40 |
||
|
27
|
27
933-10836-V2-00 Bearing |
933-10836-V2-00 |
from US $60.72 |
||
