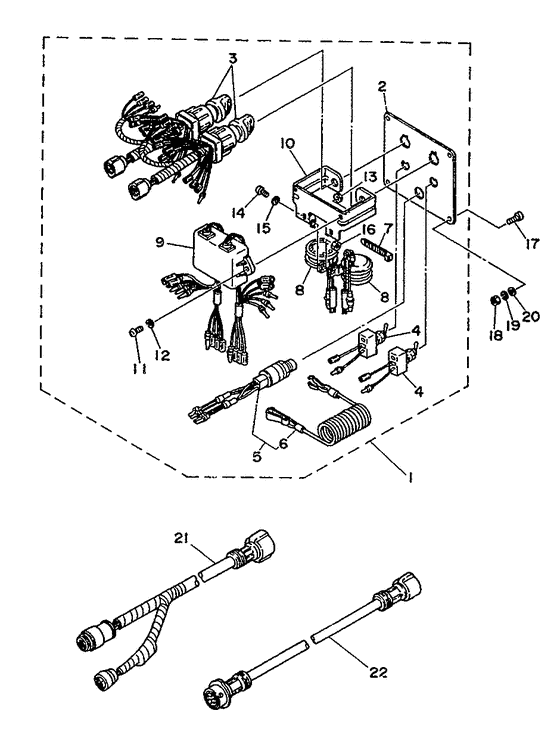

Electrical 3 Diagram Yamaha L130 ETOL/XL
- Year
- 1991
- Model
- L130B
- Model code
- 6N4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6K1-82570-02-00 Panel Switch Assembly |
6K1-82570-02-00 |
US $1,199.88 |
||
| replacements | |||||
|
01
|
01
6K1-82570-13-00 Panel Switch Assy |
6K1-82570-13-00 |
US $1,199.88 |
||
|
01
|
01
6K1-82570-15-00 PANEL SWITCH ASSY |
6K1-82570-15-00 |
from US $416 |
||
|
02
|
02
6K1-82571-00-00 Panel, Switch |
6K1-82571-00-00 |
US $55.68 |
||
| replacements | |||||
|
02
|
02
6K1-82571-02-00 Plate, Panel Switch |
6K1-82571-02-00 |
from US $55.68 |
||
|
02
|
02
704-82571-02-00 Panel, Switch |
704-82571-02-00 |
from US $54.99 |
||
|
03
|
03
61B-82510-00-00 Main Switch Assy |
61B-82510-00-00 |
US $98.37 |
||
| replacements | |||||
|
03
|
03
61B-82510-02-00 Main Switch Assy |
61B-82510-02-00 |
US $98.37 |
||
|
03
|
03
61B-82510-03-00 MAIN SWITCH ASSY |
61B-82510-03-00 |
from US $98.37 |
||
|
04
|
04
703-82574-00-00 Graphic, Panel Switch |
703-82574-00-00 |
US $51.40 |
||
| replacement | |||||
|
04
|
04
6K1-82574-00-00 Switch, Choke |
6K1-82574-00-00 |
from US $51.40 |
||
|
05
|
05
6K1-82575-00-00 Engine Stop Switch A |
6K1-82575-00-00 |
US $62.72 |
||
| replacement | |||||
|
05
|
05
6K1-82575-01-00 Engine Stop Switch Assy |
6K1-82575-01-00 |
from US $62.72 |
||
|
06
|
06
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
07
|
07
704-82581-00-00
Stay, Cord Clamp
|
704-82581-00-00 |
— | ||
|
08
|
08
688-83383-11-00 Buzzer |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
08
|
08
688-83383-12-00 Buzzer |
688-83383-12-00 |
from US $54.99 |
||
|
09
|
09
6K1-85830-01-00 Control Unit Assy |
6K1-85830-01-00 |
US $491.04 |
||
| replacements | |||||
|
09
|
09
6K1-85830-02-00 Control Unit Assy |
6K1-85830-02-00 |
US $491.04 |
||
|
09
|
09
6K1-85830-03-00 Control Unit Assy |
6K1-85830-03-00 |
from US $491.04 |
||
|
10
|
10
6K1-83614-00-00
Bracket
|
6K1-83614-00-00 |
— | ||
|
11
|
11
92580-06020-00 Screw |
92580-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
12
|
12
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
13
|
13
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
14
|
14
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
14
|
14
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
15
|
15
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
16
|
16
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
17
|
17
90149-05M05-00 Screw |
90149-05M05-00 |
from US $1.84 |
||
|
18
|
18
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
19
|
19
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
20
|
20
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
21
|
21
6K1-8258A-40-00 Extension, Wire Harness (8M) |
6K1-8258A-40-00 |
US $207.24 |
||
| replacement | |||||
|
21
|
21
6K1-8258A-41-00 EXTENSION WIRE HARNESS |
6K1-8258A-41-00 |
from US $207.24 |
||
|
22
|
22
688-8258A-10-00 Extension, Wire Harness (2M)Ur |
688-8258A-10-00 |
from US $127.58 |
||
|
22
|
22
688-8258A-30-00 Extension, Wire Harness (3M)Ur |
688-8258A-30-00 |
from US $143.78 |
||
