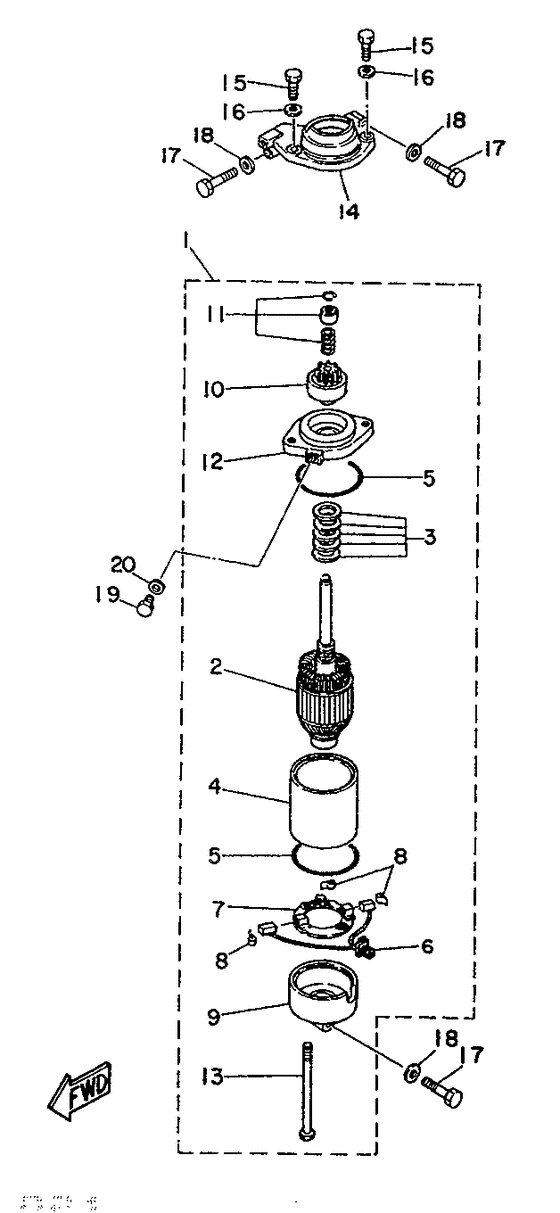

Starting motor Diagram Yamaha L130 ETOL/XL
- Year
- 1991
- Model
- L130B
- Model code
- 6N4
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6E5-81800-11-00 Starting Motor Assy |
6E5-81800-11-00 |
US $1,650 |
||
| replacement | |||||
|
01
|
01
6E5-81800-12-00 Starter Motor Assy |
6E5-81800-12-00 |
from US $1,333.97 |
||
|
02
|
02
6E5-81850-10-00
Armature Assy
|
6E5-81850-10-00 |
— | ||
| replacement | |||||
|
02
|
02
6E5-81850-A9-00
Armature Assy (6E5-81850-10-00)
|
6E5-81850-A9-00 |
— | ||
|
03
|
03
6E5-81809-10-00
Washer Kit
|
6E5-81809-10-00 |
— | ||
|
04
|
04
6E5-81810-10-00
Stator Assy
|
6E5-81810-10-00 |
— | ||
|
05
|
05
6E5-81847-10-00 O-Ring |
6E5-81847-10-00 |
from US $17.85 |
||
|
06
|
06
6E5-81801-10-00 Brush Set |
6E5-81801-10-00 |
from US $80.41 |
||
|
07
|
07
6E5-81840-10-00 Brush Holder Assy |
6E5-81840-10-00 |
from US $118.06 |
||
|
08
|
08
6E5-81813-10-00 Spring, Brush |
6E5-81813-10-00 |
US $17.62 |
||
|
09
|
09
6E5-81820-10-00
Rear Bracket Assy
|
6E5-81820-10-00 |
— | ||
| replacement | |||||
|
09
|
09
6E5-81820-11-00
Rear Bracket Assy
|
6E5-81820-11-00 |
— | ||
|
10
|
10
6E5-81807-11-00 Gear Assy, Starting Motor |
6E5-81807-11-00 |
from US $417.46 |
||
|
11
|
11
6E5-81857-10-00
Retainer
|
6E5-81857-10-00 |
— | ||
|
12
|
12
6E5-81830-10-00 Front Bracket Assy |
6E5-81830-10-00 |
US $195.06 |
||
|
13
|
13
6E5-81826-10-00 Bolt |
6E5-81826-10-00 |
US $13.81 |
||
|
14
|
14
6R3-81822-00-94 Bracket, Starting Motor |
6R3-81822-00-94 |
US $86.43 |
||
| replacement | |||||
|
14
|
14
6R3-81822-00-00 Bracket, Starting Motor |
6R3-81822-00-00 |
from US $49.77 |
||
|
15
|
15
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
17
|
17
97313-08045-00 Bolt, Hexagon |
97313-08045-00 |
from US $4.11 |
||
| replacement | |||||
|
17
|
17
97013-08045-00 Bolt |
97013-08045-00 |
from US $4.11 |
||
|
18
|
18
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
19
|
19
97395-08016-00 Bolt |
97395-08016-00 |
US $1.28 |
||
| replacements | |||||
|
19
|
19
97095-08016-00 Bolt |
97095-08016-00 |
US $1.28 |
||
|
19
|
19
97080-08016-00 Bolt |
97080-08016-00 |
from US $3.26 |
||
|
19
|
19
97D95-08016-00 Bolt, Hexagon Deep Recess |
97D95-08016-00 |
from US $1.28 |
||
|
20
|
20
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
