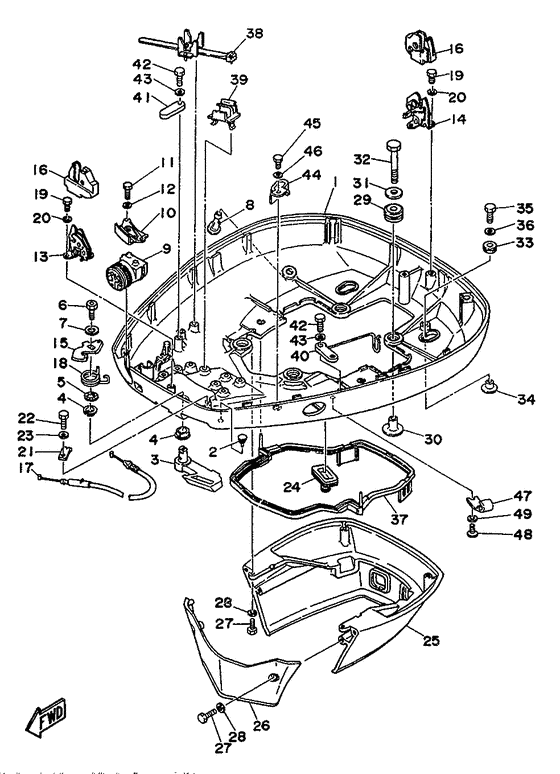

Bottom cowling Diagram Yamaha L130 ETOL/XL
- Year
- 1992
- Model
- L130B
- Model code
- 6N4
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6N7-42711-40-EJ
Cowling, Bottom
|
6N7-42711-40-EJ |
— | ||
| replacement | |||||
|
01
|
01
6N7-W4271-43-EJ
Cowling Bottom
|
6N7-W4271-43-EJ |
— | ||
|
02
|
02
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
|
03
|
03
6N7-42815-00-EJ
Lever, Clamp
|
6N7-42815-00-EJ |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
90386-13M88-00 Bush |
90386-13M88-00 |
from US $4.99 |
||
|
05
|
05
90206-13M10-00 Washer, Wave |
90206-13M10-00 |
from US $2.91 |
||
|
06
|
06
90109-08M45-00 Bolt |
90109-08M45-00 |
from US $8.08 |
||
|
07
|
07
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
08
|
08
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
09
|
09
6N7-42725-20-00 Grommet |
6N7-42725-20-00 |
US $35.99 |
||
|
10
|
10
6N7-42738-01-58
Plate, Fitting
|
6N7-42738-01-58 |
— | ||
|
11
|
11
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
13
|
13
6R3-04282-40-00
Base, Clamp Lever
|
6R3-04282-40-00 |
— | ||
|
14
|
14
6R3-42816-00-00 Lever, Clamp |
6R3-42816-00-00 |
from US $27.43 |
||
|
15
|
15
6R3-42816-00-00 Lever, Clamp |
6R3-42816-00-00 |
from US $27.43 |
||
|
16
|
16
6R3-42851-00-00
Cover, Clamp
|
6R3-42851-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
6R3-42850-00-00
Wire Complete
|
6R3-42850-00-00 |
— | ||
|
18
|
18
6R3-42813-00-00 Spring, Clamp Lever |
6R3-42813-00-00 |
from US $6.94 |
||
|
19
|
19
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
19
|
19
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
|
19
|
19
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
21
|
21
6R3-42828-00-00 Plate, Clamp |
6R3-42828-00-00 |
from US $2.98 |
||
|
22
|
22
97395-06010-00 Bolt |
97395-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
22
|
22
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
24
|
24
688-42726-10-00 Grommet |
688-42726-10-00 |
US $5 |
||
|
25
|
25
6N7-42741-00-EJ
Apron
|
6N7-42741-00-EJ |
— | ||
| replacement | |||||
|
25
|
25
6N7-42741-01-EJ
Apron
|
6N7-42741-01-EJ |
— | ||
|
26
|
26
6R3-42771-00-EJ
Apron
|
6R3-42771-00-EJ |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
27
|
27
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
29
|
29
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
30
|
30
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.79 |
||
|
31
|
31
90201-08M54-00 Washer, Plate |
90201-08M54-00 |
from US $2.70 |
||
|
32
|
32
97090-08035-00 Bolt |
97090-08035-00 |
from US $5.53 |
||
| replacements | |||||
|
32
|
32
97070-08035-00 Bolt |
97070-08035-00 |
from US $2.59 |
||
|
32
|
32
97095-08035-00 Bolt |
97095-08035-00 |
from US $5.53 |
||
|
33
|
33
90480-14M45-00 Grommet |
90480-14M45-00 |
from US $1.98 |
||
|
34
|
34
90387-06M52-00 Collar |
90387-06M52-00 |
from US $5.38 |
||
|
35
|
35
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
35
|
35
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
36
|
36
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
37
|
37
6E5-42716-00-00 Rubber, Seal 1 |
6E5-42716-00-00 |
US $89.53 |
||
|
38
|
38
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
39
|
39
6E5-82594-00-00 Clamp |
6E5-82594-00-00 |
from US $6.52 |
||
|
40
|
40
6K7-82588-00-00 Plate |
6K7-82588-00-00 |
from US $22.67 |
||
|
41
|
41
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.97 |
||
|
42
|
42
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
42
|
42
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
44
|
44
90465-12M25-00 Clamp |
90465-12M25-00 |
from US $7.37 |
||
|
45
|
45
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
45
|
45
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
46
|
46
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
47
|
47
6E5-24367-10-00 Clamp, Fuel Pipe 2 |
6E5-24367-10-00 |
from US $14.31 |
||
|
48
|
48
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.91 |
||
|
49
|
49
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
