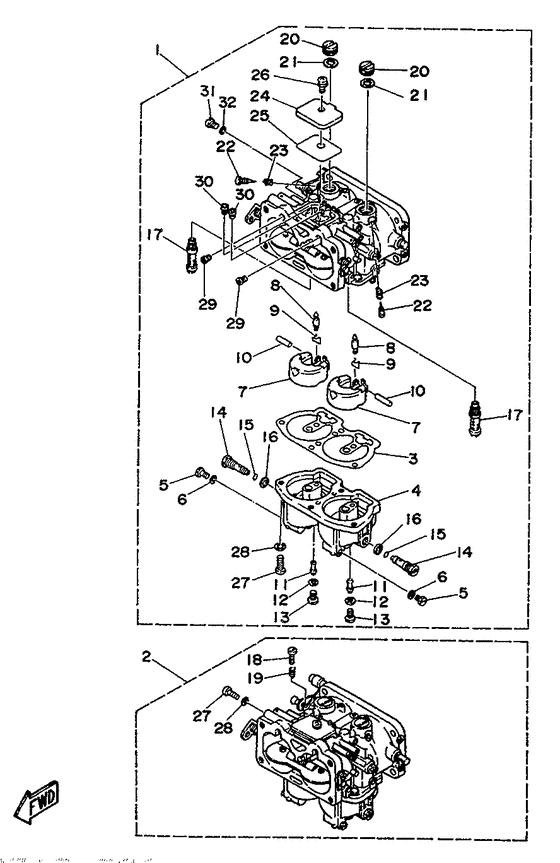

Carburetor Diagram Yamaha L130 ETOL/XL
- Year
- 1992
- Model
- L130B
- Model code
- 6N4
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L1-14301-01-00
Carburetor Assembly 1
|
6L1-14301-01-00 |
— | ||
|
02
|
02
6L1-14302-01-00
Carburetor Assembly 2
|
6L1-14302-01-00 |
— | ||
|
03
|
03
6E5-14384-03-00 Gasket, Float Chamber |
6E5-14384-03-00 |
from US $12.89 |
||
|
04
|
04
6E5-14381-03-00
Body, Float Chamber
|
6E5-14381-03-00 |
— | ||
|
05
|
05
6E5-14383-01-00 Screw, Drain |
6E5-14383-01-00 |
from US $8.60 |
||
|
06
|
06
6J8-14995-00-00 Gasket |
6J8-14995-00-00 |
from US $2.41 |
||
|
07
|
07
6E5-14385-02-00 Float |
6E5-14385-02-00 |
from US $35.02 |
||
|
08
|
08
6E5-14546-00-00 Valve, Needle |
6E5-14546-00-00 |
from US $10.82 |
||
|
09
|
09
6E5-14159-00-00 Clip |
6E5-14159-00-00 |
from US $5.74 |
||
|
10
|
10
6E5-14386-02-00 Pin, Float |
6E5-14386-02-00 |
from US $4.96 |
||
|
11
|
11
6E5-1492F-40-00
Jet, Air Slow
|
6E5-1492F-40-00 |
— | ||
|
12
|
12
6E5-14397-00-00 O-Ring |
6E5-14397-00-00 |
from US $2.98 |
||
|
13
|
13
6E5-14394-00-00
Valve, Drain
|
6E5-14394-00-00 |
— | ||
|
14
|
14
6E5-1492E-90-00
Jet, Main (#180)
|
6E5-1492E-90-00 |
— | ||
|
15
|
15
6E5-14997-00-00 Seal |
6E5-14997-00-00 |
from US $10.63 |
||
|
16
|
16
6E5-14398-01-00 Gasket |
6E5-14398-01-00 |
from US $2.69 |
||
|
17
|
17
6E5-1492A-00-00 Nozzle, Main |
6E5-1492A-00-00 |
from US $36.75 |
||
|
18
|
18
6E5-14231-00-00
Jet, Main
|
6E5-14231-00-00 |
— | ||
|
19
|
19
6J8-14334-00-00 Spring, Throttle |
6J8-14334-00-00 |
from US $3.40 |
||
|
20
|
20
6E5-14328-01-00 Plug |
6E5-14328-01-00 |
from US $17.57 |
||
|
21
|
21
6E5-14979-00-00 Gasket |
6E5-14979-00-00 |
from US $3.12 |
||
|
22
|
22
6E5-14323-03-00 Screw, Air Adjusting |
6E5-14323-03-00 |
from US $12.18 |
||
|
23
|
23
6E5-14223-00-00 Spring, Air Adjusting |
6E5-14223-00-00 |
from US $4.96 |
||
|
24
|
24
6E5-14527-01-00 Plate |
6E5-14527-01-00 |
from US $17.28 |
||
|
25
|
25
6E5-14959-01-00 Gasket |
6E5-14959-01-00 |
from US $5.53 |
||
|
26
|
26
97980-05108-00 Screw, With Washer |
97980-05108-00 |
from US $2.55 |
||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
27
|
27
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
28
|
28
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
29
|
29
61A-1492H-12-00 Jet, Slow Air Bleed (#60) |
61A-1492H-12-00 |
from US $27.77 |
||
|
30
|
30
6E5-1492G-44-00
Jet, Main Air Bleed
|
6E5-1492G-44-00 |
— | ||
|
32
|
32
6J8-14995-00-00 Gasket |
6J8-14995-00-00 |
from US $2.41 |
||
