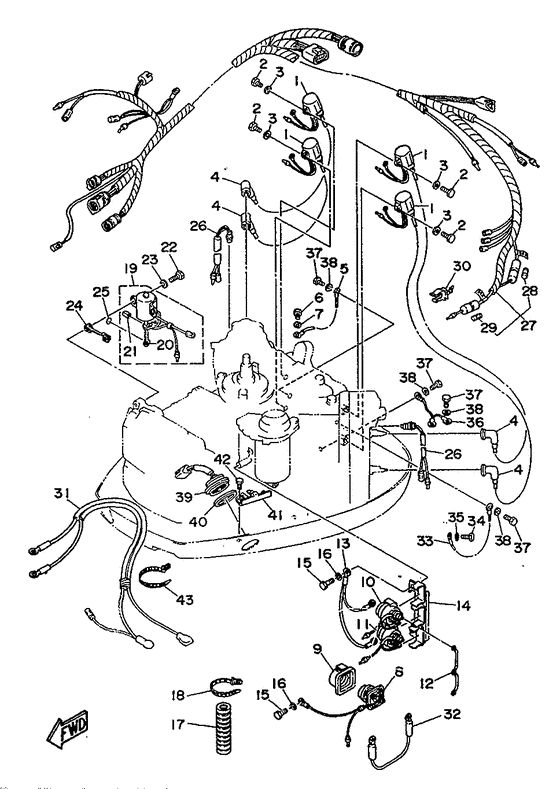

Electrical 2 Diagram Yamaha L130 ETOL/XL
- Year
- 1992
- Model
- L130B
- Model code
- 6N4
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6R3-85570-00-00 Ignition Coil Assembly |
6R3-85570-00-00 |
from US $172.13 |
||
|
02
|
02
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
02
|
02
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
03
|
03
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
04
|
04
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
04
|
04
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
05
|
05
6G2-82370-20-00
Plug Cap Assy
|
6G2-82370-20-00 |
— | ||
|
06
|
06
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
06
|
06
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
07
|
07
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
08
|
08
6E5-81941-11-00 Starter Relay Assy |
6E5-81941-11-00 |
US $165.79 |
||
| replacement | |||||
|
08
|
08
61A-81941-00-00 Starter Relay Assy |
61A-81941-00-00 |
from US $107.06 |
||
|
09
|
09
689-81952-10-00 Holder, Relay |
689-81952-10-00 |
from US $17.71 |
||
|
10
|
10
6E5-81950-00-00 Relay Assy |
6E5-81950-00-00 |
US $171.32 |
||
| replacement | |||||
|
10
|
10
6E5-81950-01-00 Relay Assy |
6E5-81950-01-00 |
from US $171.32 |
||
|
11
|
11
6E5-8195A-00-00 Relay Assy |
6E5-8195A-00-00 |
US $219.67 |
||
| replacement | |||||
|
11
|
11
6E5-8195A-01-00 Relay Assy |
6E5-8195A-01-00 |
from US $219.67 |
||
|
12
|
12
6G5-87149-10-00 Connector |
6G5-87149-10-00 |
from US $8.42 |
||
|
13
|
13
6E5-82116-00-00 Wire, Minus Lead |
6E5-82116-00-00 |
US $16.72 |
||
|
14
|
14
6E5-81948-21-00
Bracket
|
6E5-81948-21-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
15
|
15
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
15
|
15
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
17
|
17
6N7-82557-00-00
Nut
|
6N7-82557-00-00 |
— | ||
|
18
|
18
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
18
|
18
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
19
|
19
6N7-86110-00-00 Solenoid |
6N7-86110-00-00 |
from US $175.46 |
||
|
20
|
20
6N7-86116-00-00 Wire, Pull |
6N7-86116-00-00 |
from US $8.08 |
||
|
21
|
21
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
22
|
22
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
6N7-86112-00-00 Stay, Solenoid |
6N7-86112-00-00 |
from US $16.51 |
||
|
25
|
25
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
|
26
|
26
688-82560-10-00 Thermo Switch Assy |
688-82560-10-00 |
from US $50.50 |
||
|
27
|
27
6N7-82590-12-00
Wire Harness Assembly
|
6N7-82590-12-00 |
— | ||
|
28
|
28
682-82151-00-00 Fuse |
682-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
28
|
28
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.81 |
||
|
28
|
28
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.81 |
||
|
29
|
29
705-82151-00-00 Fuse (30A) |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
29
|
29
705-82151-01-00 FUSE 30A |
705-82151-01-00 |
from US $3.97 |
||
|
30
|
30
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.36 |
||
|
31
|
31
6N7-82105-01-00 Wire Harness |
6N7-82105-01-00 |
US $177.85 |
||
| replacement | |||||
|
31
|
31
6R3-82105-08-00 Wire Harness |
6R3-82105-08-00 |
US $177.85 |
||
|
32
|
32
6E5-82117-00-00 Wire, Lead |
6E5-82117-00-00 |
US $26.35 |
||
| replacements | |||||
|
32
|
32
6E5-82117-01-00 Wire, Lead |
6E5-82117-01-00 |
US $26.35 |
||
|
32
|
32
6E5-82117-02-00 Wire, Lead |
6E5-82117-02-00 |
US $19.33 |
||
|
33
|
33
6R3-82519-00-00 Wire, Earth Lead |
6R3-82519-00-00 |
from US $13.32 |
||
|
34
|
34
92990-06012-00
Washer
|
92990-06012-00 |
— | ||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
36
|
36
6E5-82531-00-00 Wire, Lead |
6E5-82531-00-00 |
US $10.34 |
||
| replacement | |||||
|
36
|
36
6E5-82531-10-00 Wire, Lead |
6E5-82531-10-00 |
from US $10.34 |
||
|
37
|
37
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
37
|
37
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
39
|
39
6R3-82563-00-00 Trim & Tilt Switch Assy |
6R3-82563-00-00 |
US $124.07 |
||
| replacement | |||||
|
39
|
39
6R3-82563-01-00 Trim & Tilt Switch Assy |
6R3-82563-01-00 |
from US $78.10 |
||
|
40
|
40
6E5-82587-00-00 Gasket |
6E5-82587-00-00 |
US $5.58 |
||
|
41
|
41
6R3-83614-00-00 Bracket |
6R3-83614-00-00 |
from US $9.07 |
||
|
42
|
42
973-95060-16-00
Bolt, Hex
|
973-95060-16-00 |
— | ||
| replacements | |||||
|
42
|
42
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
|
42
|
42
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
43
|
43
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
43
|
43
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
