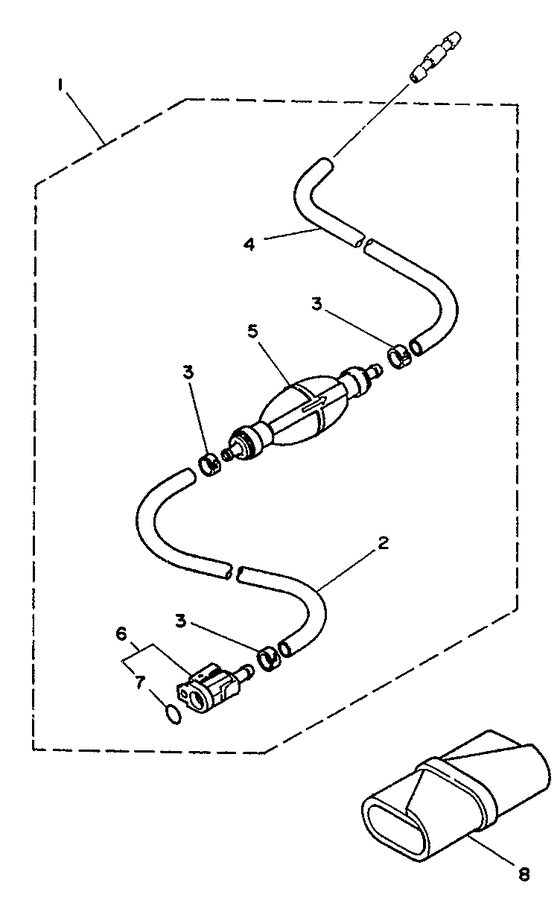

Fuel 2 Diagram Yamaha L130 ETOL/XL
- Year
- 1992
- Model
- L130B
- Model code
- 6N4
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6Y2-24306-40-00 Fuel Pipe Comp. 1 |
6Y2-24306-40-00 |
US $92.01 |
||
| replacement | |||||
|
01
|
01
6YK-24306-64-00 Fuel Pipe Comp. 1 |
6YK-24306-64-00 |
from US $144.49 |
||
|
02
|
02
90445-13M01-00 Hose (L2050) |
90445-13M01-00 |
US $33.86 |
||
|
03
|
03
6E5-24351-51-00 Band 1 |
6E5-24351-51-00 |
from US $7.93 |
||
|
04
|
04
90445-013M3-50
Hose
|
90445-013M3-50 |
— | ||
|
05
|
05
6Y2-24360-51-00
Primer Pump Assy
|
6Y2-24360-51-00 |
— | ||
| replacement | |||||
|
05
|
05
6YK-24360-73-00 Primer Pump Assy |
6YK-24360-73-00 |
from US $52.65 |
||
|
06
|
06
6Y2-24305-01-00 Fuel Pipe Joint Comp 2 |
6Y2-24305-01-00 |
US $28.34 |
||
| replacement | |||||
|
06
|
06
6Y2-24305-06-00 Fuel Pipe Joint Comp 2 |
6Y2-24305-06-00 |
from US $28.34 |
||
|
07
|
07
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
08
|
08
656-W2810-01-00 Tool Kit |
656-W2810-01-00 |
US $40.62 |
||
| replacements | |||||
|
08
|
08
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
|
08
|
08
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
