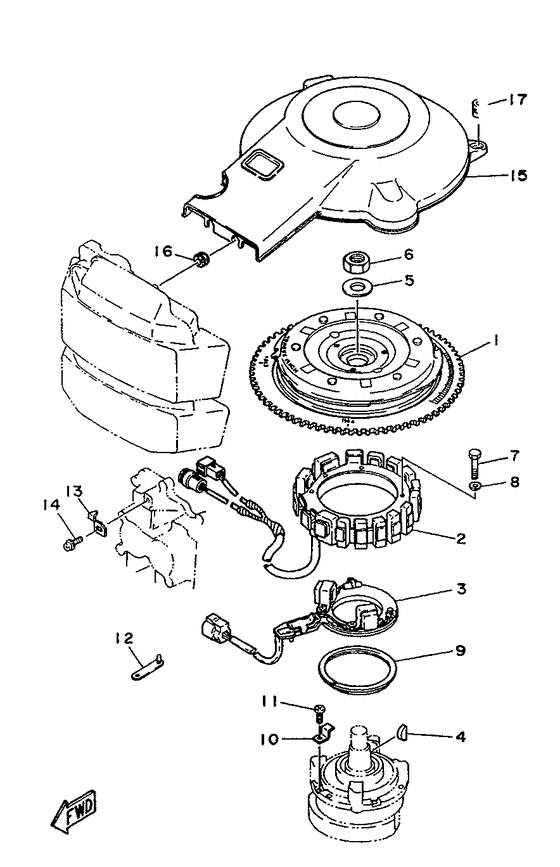

Magneto Diagram Yamaha L130 ETOL/XL
- Year
- 1992
- Model
- L130B
- Model code
- 6N4
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6N7-85550-00-00 Rotor Assy |
6N7-85550-00-00 |
US $1,702.80 |
||
| replacement | |||||
|
01
|
01
6N7-85550-01-00 Rotor Assy |
6N7-85550-01-00 |
from US $1,654.02 |
||
|
02
|
02
6N7-85510-00-00 Stator Assy |
6N7-85510-00-00 |
from US $841.28 |
||
|
03
|
03
6N7-85580-00-00 Coil, Pulser |
6N7-85580-00-00 |
US $780.12 |
||
| replacement | |||||
|
03
|
03
6E5-85580-00-00 Coil, Pulser |
6E5-85580-00-00 |
from US $614.48 |
||
|
04
|
04
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
05
|
05
90201-21M18-00 Washer, Plate |
90201-21M18-00 |
from US $7.08 |
||
|
06
|
06
90170-20137-00 Nut |
90170-20137-00 |
from US $9.44 |
||
|
07
|
07
97313-06065-00 Bolt (62J) |
97313-06065-00 |
from US $5.24 |
||
| replacement | |||||
|
07
|
07
97013-06065-00 Bolt |
97013-06065-00 |
from US $3.68 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
688-41611-00-00 Retainer, Magneto Base |
688-41611-00-00 |
from US $11.90 |
||
|
10
|
10
688-41612-00-00 Retainer, Magneto Base |
688-41612-00-00 |
from US $5.67 |
||
|
11
|
11
98503-06018-00 Screw, Pan Head (92503-060180-00) |
98503-06018-00 |
US $2.99 |
||
| replacement | |||||
|
11
|
11
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
12
|
12
90464-12M00-00
Clamp
|
90464-12M00-00 |
— | ||
| replacement | |||||
|
12
|
12
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
13
|
13
6E5-81332-00-00 Plate, Timing |
6E5-81332-00-00 |
from US $6.23 |
||
|
14
|
14
97985-06210-00 Screw Pan Head W/w (6R3) |
97985-06210-00 |
from US $1.98 |
||
| replacement | |||||
|
14
|
14
985-80060-10-00 Screw, Pan Head (92503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
15
|
15
6N7-81337-00-00 Cover, Flywheel |
6N7-81337-00-00 |
from US $70.58 |
||
|
16
|
16
90480-12M11-00 Grommet |
90480-12M11-00 |
from US $3.60 |
||
|
17
|
17
663-82317-00-00 Damper, Ignition Coil |
663-82317-00-00 |
US $4.96 |
||
| replacement | |||||
|
17
|
17
663-82317-02-00 Damper, Ignition Coil |
663-82317-02-00 |
from US $5.06 |
||
