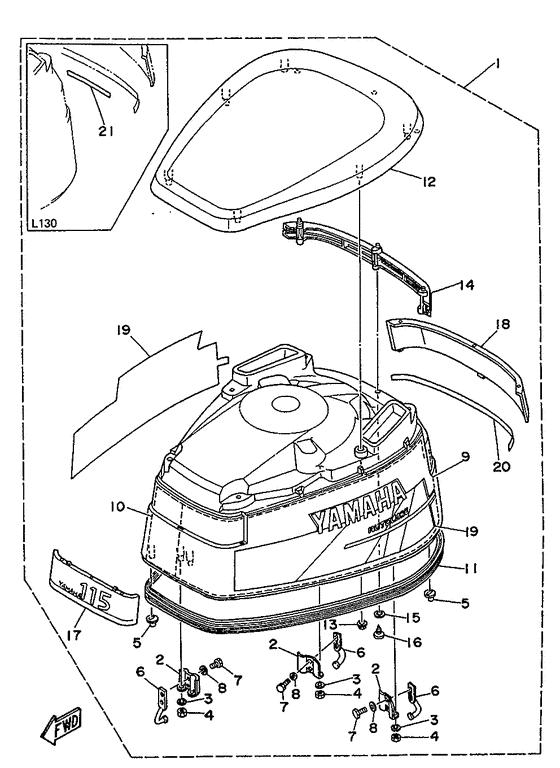

Capot supprieur Diagram Yamaha L130 ETOL/XL
- Year
- 1995
- Model
- L130B
- Model code
- 6N4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6N4-42610-A0-4D
Top Cowling Assy
Ur l130 |
6N4-42610-A0-4D |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur l130 |
999-99999-99-00 |
— | ||
|
01
|
01
6N6-42610-A0-4D Top Cowling AssyUr 115 |
6N6-42610-A0-4D |
US $1,392.42 |
||
| replacement | |||||
|
01
|
01
6N6-42610-00-00 Top Cowling AssyUr 115 |
6N6-42610-00-00 |
US $1,378.77 |
||
|
01
|
01
6N7-42610-A0-4D Top Cowling AssyUr 130 |
6N7-42610-A0-4D |
US $1,378.77 |
||
| replacement | |||||
|
01
|
01
6N7-42610-00-00
TOP COWLING ASSY
Ur 130 |
6N7-42610-00-00 |
— | ||
|
02
|
02
6R3-42647-00-00 Holder, Clamp Band |
6R3-42647-00-00 |
from US $22.24 |
||
|
03
|
03
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
04
|
04
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
05
|
05
6R3-42662-00-00 Damper |
6R3-42662-00-00 |
US $10.77 |
||
|
06
|
06
6R3-42814-00-00 Hook, Clamp |
6R3-42814-00-00 |
from US $27.34 |
||
|
07
|
07
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
07
|
07
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
08
|
08
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
09
|
09
6N7-42619-00-00 Damper, Form |
6N7-42619-00-00 |
from US $36.65 |
||
|
10
|
10
6N7-42627-00-00 Damper, Form |
6N7-42627-00-00 |
from US $35.84 |
||
|
11
|
11
6R3-42615-01-00 Seal |
6R3-42615-01-00 |
US $111.91 |
||
| replacement | |||||
|
11
|
11
6N7-42615-00-00 Seal |
6N7-42615-00-00 |
from US $103.18 |
||
|
12
|
12
6N7-42613-4D-00
Molding, Air Duct
|
6N7-42613-4D-00 |
— | ||
|
13
|
13
90179-06M24-00 Nut |
90179-06M24-00 |
from US $2.69 |
||
|
14
|
14
6N7-42636-00-00 Louver 2 |
6N7-42636-00-00 |
from US $55.82 |
||
|
15
|
15
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
16
|
16
97780-40120-00 Ybs83-420 Screw,panh,tapping |
97780-40120-00 |
from US $1.42 |
||
|
17
|
17
6N7-42686-00-00 Emblem, FrontUr 130/l130 |
6N7-42686-00-00 |
US $128.63 |
||
| replacement | |||||
|
17
|
17
6N7-42686-40-00 Emblem, FrontUr 130/l130 |
6N7-42686-40-00 |
from US $128.63 |
||
|
17
|
17
6N6-42686-00-00 Emblem, FrontUr 115 |
6N6-42686-00-00 |
US $128.63 |
||
| replacement | |||||
|
17
|
17
6N6-42686-40-00 Emblem, FrontUr 115 |
6N6-42686-40-00 |
from US $128.63 |
||
|
18
|
18
6N6-42687-00-00 Emblem, RearUr 115 |
6N6-42687-00-00 |
US $180.99 |
||
| replacement | |||||
|
18
|
18
6N6-42687-30-00 Emblem, RearUr 115 |
6N6-42687-30-00 |
from US $180.99 |
||
|
18
|
18
6N7-42687-00-00 Emblem, RearUr 130/l130 |
6N7-42687-00-00 |
US $180.99 |
||
| replacement | |||||
|
18
|
18
6N7-42687-30-00 Emblem, RearUr 130/l130 |
6N7-42687-30-00 |
from US $180.99 |
||
|
19
|
19
6N7-W0070-A0-00
Graphic Set
|
6N7-W0070-A0-00 |
— | ||
|
20
|
20
6N7-4267A-A0-00
Graphic, Rear 2
|
6N7-4267A-A0-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
6R1-42687-G0-00
Emblem, Rear
L130 |
6R1-42687-G0-00 |
— | ||
