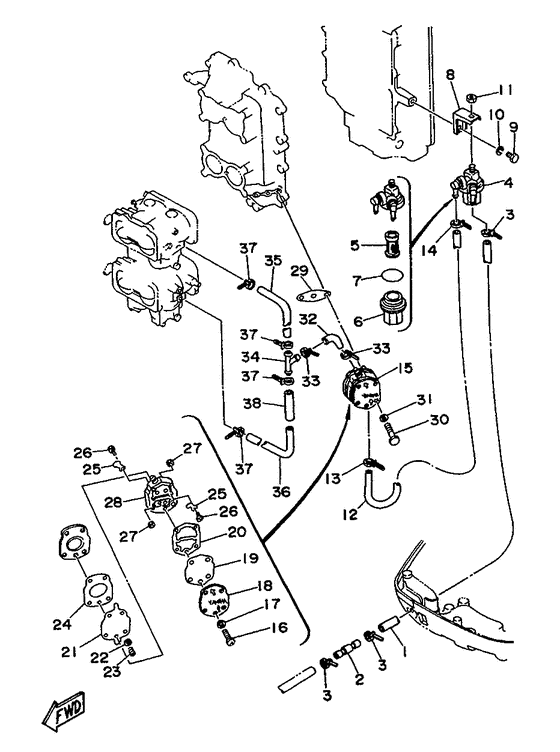

Fuel Diagram Yamaha L130 ETOL/XL
- Year
- 1995
- Model
- L130B
- Model code
- 6N4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6N7-24313-00-00 Pipe 3 |
6N7-24313-00-00 |
from US $20.97 |
||
|
02
|
02
6R3-24377-00-00 Pipe, Joint 2 |
6R3-24377-00-00 |
from US $5.24 |
||
|
03
|
03
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
03
|
03
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
03
|
03
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
04
|
04
6R3-24560-00-00 Filter Assy |
6R3-24560-00-00 |
from US $50.98 |
||
|
05
|
05
6R3-24563-00-00 Element, Filter |
6R3-24563-00-00 |
US $7.49 |
||
| replacement | |||||
|
05
|
05
61N-24563-10-00 Element, Filter |
61N-24563-10-00 |
from US $7.49 |
||
|
06
|
06
61N-24521-00-00 Cup, Filter |
61N-24521-00-00 |
from US $13.46 |
||
|
07
|
07
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.39 |
||
|
08
|
08
6E5-24566-00-00 Bracket, Filter |
6E5-24566-00-00 |
from US $13.32 |
||
|
09
|
09
97313-06014-00 Bolt, Hexagon |
97313-06014-00 |
US $2.41 |
||
| replacements | |||||
|
09
|
09
97080-06014-00 Bolt |
97080-06014-00 |
from US $7.08 |
||
|
09
|
09
97095-06014-00 Bolt |
97095-06014-00 |
US $1.56 |
||
|
09
|
09
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
09
|
09
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
09
|
09
97D95-06014-00 Bolt, Hexagon Deep R |
97D95-06014-00 |
from US $1.18 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
11
|
11
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
11
|
11
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
12
|
12
6E5-24314-00-00 Pipe 4 |
6E5-24314-00-00 |
from US $9.21 |
||
|
13
|
13
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
13
|
13
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
13
|
13
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
14
|
14
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
14
|
14
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
14
|
14
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
15
|
15
6E5-24410-03-00 Fuel Pump Assy |
6E5-24410-03-00 |
from US $103.34 |
||
| replacement | |||||
|
15
|
15
6E5-24410-09-00 Fuel Pump Assy |
6E5-24410-09-00 |
from US $68.45 |
||
|
16
|
16
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
6E5-24413-00-00 Body 2 |
6E5-24413-00-00 |
US $22.62 |
||
|
19
|
19
6E5-24471-00-00 Diaphragm |
6E5-24471-00-00 |
from US $15.50 |
||
|
20
|
20
6E5-24435-00-00 Gasket, Body 2 |
6E5-24435-00-00 |
from US $13.46 |
||
|
21
|
21
6E5-24411-00-00 Diaphragm |
6E5-24411-00-00 |
from US $48.29 |
||
|
22
|
22
648-24424-00-00 Seat, Spring |
648-24424-00-00 |
from US $3.68 |
||
|
23
|
23
6E5-24423-00-00 Spring, Diaphragm |
6E5-24423-00-00 |
from US $4.11 |
||
|
24
|
24
6E5-24434-02-00 Gasket, Body |
6E5-24434-02-00 |
from US $6.40 |
||
|
25
|
25
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
25
|
25
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $8.08 |
||
|
26
|
26
6A0-14325-00-00 Screw, Pan Head |
6A0-14325-00-00 |
from US $4.11 |
||
|
27
|
27
95380-03600-00 Nut |
95380-03600-00 |
from US $1.56 |
||
|
28
|
28
6E5-24412-02-00
Body 1
|
6E5-24412-02-00 |
— | ||
|
29
|
29
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.70 |
||
|
30
|
30
973-95060-50-00
Bolt
|
973-95060-50-00 |
— | ||
| replacement | |||||
|
30
|
30
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
31
|
31
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
32
|
32
6G5-24316-10-00 Pipe 6 |
6G5-24316-10-00 |
from US $8.37 |
||
|
33
|
33
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
33
|
33
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
33
|
33
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
34
|
34
6E5-24376-10-00 Pipe, Joint 1 |
6E5-24376-10-00 |
from US $11.14 |
||
|
35
|
35
6G5-24318-10-00 Pipe, Overflow |
6G5-24318-10-00 |
US $3.54 |
||
| replacement | |||||
|
35
|
35
90445-13579-00 Hose (L85) |
90445-13579-00 |
from US $3.54 |
||
|
36
|
36
6G5-24319-10-00 Pipe, Oil |
6G5-24319-10-00 |
from US $6.66 |
||
|
37
|
37
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
37
|
37
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
37
|
37
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
38
|
38
90446-15M07-00 Hose (L60) |
90446-15M07-00 |
from US $1.84 |
||
