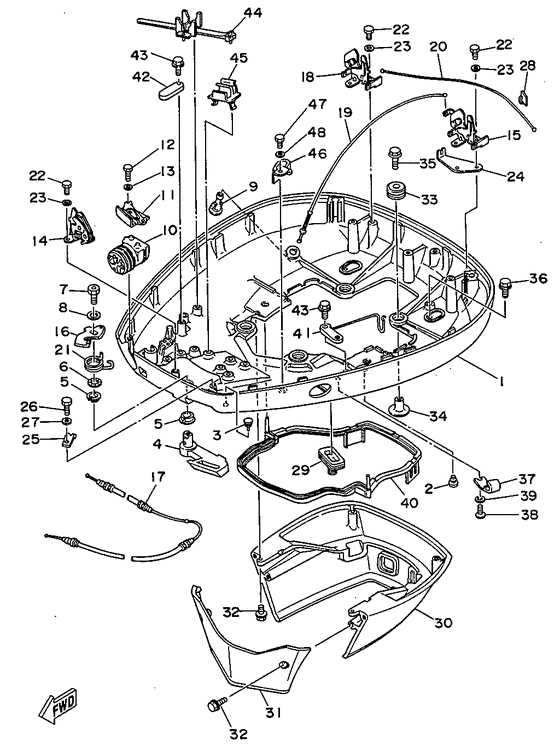

Bottom cowling Diagram Yamaha L130 ETOL/XL
- Year
- 1997
- Model
- L130B
- Model code
- 6N4
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6N7-42711-43-8D Cowling, Bottom 1 |
6N7-42711-43-8D |
from US $996.61 |
||
|
02
|
02
90480-06M19-00 Grommet |
90480-06M19-00 |
from US $3.33 |
||
|
03
|
03
6H4-42748-00-00 Grommet |
6H4-42748-00-00 |
US $1.98 |
||
|
04
|
04
6N7-42815-01-8D Lever, Clamp |
6N7-42815-01-8D |
from US $50.01 |
||
|
05
|
05
90386-13M88-00 Bush |
90386-13M88-00 |
from US $4.99 |
||
|
06
|
06
90206-13M10-00 Washer, Wave |
90206-13M10-00 |
from US $2.91 |
||
|
07
|
07
90109-08M45-00 Bolt |
90109-08M45-00 |
from US $8.08 |
||
|
08
|
08
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.18 |
||
|
09
|
09
6E5-44391-00-00 Nipple, Hose |
6E5-44391-00-00 |
from US $5.10 |
||
|
10
|
10
6N7-42725-20-00 Grommet |
6N7-42725-20-00 |
US $35.99 |
||
|
11
|
11
6N7-42738-02-5B Plate, Fitting |
6N7-42738-02-5B |
US $17.85 |
||
| replacement | |||||
|
11
|
11
6N7-42738-02-8D Plate, Fitting |
6N7-42738-02-8D |
from US $17.85 |
||
|
12
|
12
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
12
|
12
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
6R3-42824-00-00 Base, Clamp Lever |
6R3-42824-00-00 |
from US $76.96 |
||
|
15
|
15
6R3-42811-01-00 Stay |
6R3-42811-01-00 |
from US $66.22 |
||
|
16
|
16
6R3-42816-00-00 Lever, Clamp |
6R3-42816-00-00 |
from US $27.43 |
||
|
17
|
17
6N7-42850-00-00 Wire Complete |
6N7-42850-00-00 |
from US $63.14 |
||
|
18
|
18
6R3-42811-10-00 Stay |
6R3-42811-10-00 |
from US $71.29 |
||
|
19
|
19
6N7-42850-10-00 Wire Complete |
6N7-42850-10-00 |
from US $63.14 |
||
|
20
|
20
6N7-42850-20-00 Wire Complete |
6N7-42850-20-00 |
from US $63.14 |
||
|
21
|
21
6R3-42813-00-00 Spring, Clamp Lever |
6R3-42813-00-00 |
from US $6.94 |
||
|
22
|
22
97095-06016-00 Bolt |
97095-06016-00 |
US $1.52 |
||
| replacement | |||||
|
22
|
22
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.52 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
6N7-42828-00-00 Plate, Clamp |
6N7-42828-00-00 |
from US $10.77 |
||
|
25
|
25
6R3-42828-00-00 Plate, Clamp |
6R3-42828-00-00 |
from US $2.98 |
||
|
26
|
26
970-95060-10-00
Bolt
|
970-95060-10-00 |
— | ||
| replacement | |||||
|
26
|
26
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
28
|
28
6N7-42841-00-00
Mark, Clamp
|
6N7-42841-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
688-42726-10-00 Grommet |
688-42726-10-00 |
US $5 |
||
|
30
|
30
6N7-42741-01-8D Apron |
6N7-42741-01-8D |
from US $287.55 |
||
|
31
|
31
6R3-42771-01-8D Apron |
6R3-42771-01-8D |
from US $105.97 |
||
|
32
|
32
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
32
|
32
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
32
|
32
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
33
|
33
90480-22M15-00 Grommet |
90480-22M15-00 |
from US $5.67 |
||
|
34
|
34
90387-08M37-00 Collar |
90387-08M37-00 |
from US $7.79 |
||
|
35
|
35
90119-08M22-00 Bolt, With Washer |
90119-08M22-00 |
from US $3.60 |
||
| replacement | |||||
|
35
|
35
901-19081-87-00 BOLT WITH WASHER |
901-19081-87-00 |
from US $6.09 |
||
|
36
|
36
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
36
|
36
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
36
|
36
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
37
|
37
6E5-24367-10-00 Clamp, Fuel Pipe 2 |
6E5-24367-10-00 |
from US $14.31 |
||
|
38
|
38
90157-06M01-00 Screw, Pan Head |
90157-06M01-00 |
from US $2.91 |
||
|
39
|
39
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
40
|
40
6E5-42716-00-00 Rubber, Seal 1 |
6E5-42716-00-00 |
US $89.53 |
||
|
41
|
41
6K7-82588-00-00 Plate |
6K7-82588-00-00 |
from US $22.67 |
||
|
42
|
42
6E5-82588-00-00 Plate |
6E5-82588-00-00 |
from US $5.97 |
||
|
43
|
43
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
43
|
43
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
43
|
43
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
44
|
44
688-82594-00-00 Clamp |
688-82594-00-00 |
from US $6.52 |
||
|
45
|
45
6E5-82594-00-00 Clamp |
6E5-82594-00-00 |
from US $6.52 |
||
|
46
|
46
90465-12M25-00 Clamp |
90465-12M25-00 |
from US $7.37 |
||
|
47
|
47
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
47
|
47
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
48
|
48
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
