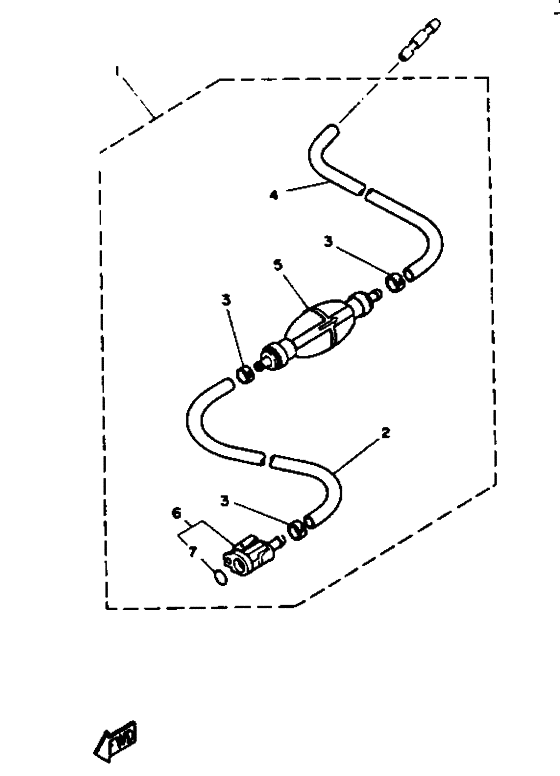

Fuel system Diagram Yamaha L130 TL/XLR
- Year
- 1991
- Model
- L130
- Year
- 1991
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y2-24306-40-00 Fuel Pipe Comp. 1 |
6Y2-24306-40-00 |
US $92.01 |
||
| replacement | |||||
|
1
|
1
6YK-24306-64-00 Fuel Pipe Comp. 1 |
6YK-24306-64-00 |
from US $144.49 |
||
|
2
|
2
90445-13M01-00 Hose (L2050) |
90445-13M01-00 |
US $33.86 |
||
|
3
|
3
6E5-24351-51-00 Band 1 |
6E5-24351-51-00 |
from US $7.93 |
||
|
4
|
4
90445-13M35-00
Hose
|
90445-13M35-00 |
— | ||
| replacement | |||||
|
4
|
4
90445-131J9-00
Hose
|
90445-131J9-00 |
— | ||
|
5
|
5
6Y2-24360-51-00
Primer Pump Assy
|
6Y2-24360-51-00 |
— | ||
| replacement | |||||
|
5
|
5
6YK-24360-73-00 Primer Pump Assy |
6YK-24360-73-00 |
from US $52.65 |
||
|
6
|
6
6Y2-24305-02-00
Fuel Pipe Joint Comp 2
|
6Y2-24305-02-00 |
— | ||
| replacement | |||||
|
6
|
6
6Y2-24305-06-00 Fuel Pipe Joint Comp 2 |
6Y2-24305-06-00 |
from US $28.34 |
||
|
7
|
7
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
