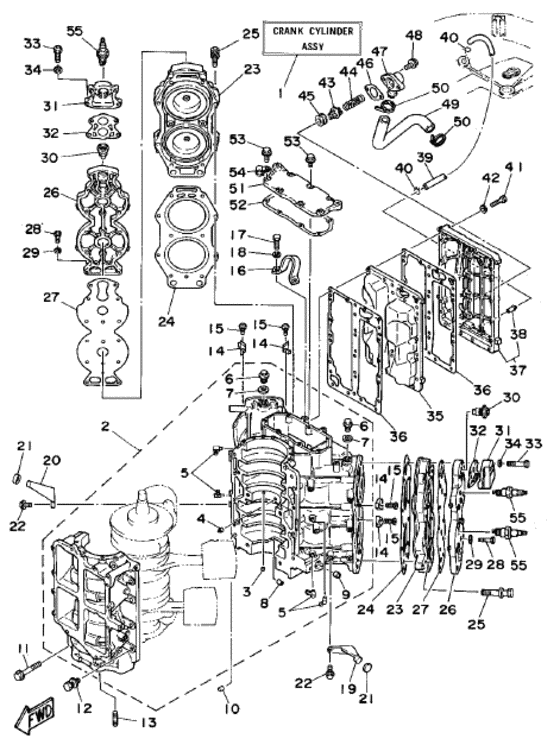

Cylinder crankcase Diagram Yamaha L130 TL/XLR
- Year
- 1995
- Model
- L130
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6N7-W0090-15-4D Crank Cylinder Assembly (Ref. #2~26 & Cylinder - Crank 001)001 |
6N7-W0090-15-4D |
US $8,263.20 |
||
| replacement | |||||
|
1
|
1
6N7-W0090-20-1S Crank Cylinder Assy001 |
6N7-W0090-20-1S |
from US $7,689.42 |
||
|
1
|
1
6N6-W0090-14-4D
Crank Cylinder Assembly (Ref. #2~26 & Cylinder - Crank)
|
6N6-W0090-14-4D |
— | ||
| replacement | |||||
|
1
|
1
6N6-W0090-14-1S
Crank Cylinder Assy
|
6N6-W0090-14-1S |
— | ||
|
2
|
2
6N6-15100-00-94 Crankcase Assembly |
6N6-15100-00-94 |
US $3,590.40 |
||
| replacement | |||||
|
2
|
2
6N6-15100-10-00 Crankcase Assy |
6N6-15100-10-00 |
from US $3,306.86 |
||
|
2
|
2
6N7-15100-00-94 Crankcase Assembly |
6N7-15100-00-94 |
US $4,131.60 |
||
| replacements | |||||
|
2
|
2
6N7-15100-01-1S Crankcase Assy |
6N7-15100-01-1S |
US $4,131.60 |
||
|
2
|
2
6N7-15100-02-00 Crankcase Assy |
6N7-15100-02-00 |
US $5,134.50 |
||
|
3
|
3
624-11379-00-00 Valve, Check |
624-11379-00-00 |
from US $3.72 |
||
|
4
|
4
663-11518-01-00 Lock, Bearing |
663-11518-01-00 |
from US $6.38 |
||
|
5
|
5
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
5
|
5
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $8.08 |
||
|
6
|
6
903-4014M-00-00
Plug, Straight Screw
|
903-4014M-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90340-14M06-00 Plug, Straight Screw |
90340-14M06-00 |
from US $6.51 |
||
|
7
|
7
904-30141-15-00 Gasket |
904-30141-15-00 |
from US $2.08 |
||
|
8
|
8
90384-06M07-00 Bush, Bimetal Formed |
90384-06M07-00 |
US $2.55 |
||
|
9
|
9
903-8414M-09-00
Bush, Bimetal Formed
|
903-8414M-09-00 |
— | ||
| replacement | |||||
|
9
|
9
903-84140-11-00 Bush, Bimetal Formed |
903-84140-11-00 |
US $2.83 |
||
|
10
|
10
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
11
|
11
90105-10M20-00 Bolt, Flange |
90105-10M20-00 |
from US $7.51 |
||
|
12
|
12
90119-08M23-00
Bolt, W/washer
|
90119-08M23-00 |
— | ||
|
13
|
13
90116-08M45-00 Bolt, Stud |
90116-08M45-00 |
US $10.48 |
||
| replacement | |||||
|
13
|
13
90116-08M14-00 Bolt, Stud |
90116-08M14-00 |
from US $8.01 |
||
|
14
|
14
6E5-11325-00-00 Anode |
6E5-11325-00-00 |
from US $5.40 |
||
|
15
|
15
98780-04015-00 Screw,flat Head |
98780-04015-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
98780-04014-00 Screw, Flat Head(Ga5) |
98780-04014-00 |
from US $1.70 |
||
|
16
|
16
6E5-11119-00-00 Hanger, Engine |
6E5-11119-00-00 |
US $14.31 |
||
| replacement | |||||
|
16
|
16
6E5-11119-01-00 Hanger, Engine |
6E5-11119-01-00 |
from US $14.31 |
||
|
17
|
17
973-13080-20-00
Bolt (661)
|
973-13080-20-00 |
— | ||
| replacements | |||||
|
17
|
17
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
17
|
17
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
6E5-42761-00-94 Stopper |
6E5-42761-00-94 |
US $16.01 |
||
| replacement | |||||
|
19
|
19
6E5-42761-00-1S Stopper |
6E5-42761-00-1S |
from US $16.01 |
||
|
20
|
20
6E5-42762-00-94 Stopper |
6E5-42762-00-94 |
US $16.01 |
||
| replacement | |||||
|
20
|
20
6E5-42762-00-1S Stopper |
6E5-42762-00-1S |
from US $14.47 |
||
|
21
|
21
663-44533-00-00 Damper, Upper Mount Rubber |
663-44533-00-00 |
from US $5.38 |
||
|
22
|
22
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
22
|
22
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
23
|
23
6E5-11111-10-94 Head, Cylinder 1 |
6E5-11111-10-94 |
US $386.01 |
||
| replacement | |||||
|
23
|
23
6E5-11111-10-1S Head, Cylinder 1 |
6E5-11111-10-1S |
from US $269.53 |
||
|
23
|
23
6L1-11111-00-94 Head, Cylinder 1 |
6L1-11111-00-94 |
US $386.01 |
||
| replacement | |||||
|
23
|
23
6L1-11111-00-1S Head, Cylinder 1 |
6L1-11111-00-1S |
from US $117.82 |
||
|
24
|
24
6E5-11181-A0-00 Gasket, Cylinder Head 1 |
6E5-11181-A0-00 |
US $92.43 |
||
| replacement | |||||
|
24
|
24
6E5-11181-A2-00 Gasket, Cylinder Head 1 |
6E5-11181-A2-00 |
from US $49.82 |
||
|
25
|
25
90119-08M21-00 Bolt,with Washer |
90119-08M21-00 |
from US $3.08 |
||
| replacement | |||||
|
25
|
25
90119-08M07-00 Bolt, With Washer |
90119-08M07-00 |
from US $4.68 |
||
|
26
|
26
6E5-11191-01-9M Cover, Cylinder Head 1 |
6E5-11191-01-9M |
US $116.88 |
||
| replacement | |||||
|
26
|
26
6E5-11191-01-1S Cover, Cylinder Head 1 |
6E5-11191-01-1S |
from US $61.67 |
||
|
27
|
27
6E5-11193-A0-00 Gasket, Head Cover 1 |
6E5-11193-A0-00 |
from US $41.08 |
||
|
28
|
28
970-95060-30-00
Bolt
|
970-95060-30-00 |
— | ||
| replacement | |||||
|
28
|
28
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
29
|
29
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
30
|
30
6E5-12411-20-00 Thermostat |
6E5-12411-20-00 |
US $50.01 |
||
| replacement | |||||
|
30
|
30
6E5-12411-30-00 Thermostat |
6E5-12411-30-00 |
from US $40.10 |
||
|
31
|
31
6G5-12413-00-9M Cover, Thermostat |
6G5-12413-00-9M |
US $44.62 |
||
| replacement | |||||
|
31
|
31
6G5-12413-00-1S Cover, Thermostat |
6G5-12413-00-1S |
from US $23.60 |
||
|
32
|
32
688-12414-A1-00 Gasket, Cover |
688-12414-A1-00 |
from US $3.04 |
||
|
33
|
33
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
33
|
33
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.39 |
||
|
34
|
34
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
35
|
35
6E5-41111-00-9M Inner Cover, Exhaust |
6E5-41111-00-9M |
US $118.13 |
||
| replacement | |||||
|
35
|
35
6E5-41111-00-1S Inner Cover, Exhaust |
6E5-41111-00-1S |
from US $111.38 |
||
|
35
|
35
6L1-41111-00-9M Inner Cover, Exhaust |
6L1-41111-00-9M |
US $124.21 |
||
| replacement | |||||
|
35
|
35
6L1-41111-00-1S Inner Cover, Exhaust |
6L1-41111-00-1S |
from US $56.22 |
||
|
36
|
36
6E5-41112-A1-00 Gasket, Exhaust Inner Cover |
6E5-41112-A1-00 |
from US $26.49 |
||
|
37
|
37
6N7-41113-00-9M Outer Cover, Exhaust |
6N7-41113-00-9M |
US $122.55 |
||
| replacement | |||||
|
37
|
37
6N7-41113-00-1S Outer Cover, Exhaust |
6N7-41113-00-1S |
from US $116.03 |
||
|
38
|
38
652-24461-00-00 Pipe, Joint 4 |
652-24461-00-00 |
from US $3.97 |
||
|
39
|
39
6E5-24312-00-00 Pipe 2 |
6E5-24312-00-00 |
from US $9.21 |
||
|
40
|
40
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
41
|
41
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
41
|
41
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
42
|
42
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
43
|
43
6G5-12416-00-00 Valve, Pressure Cont |
6G5-12416-00-00 |
from US $15.16 |
||
| replacement | |||||
|
43
|
43
60H-12416-00-00 Valve, Pressure Control |
60H-12416-00-00 |
from US $9.78 |
||
|
44
|
44
90501-16M11-00 Spring, Compression |
90501-16M11-00 |
from US $2.70 |
||
|
45
|
45
904-8020M-05-00 Grommet |
904-8020M-05-00 |
from US $1.70 |
||
|
46
|
46
6G5-11382-A1-00 Gasket 2 |
6G5-11382-A1-00 |
from US $2.02 |
||
|
47
|
47
6G5-11372-00-5B Nipple, Hose (6G5-11372-00-9M)6G5-11372-00-9M |
6G5-11372-00-5B |
US $20.54 |
||
| replacement | |||||
|
47
|
47
6G5-11372-00-1S Cover, Bypass 26G5-11372-00-9M |
6G5-11372-00-1S |
from US $19.20 |
||
|
48
|
48
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
48
|
48
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
48
|
48
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
49
|
49
6E5-12576-00-00 Hose 1 |
6E5-12576-00-00 |
from US $13.14 |
||
|
50
|
50
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
50
|
50
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
51
|
51
6K7-11371-01-9M Cover |
6K7-11371-01-9M |
US $32.02 |
||
| replacement | |||||
|
51
|
51
6K7-11371-01-1S Cover |
6K7-11371-01-1S |
from US $32.02 |
||
|
52
|
52
6E5-11381-A1-00 Gasket 1 |
6E5-11381-A1-00 |
US $10.20 |
||
| replacement | |||||
|
52
|
52
6E5-11381-A2-00 Gasket 1 |
6E5-11381-A2-00 |
from US $8.08 |
||
|
53
|
53
975-95065-20-00
Bolt, With Washer
|
975-95065-20-00 |
— | ||
| replacements | |||||
|
53
|
53
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
53
|
53
97E95-06520-00 Bolt, Hexagon W/w De |
97E95-06520-00 |
from US $1.07 |
||
|
54
|
54
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
55
|
55
NGK-BR8HS-10-00
Plug, Spark (Ngk Br8Hs-10)
|
NGK-BR8HS-10-00 |
— | ||
| replacement | |||||
|
55
|
55
BR8-HS100-00-00 Plug, Spark (Ngk Br8Hs-10) |
BR8-HS100-00-00 |
US $27.56 |
||
|
55
|
55
NGK-BR9HS-10-00
Plug, Spark (Ngk Br9Hs-10)
|
NGK-BR9HS-10-00 |
— | ||
| replacement | |||||
|
55
|
55
BR9-HS100-00-00 ATV LIT KIT |
BR9-HS100-00-00 |
US $68.90 |
||
