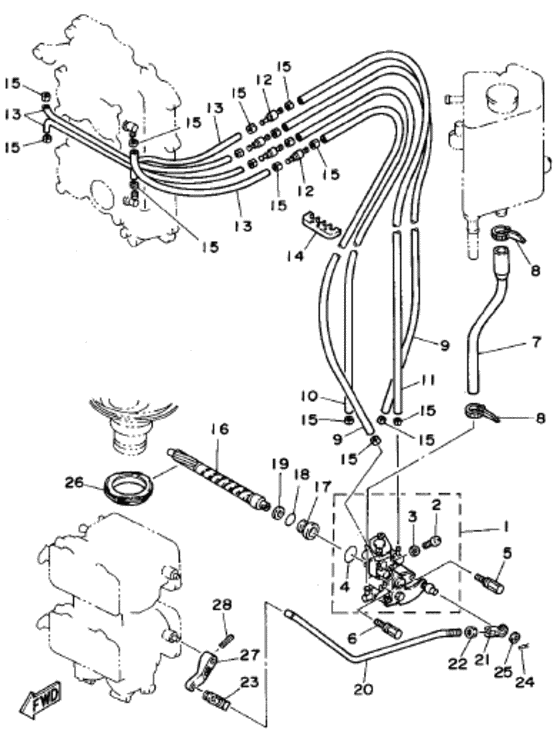

Oil pump Diagram Yamaha L130 TL/XLR
- Year
- 1995
- Model
- L130
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6N6-13200-00-00 Oil Injection Pump Assy |
6N6-13200-00-00 |
from US $314.89 |
||
|
1
|
1
6N7-13200-00-00 Oil Injection Pump Assy |
6N7-13200-00-00 |
from US $416.34 |
||
|
2
|
2
716-24444-00-00 Plug, Drain |
716-24444-00-00 |
from US $3.83 |
||
|
3
|
3
1YU-13187-00-00 Tiiviste ( Me 5 ) *tt |
1YU-13187-00-00 |
from US $1.98 |
||
|
4
|
4
93210-19MA7-00 O-Ring |
93210-19MA7-00 |
from US $4.11 |
||
|
5
|
5
90109-06M40-00 Bolt |
90109-06M40-00 |
from US $2.16 |
||
|
6
|
6
90109-06M39-00 Bolt |
90109-06M39-00 |
from US $2.09 |
||
|
7
|
7
6N7-13416-00-00 Pipe, Oil 1 |
6N7-13416-00-00 |
from US $8.93 |
||
|
8
|
8
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
8
|
8
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.17 |
||
|
8
|
8
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
9
|
9
90445-07M89-00 Hose (L310) |
90445-07M89-00 |
US $4.25 |
||
| replacements | |||||
|
9
|
9
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.25 |
||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
90445-07M02-00 Hose (L167) |
90445-07M02-00 |
US $3.59 |
||
| replacement | |||||
|
10
|
10
90445-07MA3-00 Hose (L200) |
90445-07MA3-00 |
from US $3.83 |
||
|
11
|
11
90445-07M72-00 Hose (L250) |
90445-07M72-00 |
US $4.25 |
||
| replacements | |||||
|
11
|
11
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.25 |
||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
6R3-13183-10-00 Valve, Check |
6R3-13183-10-00 |
from US $35.28 |
||
|
13
|
13
904-4507M-87-00
Hose (L450)
|
904-4507M-87-00 |
— | ||
| replacement | |||||
|
13
|
13
90446-07M48-00 Hose (L450) |
90446-07M48-00 |
from US $3.04 |
||
|
14
|
14
90464-07M06-00 Clamp |
90464-07M06-00 |
from US $2.41 |
||
|
15
|
15
90468-07M02-00 Clip |
90468-07M02-00 |
from US $2.41 |
||
|
16
|
16
6R3-11537-00-00 Gear, Driven |
6R3-11537-00-00 |
from US $66.22 |
||
|
17
|
17
6R3-13117-00-00 Collar, Distance |
6R3-13117-00-00 |
from US $27.34 |
||
|
18
|
18
93210-13595-00 O-Ring (25H) |
93210-13595-00 |
from US $3.12 |
||
| replacement | |||||
|
18
|
18
93210-13M04-00 O-Ring |
93210-13M04-00 |
from US $3.02 |
||
|
19
|
19
90202-08M44-00 Washer, Plate |
90202-08M44-00 |
US $12.89 |
||
|
20
|
20
6R3-41241-00-00 Rod, Link |
6R3-41241-00-00 |
from US $20.40 |
||
|
21
|
21
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
22
|
22
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
23
|
23
6R5-41237-00-00 Joint, Link |
6R5-41237-00-00 |
from US $7.76 |
||
|
24
|
24
90468-05M03-00 Clip |
90468-05M03-00 |
from US $1.84 |
||
|
25
|
25
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
26
|
26
6R3-11536-00-00 Gear, Drive |
6R3-11536-00-00 |
from US $192.89 |
||
|
27
|
27
6E5-14276-01-00 Lever |
6E5-14276-01-00 |
from US $11.95 |
||
|
28
|
28
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2.36 |
||
