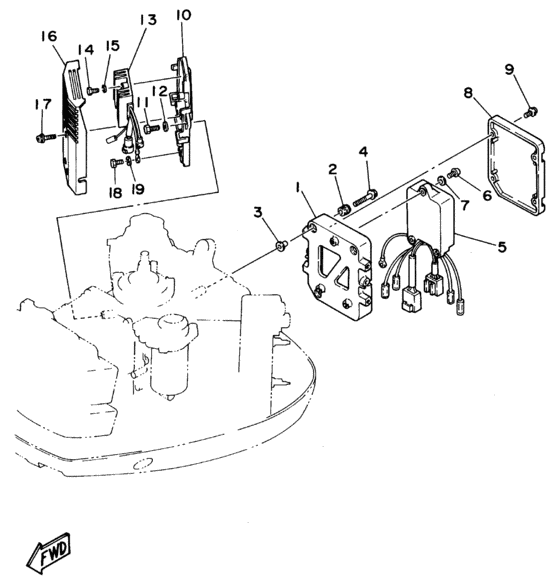

Electrical Diagram Yamaha L130 TL/XLR
- Year
- 1996
- Model
- L130
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6N7-85542-00-8D Bracket |
6N7-85542-00-8D |
from US $97 |
||
| replacements | |||||
|
1
|
1
6N7-85542-01-8D Bracket |
6N7-85542-01-8D |
US $127.11 |
||
|
1
|
1
6N7-85542-01-1S Bracket |
6N7-85542-01-1S |
from US $85.66 |
||
|
2
|
2
6A0-82317-00-00 Damper, Ignition Coil |
6A0-82317-00-00 |
from US $4.53 |
||
| replacement | |||||
|
2
|
2
6A0-82317-01-00 DAMPER IGNITION COIL |
6A0-82317-01-00 |
from US $2.36 |
||
|
3
|
3
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
3
|
3
90387-06119-00 Collar |
90387-06119-00 |
from US $3.26 |
||
|
4
|
4
90119-06M59-00 Bolt, With Washer |
90119-06M59-00 |
US $2.83 |
||
| replacement | |||||
|
4
|
4
901-19062-89-00 BOLT WITH WASHER |
901-19062-89-00 |
from US $2.70 |
||
|
5
|
5
6N7-85540-00-00 C.d.i. Unit Assembly |
6N7-85540-00-00 |
US $1,026.96 |
||
| replacement | |||||
|
5
|
5
6N7-85540-01-00 C.d.i. Unit Assy |
6N7-85540-01-00 |
from US $1,026.96 |
||
|
6
|
6
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
8
|
8
6N7-85537-00-00 Cover |
6N7-85537-00-00 |
from US $37.30 |
||
|
9
|
9
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
10
|
10
6N7-81948-00-94 Bracket |
6N7-81948-00-94 |
from US $37.30 |
||
|
11
|
11
97095-06016-00 Bolt |
97095-06016-00 |
US $1.39 |
||
| replacement | |||||
|
11
|
11
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.39 |
||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
13
|
13
6R3-81960-10-00 Rectifier & Regulator Assy |
6R3-81960-10-00 |
from US $235.82 |
||
|
14
|
14
970-95060-25-00
Bolt
|
970-95060-25-00 |
— | ||
| replacement | |||||
|
14
|
14
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
16
|
16
6R3-81942-00-00 Cover |
6R3-81942-00-00 |
from US $30.60 |
||
|
17
|
17
90159-06M08-00 Screw, With Washer |
90159-06M08-00 |
from US $2.91 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
