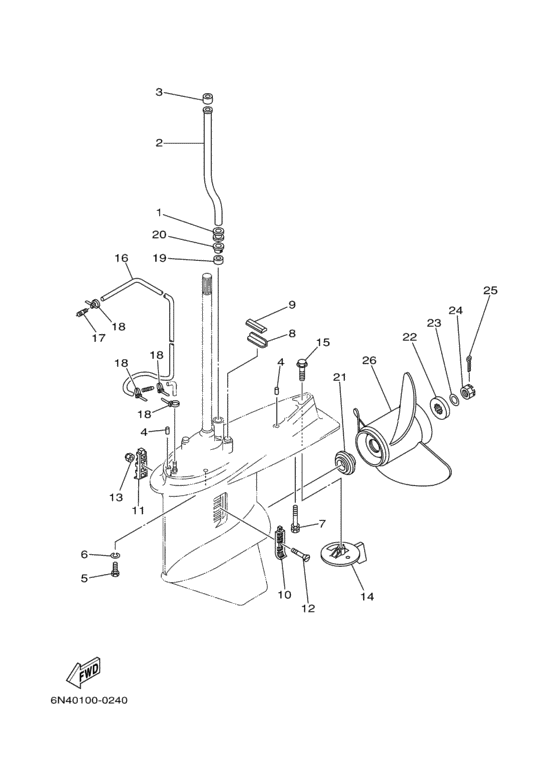

Lower casing drive Diagram Yamaha L130 TL/XLR
- Year
- 2000
- Model
- L130
- Year
- 2000
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 130
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6E5-44366-00-00 Damper, Water Seal 2 |
6E5-44366-00-00 |
US $5.55 |
||
|
2
|
2
6E5-44361-20-00 Tube, Water 1 |
6E5-44361-20-00 |
from US $47.39 |
||
|
3
|
3
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
3
|
3
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.93 |
||
|
4
|
4
93608-12M05-00 Pin, Dowel |
93608-12M05-00 |
from US $2.02 |
||
|
5
|
5
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
6
|
6
92995-10100-00 Washer |
92995-10100-00 |
from US $1.66 |
||
| replacement | |||||
|
6
|
6
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
7
|
7
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
| replacement | |||||
|
7
|
7
901-19100-71-00 BOLT WITH WASHER |
901-19100-71-00 |
from US $7.70 |
||
|
8
|
8
663-45376-00-94
Guide, Seal Damper
|
663-45376-00-94 |
— | ||
| replacement | |||||
|
8
|
8
663-45376-00-00 Guide, Seal Damper |
663-45376-00-00 |
from US $5.82 |
||
|
9
|
9
688-45375-00-00 Damper, Seal |
688-45375-00-00 |
from US $6.66 |
||
|
10
|
10
688-45214-02-00 Cover, Water Inlet 1 |
688-45214-02-00 |
from US $9.78 |
||
|
11
|
11
688-45215-02-00 Cover, Water Inlet 2 |
688-45215-02-00 |
from US $8.42 |
||
|
12
|
12
90152-05M07-00 Screw, Countersunk |
90152-05M07-00 |
from US $3.26 |
||
|
13
|
13
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
13
|
13
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
14
|
14
6L6-45371-00-00 Tab-Trim |
6L6-45371-00-00 |
from US $30.46 |
||
|
15
|
15
90105-10M00-00 Bolt, Flange |
90105-10M00-00 |
from US $6.40 |
||
|
16
|
16
90445-07MF0-00 Hose (L1030) |
90445-07MF0-00 |
US $27.06 |
||
| replacement | |||||
|
16
|
16
904-4507M-21-00 Hose (L1160) |
904-4507M-21-00 |
from US $16 |
||
|
17
|
17
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
18
|
18
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
18
|
18
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
18
|
18
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
19
|
19
6E5-44365-00-00
Damper, Water Seal 1
|
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
19
|
19
6E5-44365-01-00 DAMPER, WATER SEAL 1 |
6E5-44365-01-00 |
from US $2.93 |
||
|
20
|
20
6E5-44312-00-00 Cover, Water Pump Housing |
6E5-44312-00-00 |
from US $2.70 |
||
|
21
|
21
6E5-45987-01-00 Spacer 1 |
6E5-45987-01-00 |
US $97.26 |
||
| replacement | |||||
|
21
|
21
63P-45987-00-00 Spacer 1 |
63P-45987-00-00 |
from US $69.77 |
||
|
22
|
22
688-45997-01-00 Spacer 2 |
688-45997-01-00 |
from US $27.28 |
||
|
23
|
23
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
24
|
24
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.46 |
||
|
25
|
25
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
26
|
26
6L6-45930-01-98 Propeller Assy (3X13"x17"-Kl1)3X13"X17"-KL |
6L6-45930-01-98 |
US $872.52 |
||
| replacements | |||||
|
26
|
26
999-99999-99-00
Not Available
3X13"X17"-KL |
999-99999-99-00 |
— | ||
|
26
|
26
6L6-45930-01-00 Propeller (3X13"x17"-Kl)3X13"X17"-KL |
6L6-45930-01-00 |
from US $872.52 |
||
|
26
|
26
6L6-45970-00-98 Propeller (3X13"x19"-Kl)3X13"X19"-KL |
6L6-45970-00-98 |
US $872.52 |
||
| replacement | |||||
|
26
|
26
6L6-45970-00-00 Propeller (3X13"x19"-Kl)3X13"X19"-KL |
6L6-45970-00-00 |
from US $872.52 |
||
|
26
|
26
6L6-45972-00-98 Propeller (3X13"x21"-Kl)3X13"X21"-KL |
6L6-45972-00-98 |
US $872.52 |
||
| replacement | |||||
|
26
|
26
6L6-45972-00-00 Propeller (3X13"x21"-Kl)3X13"X21"-KL |
6L6-45972-00-00 |
from US $763 |
||
